ADORNO

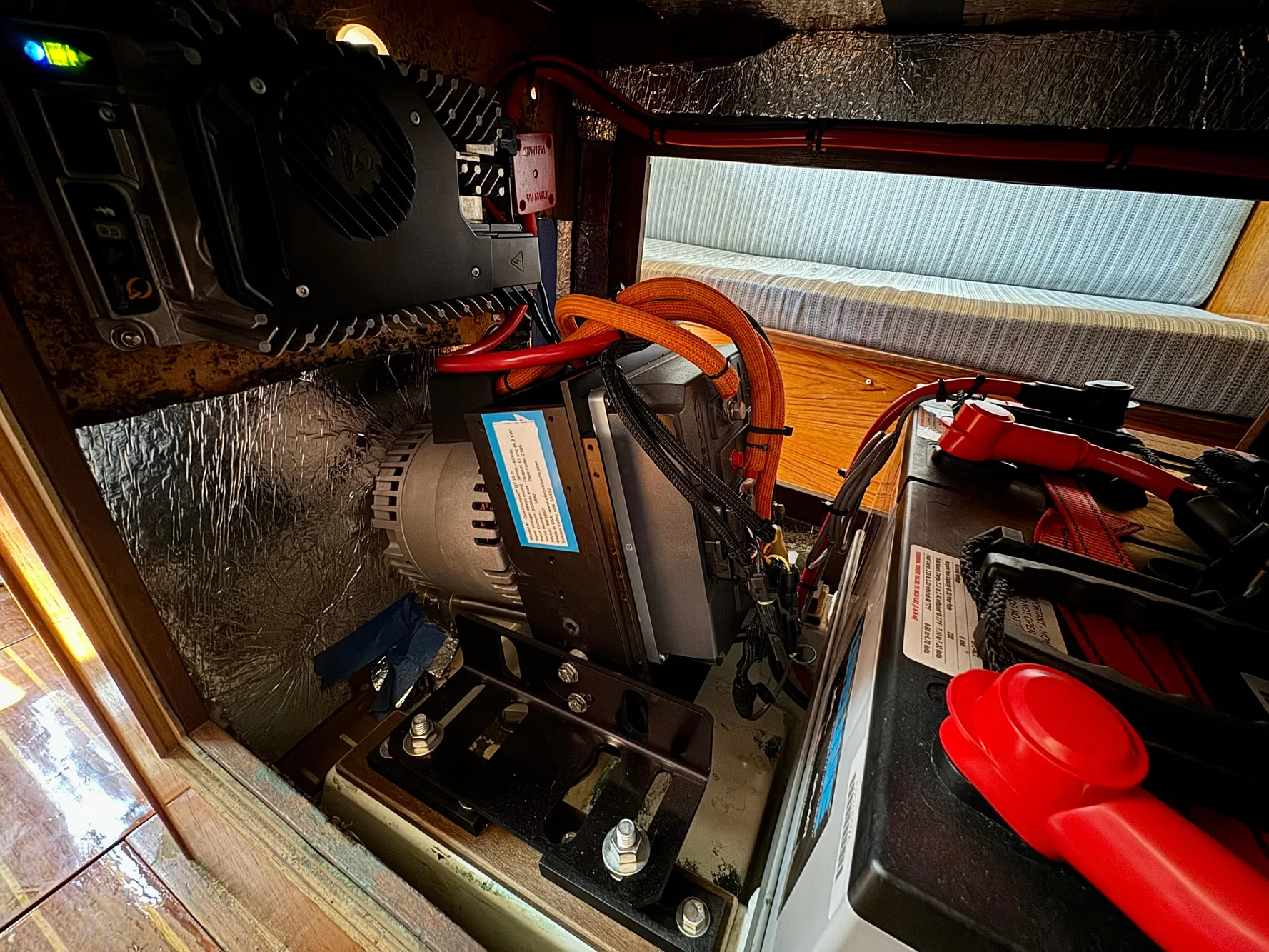

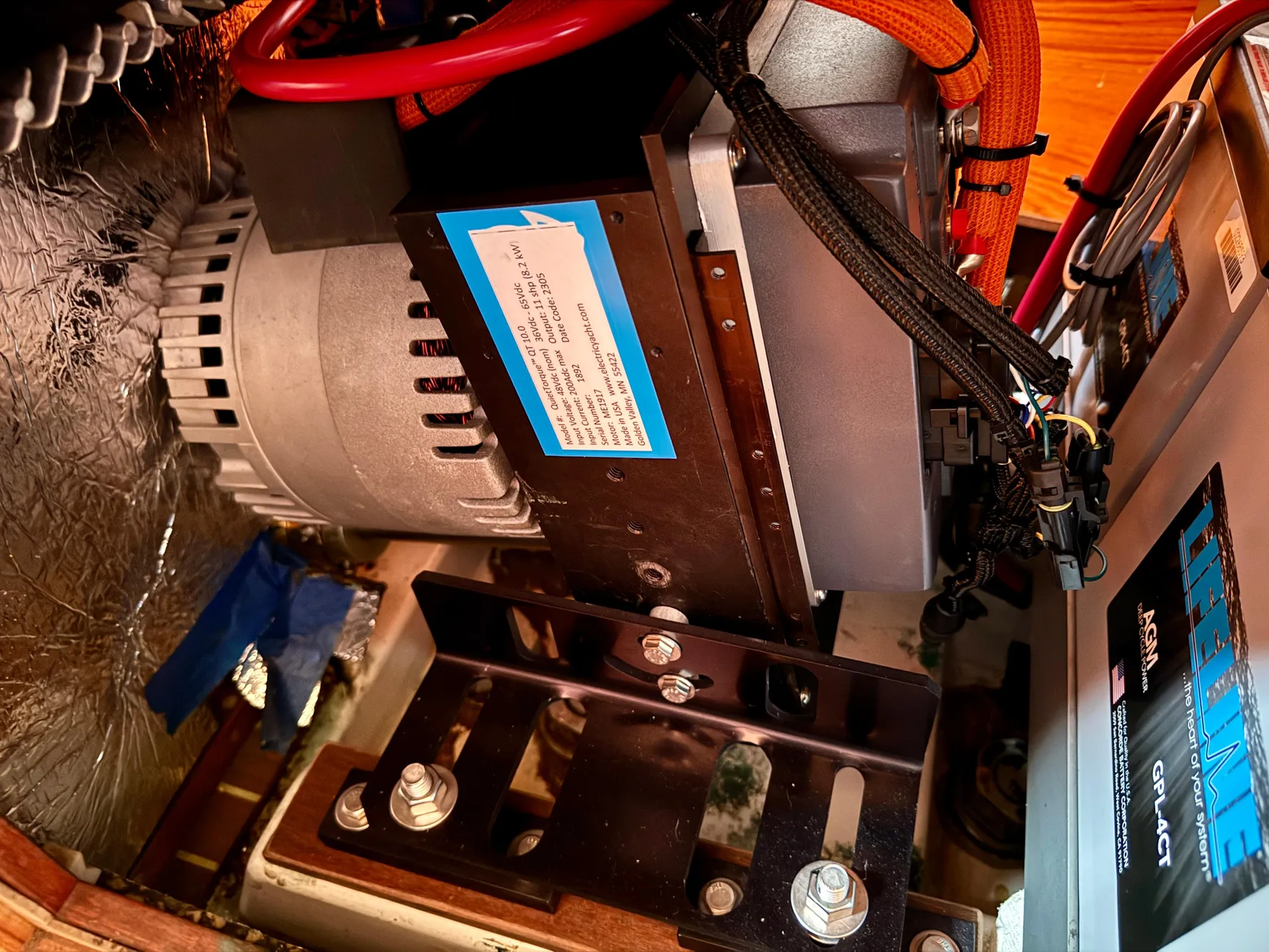

Electric Engine

The QuietTorque™ 10.0 recommended for boats to 34' (LOA) and 12,000lbs displacement. Typically replaces gas or diesel engines in the 15hp - 25hp range. Typical battery size is 200 - 300Ah

Specifications

• Motor type PMAC*
• Voltage 48Vdc nom (36-65Vdc)
• Max. Input Power 10.0 kW (20 min)
• Cont. Input Power 8.0 kW
• Weight 70 lbs (32 kg)
• Anodized Aluminum Frame
• Shaft Stainless Steel

*Permanent Magnet Alternating Current

Standard Features

Motor Mounts - Adjustable Mounts use current engine stringers

Throttle - Stainless Steel waterproof throttle with key switch

System Monitor - Programmable digital display

• State of Charge (SOC)
• Voltage, Current and Power
• Time to Discharge (TTD)
• Programmable for flooded, AGM and Li-ion battery type and size

Shaft Coupler - 4" Hurth/Borg Warner flangePower Switch - Blue Sea battery switchRelay - 500A TE Connectivity vacuum relayFuse - 250A Class-T fuse & holder

Accommodations

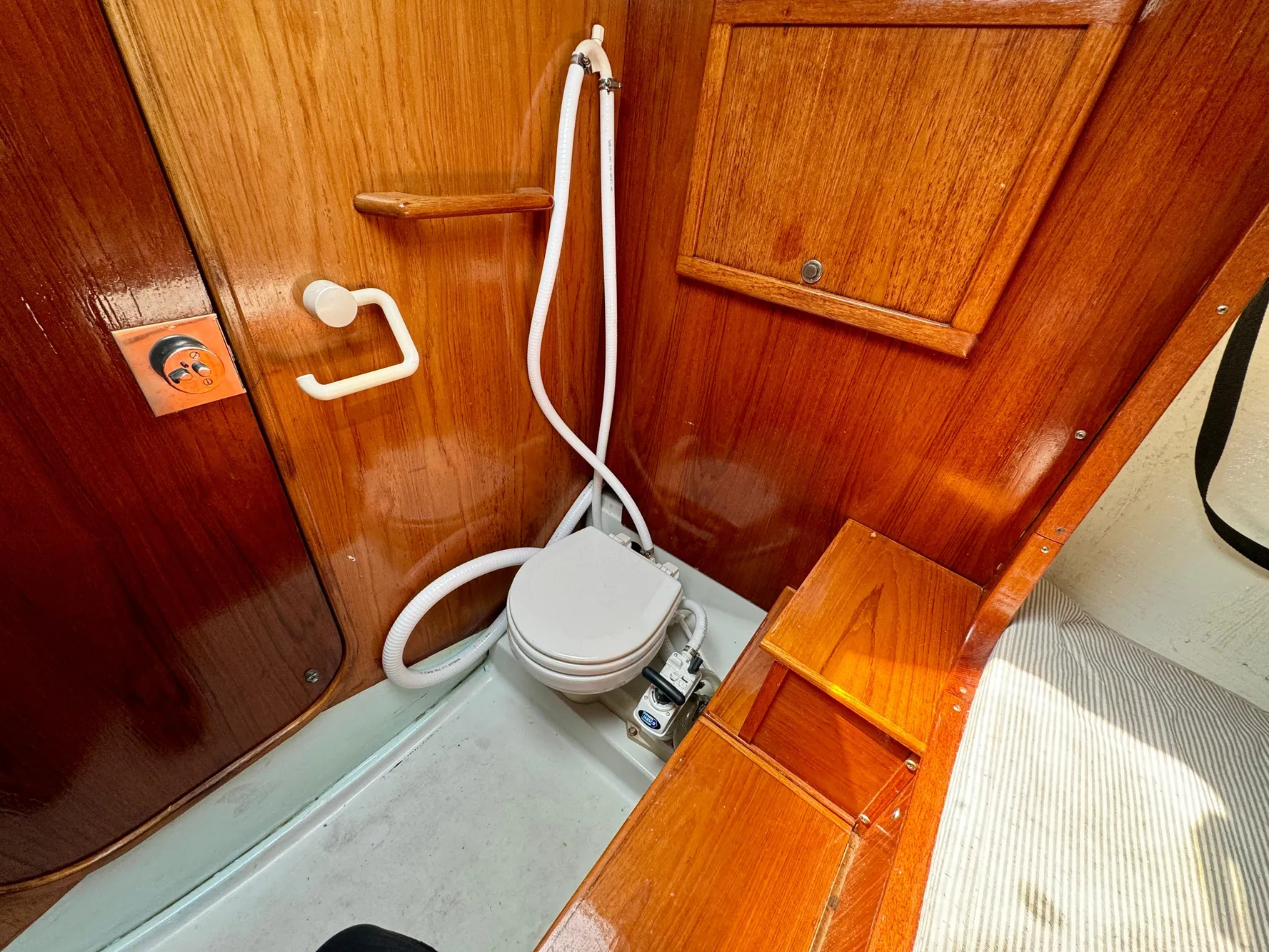

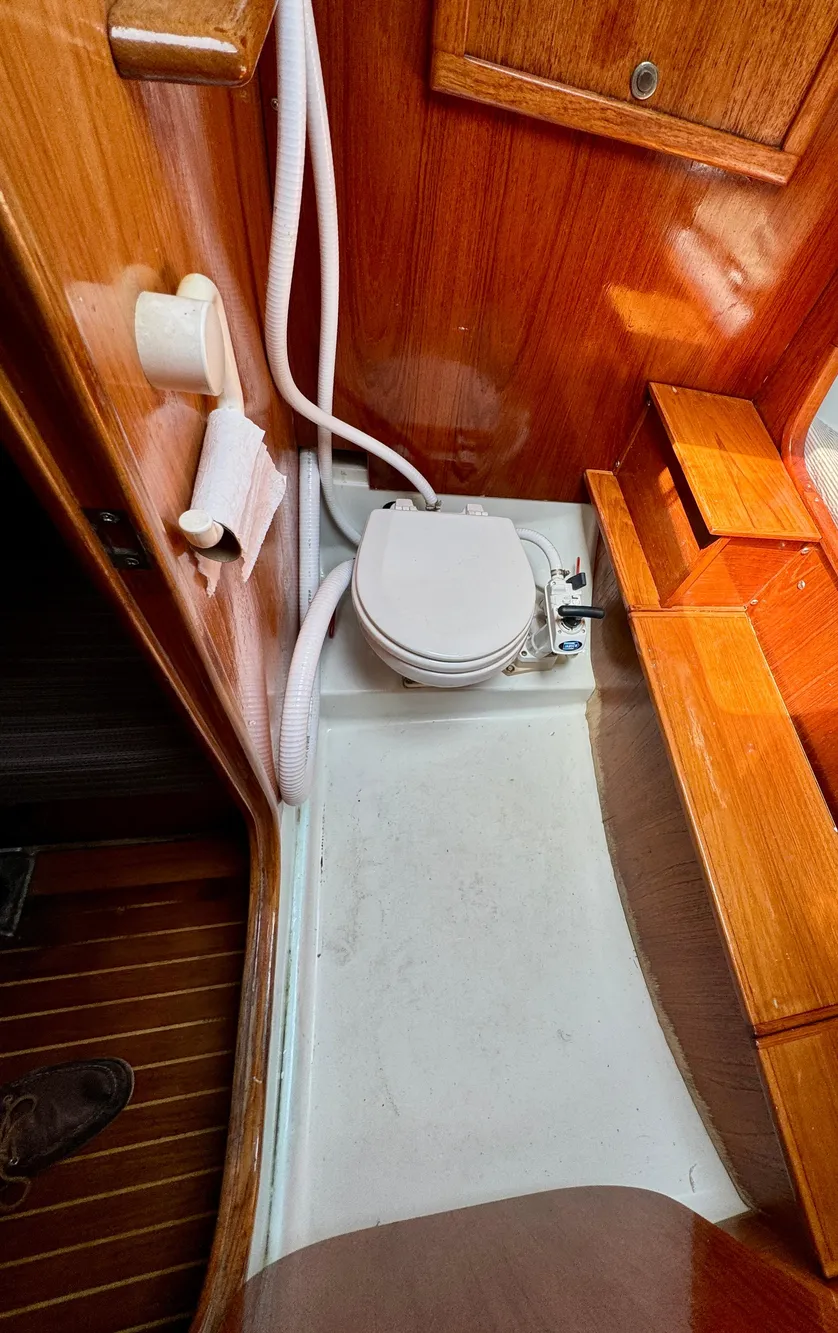

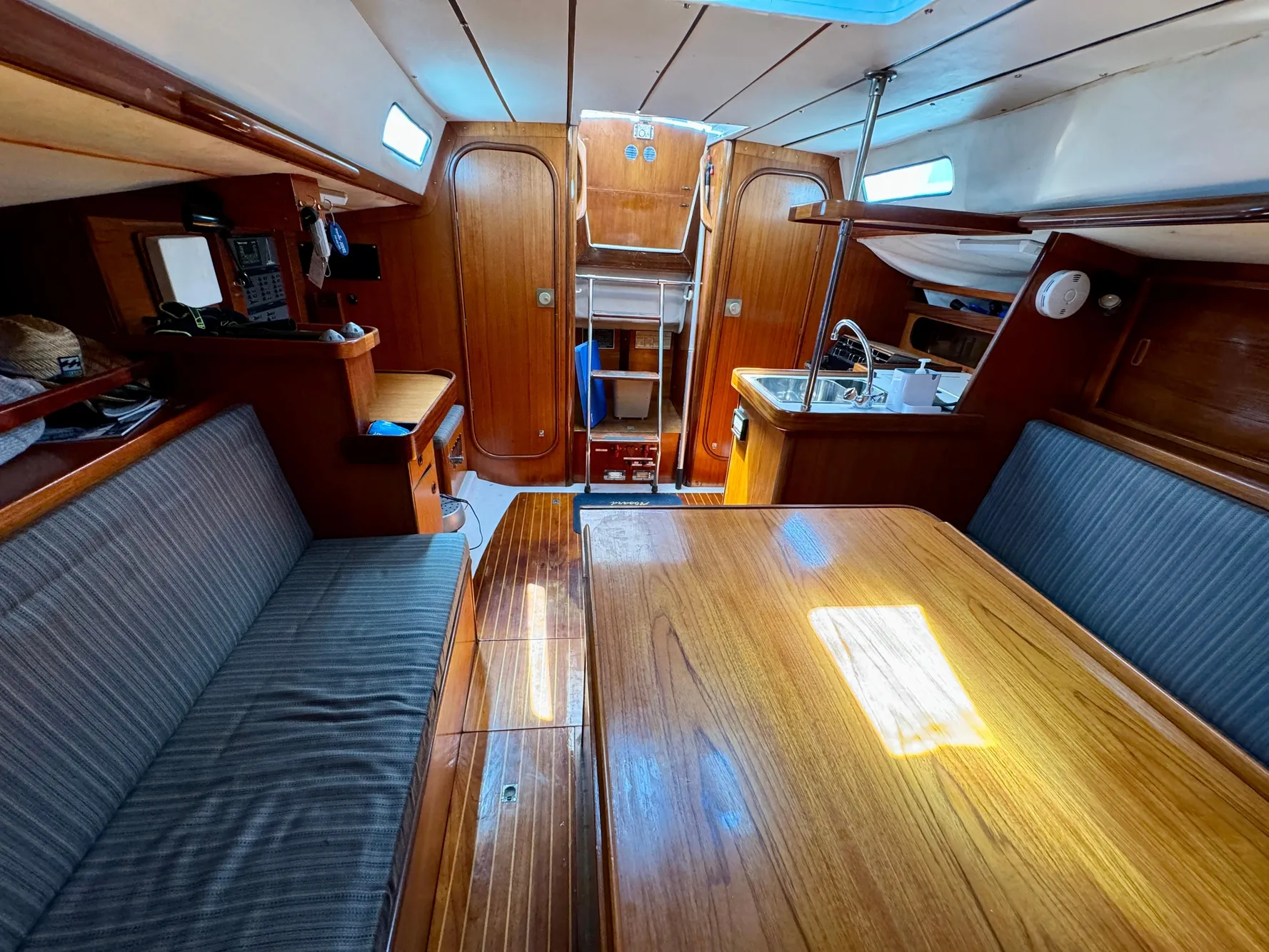

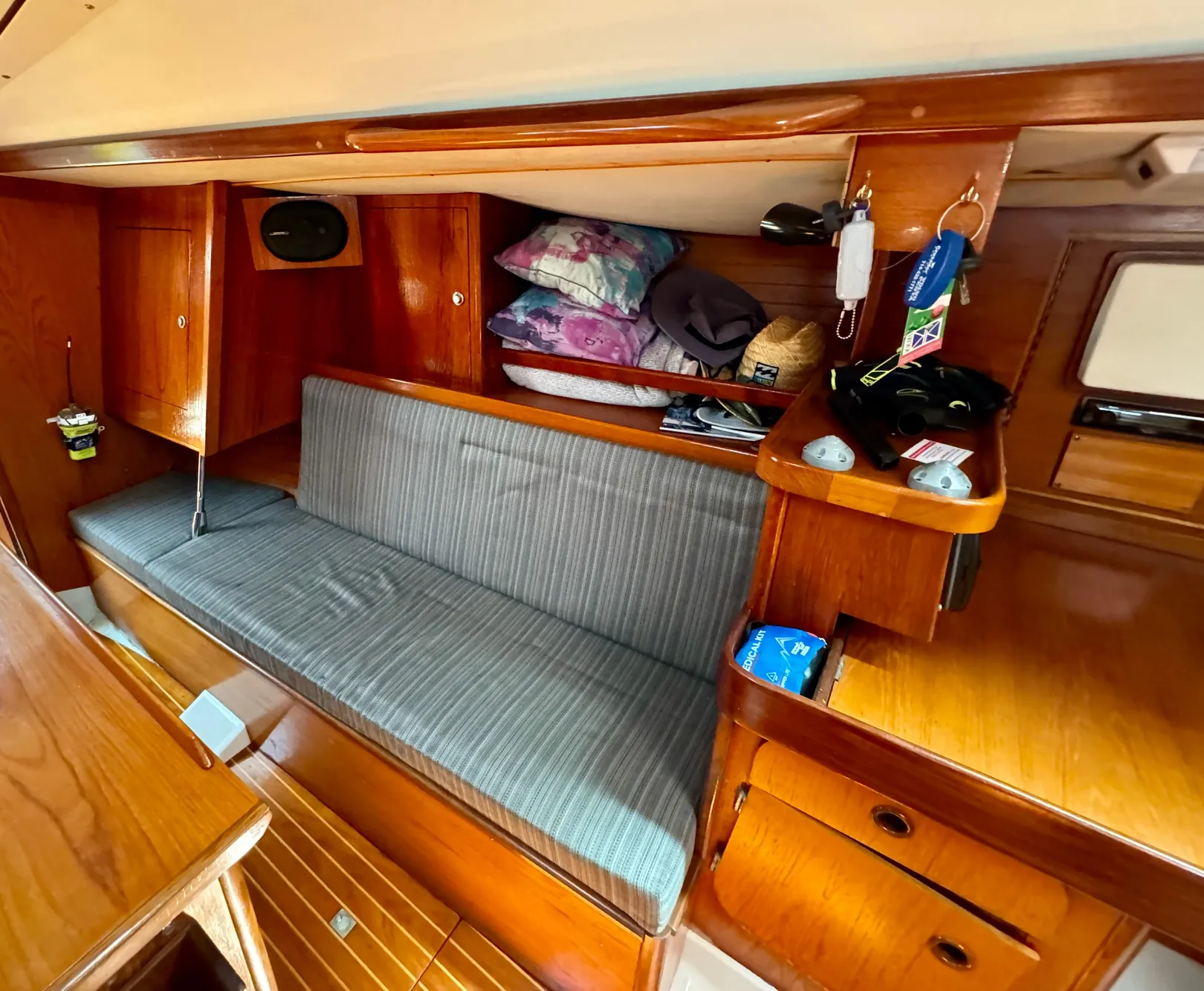

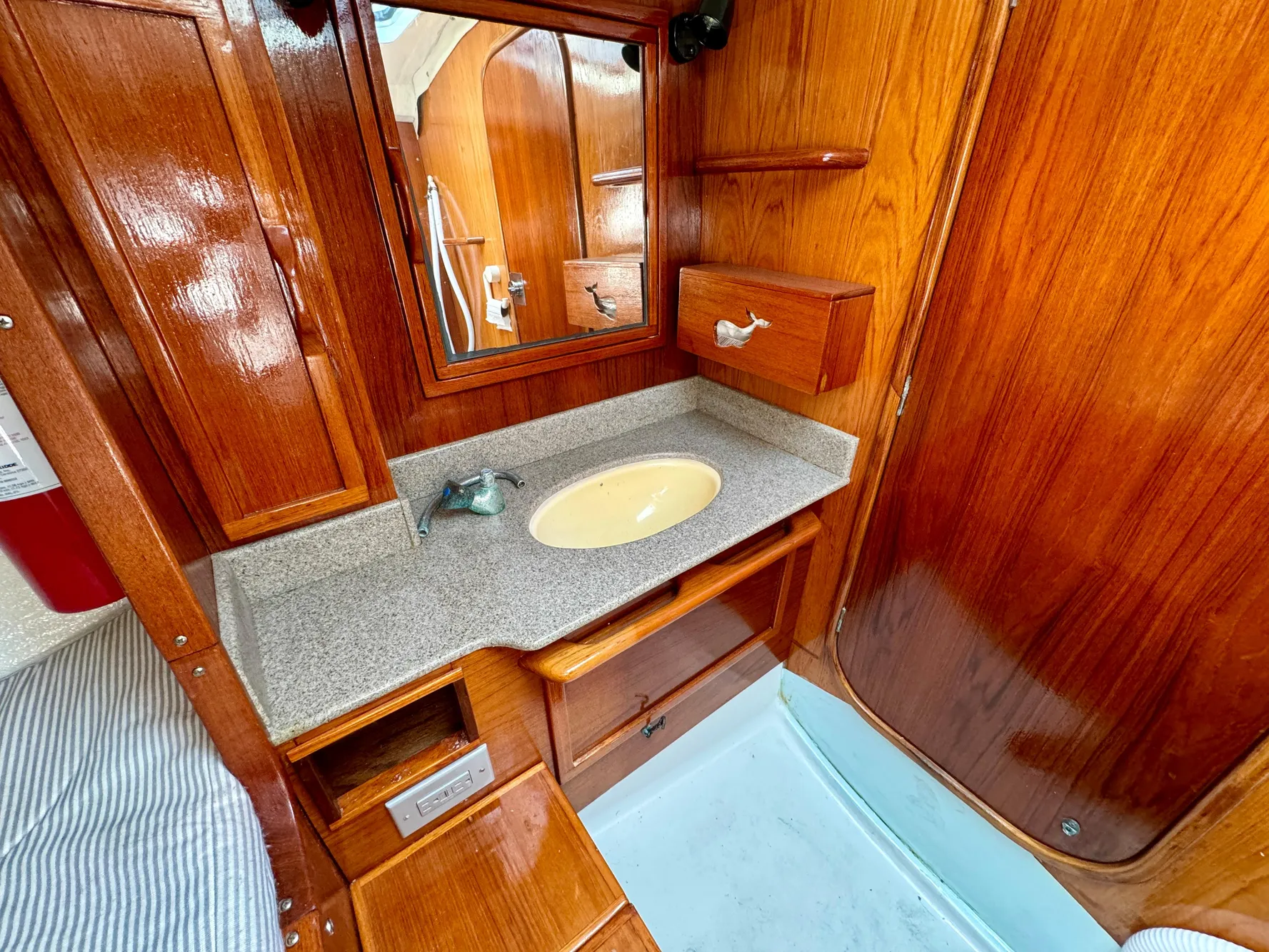

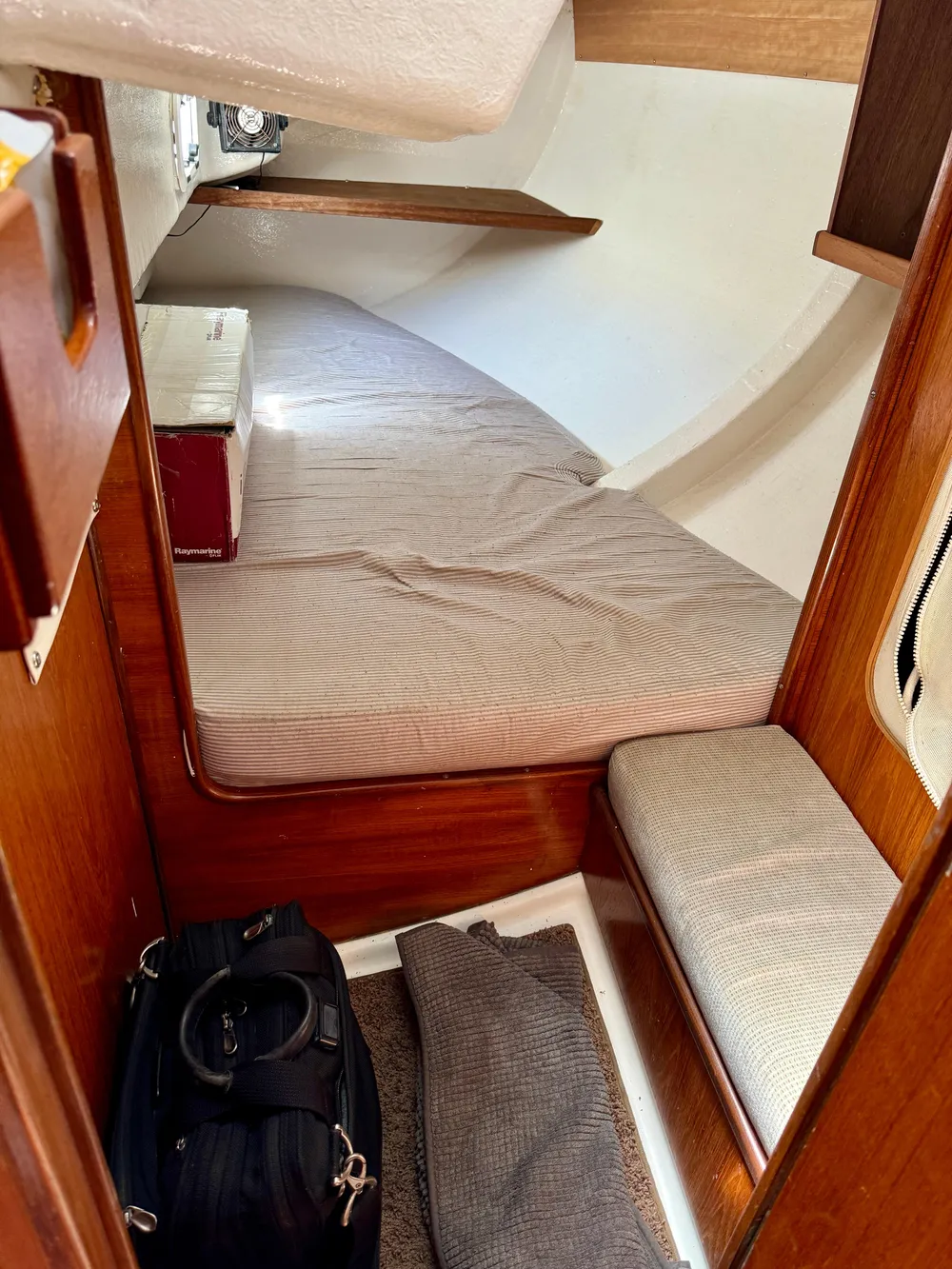

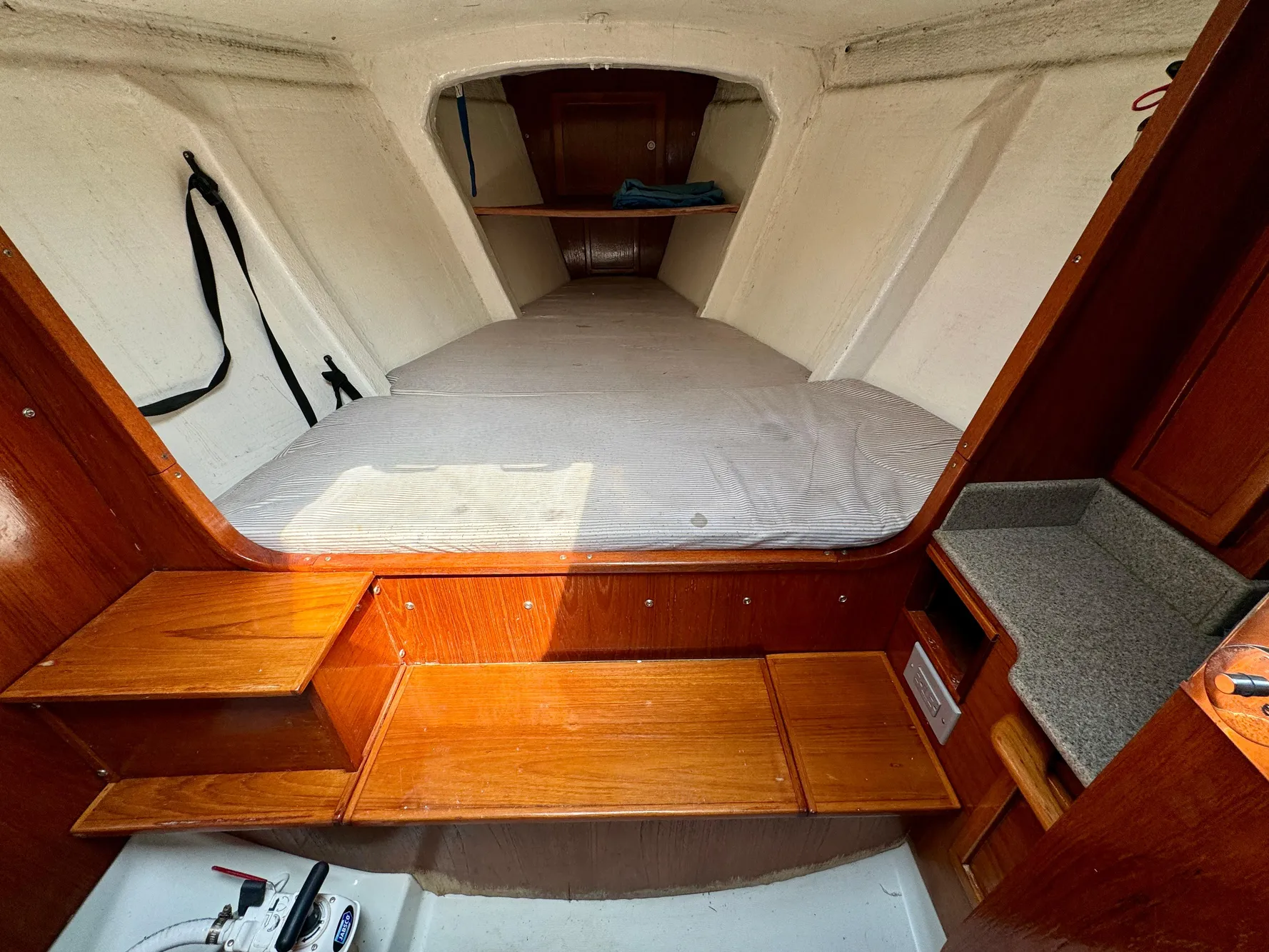

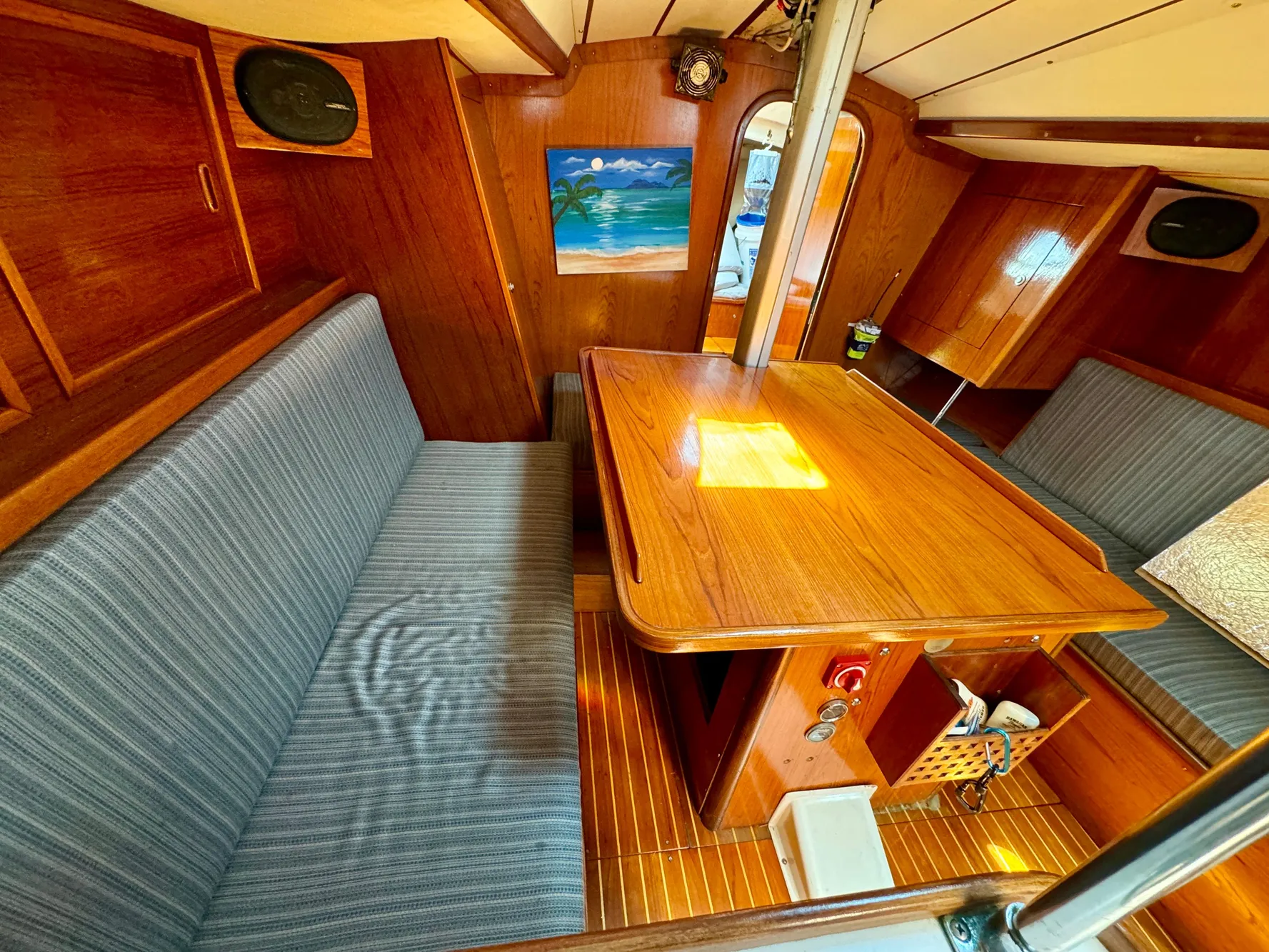

Centerline companionway sets you in a wide open salon with galley to port and In line Nav station to starboard. Aft is 2 double staterooms with fans and ports. Moving forward is a centerline salon table with dinette seating to port. Ajacent to starboard is a lone settee. Forward is "pass through" head to V berth. Manual Jabsco head to port and vanity with sink to starboard.

5'10" headroomAttractive wood interior and custom cabinets StereoInterior LED lighting

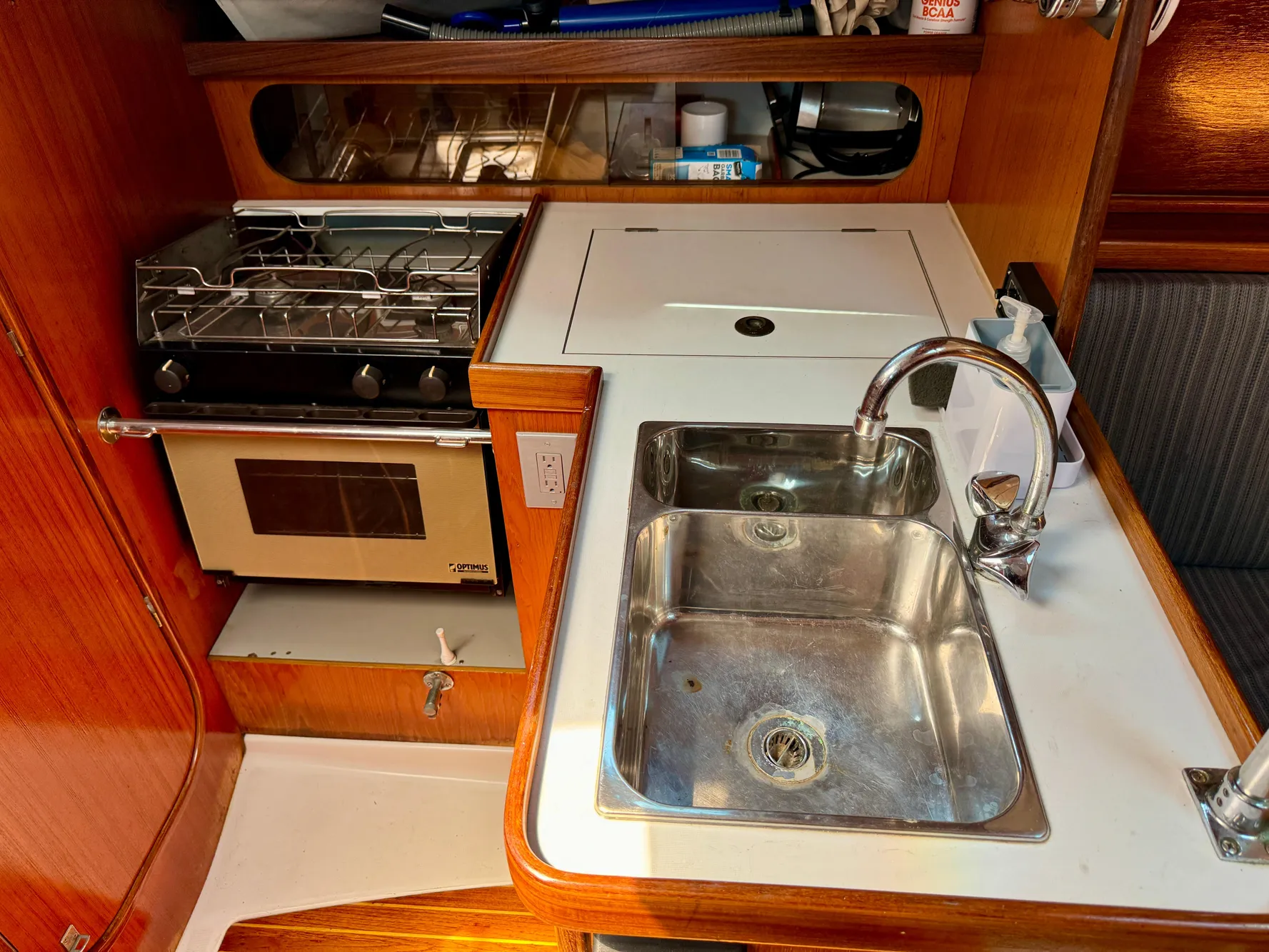

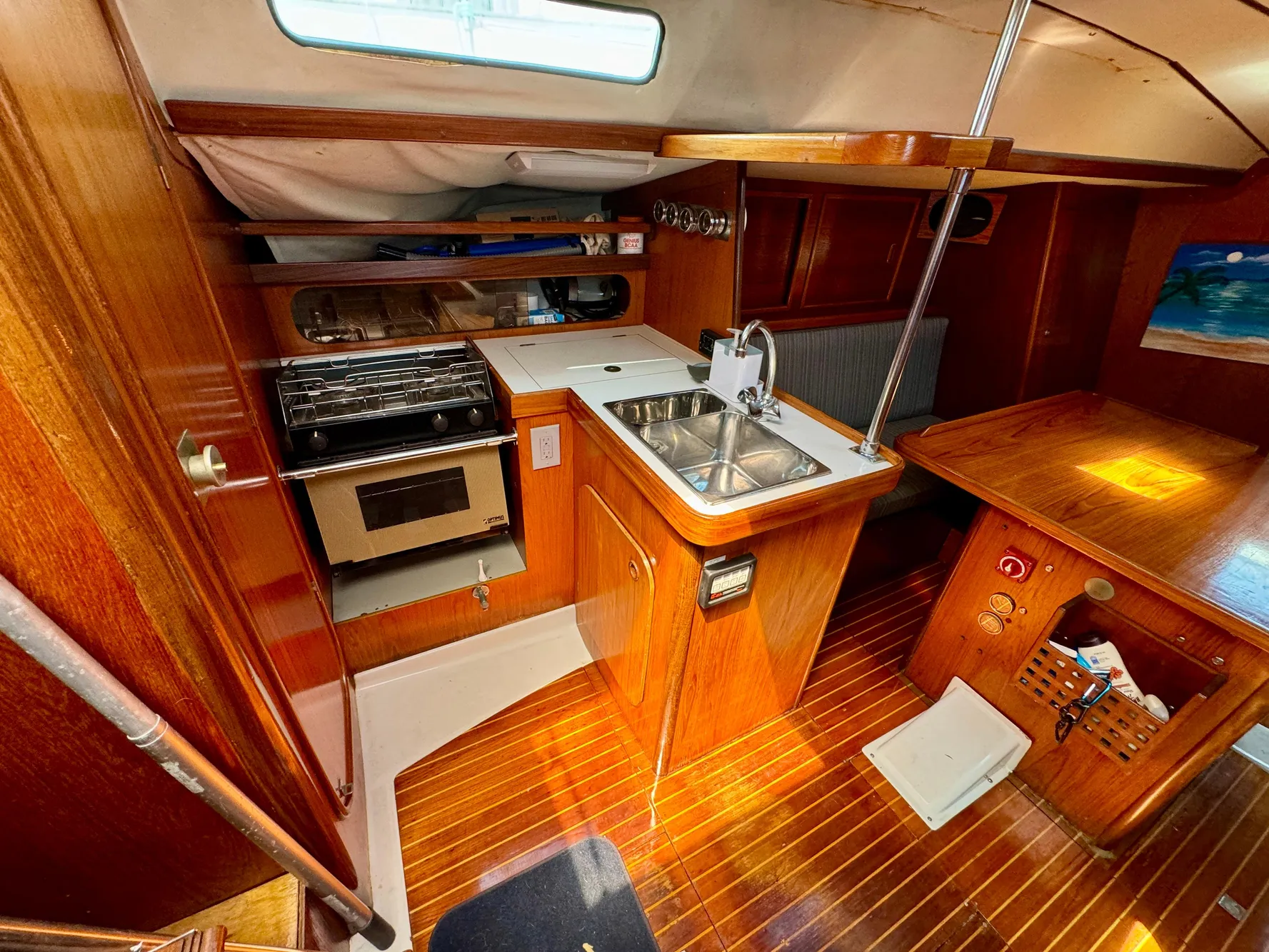

Galley

"L" shaped galley is to port of companionway. Great for working underway or on the hook. Ample storage and working area.

Deep double SS sink with pressure COLD water Isotherm top loading refrigerationOptimas (2) burner gimbaled LPG stove and oven Microwave

Electronics

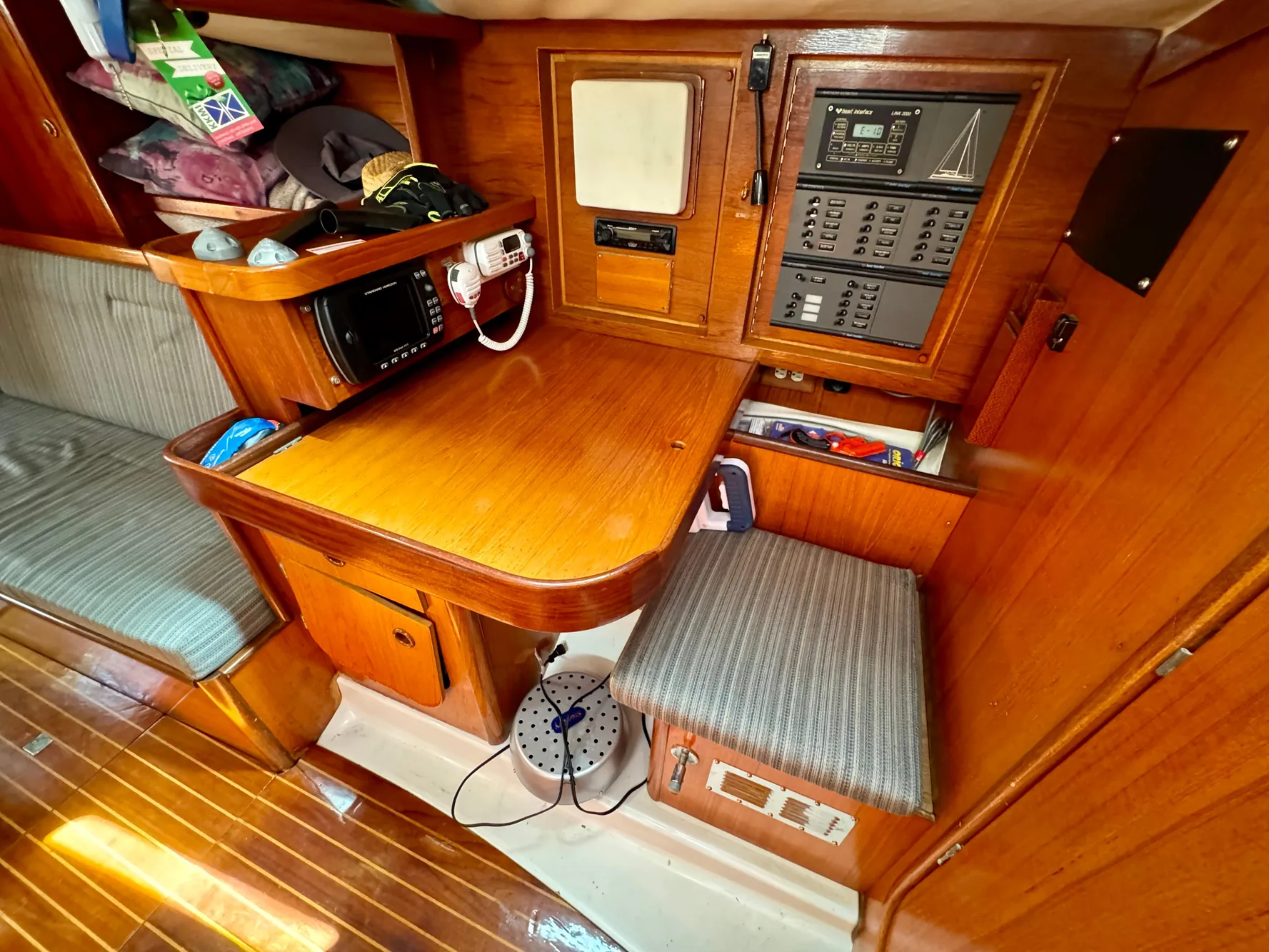

Inline, forward facing Nav Station is just to starboard of companionway. Ample storage for future electronics. 12V / 110V panel at your finger tips.

Autohelm 18" 24 mile Radar - stern pole mounted (unit is at Nav Station) Std Horizon 170C GPS @ Nav StationStd Intrepid GX1260S @ nav station w/ wired hand held at helmStd Horizon 190i GPS at helm

Ritchie Compass WindexRadar ReflectorSony Blue Tooth stereo

Electrical

30 amp shore power

50' power cord

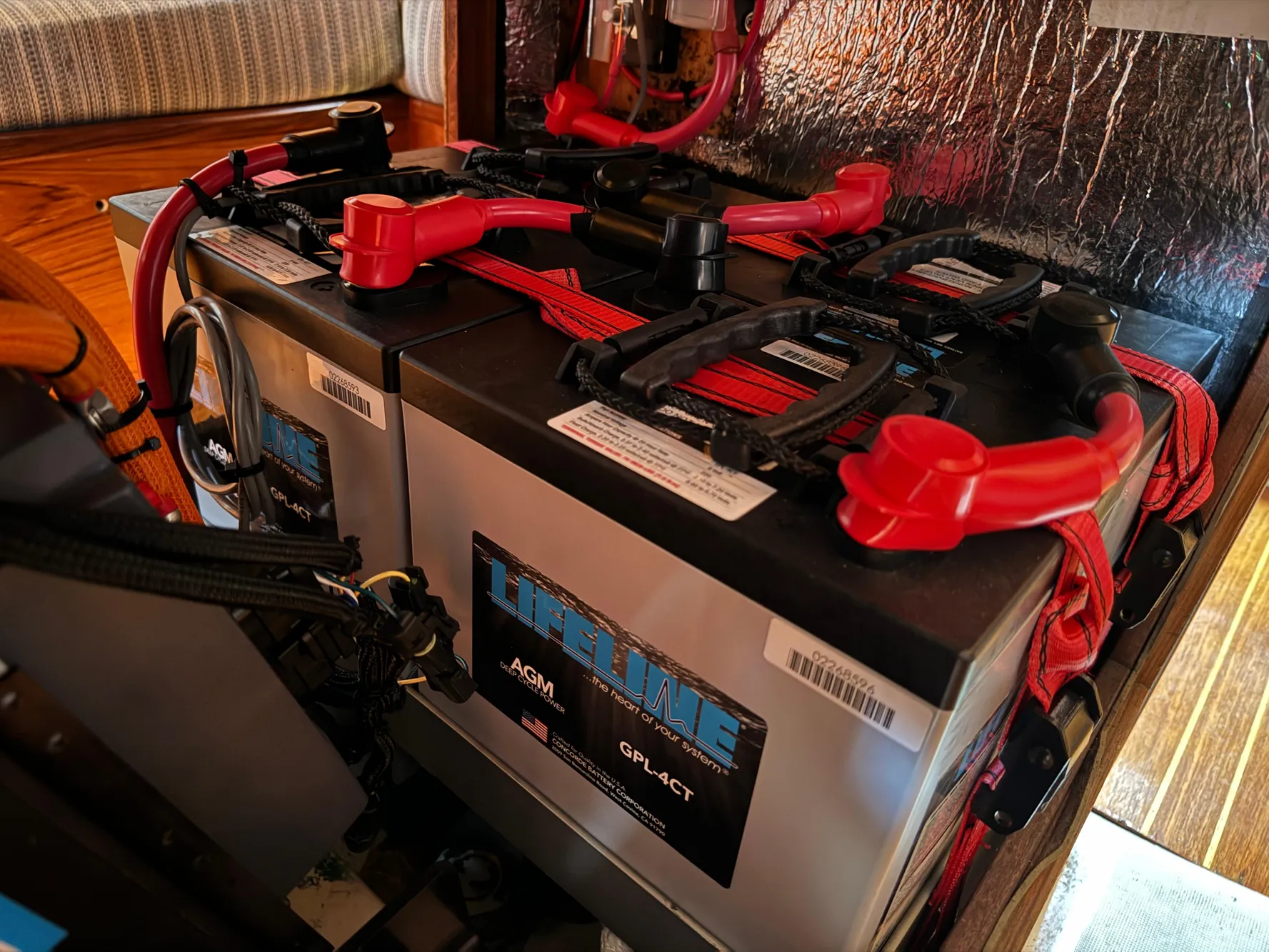

4 LIFELINE AGM 6V Deep Cycle 220 AH Batteries Engine Batteries

2 Group 27 House Batteries

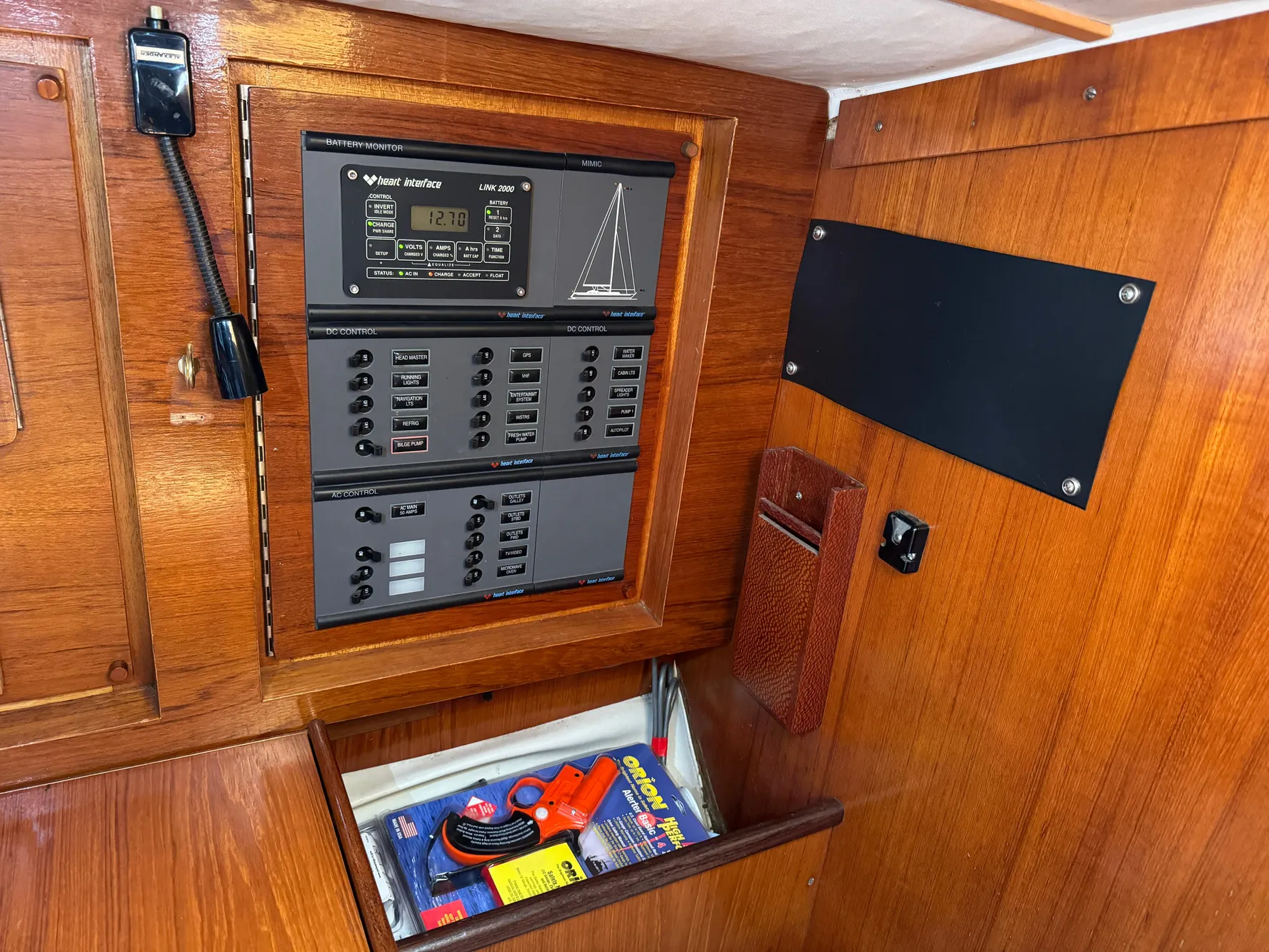

Freedom 20 Heart Interface Charger / Inverter

Heart Link 2000 Interface at Nav Panel

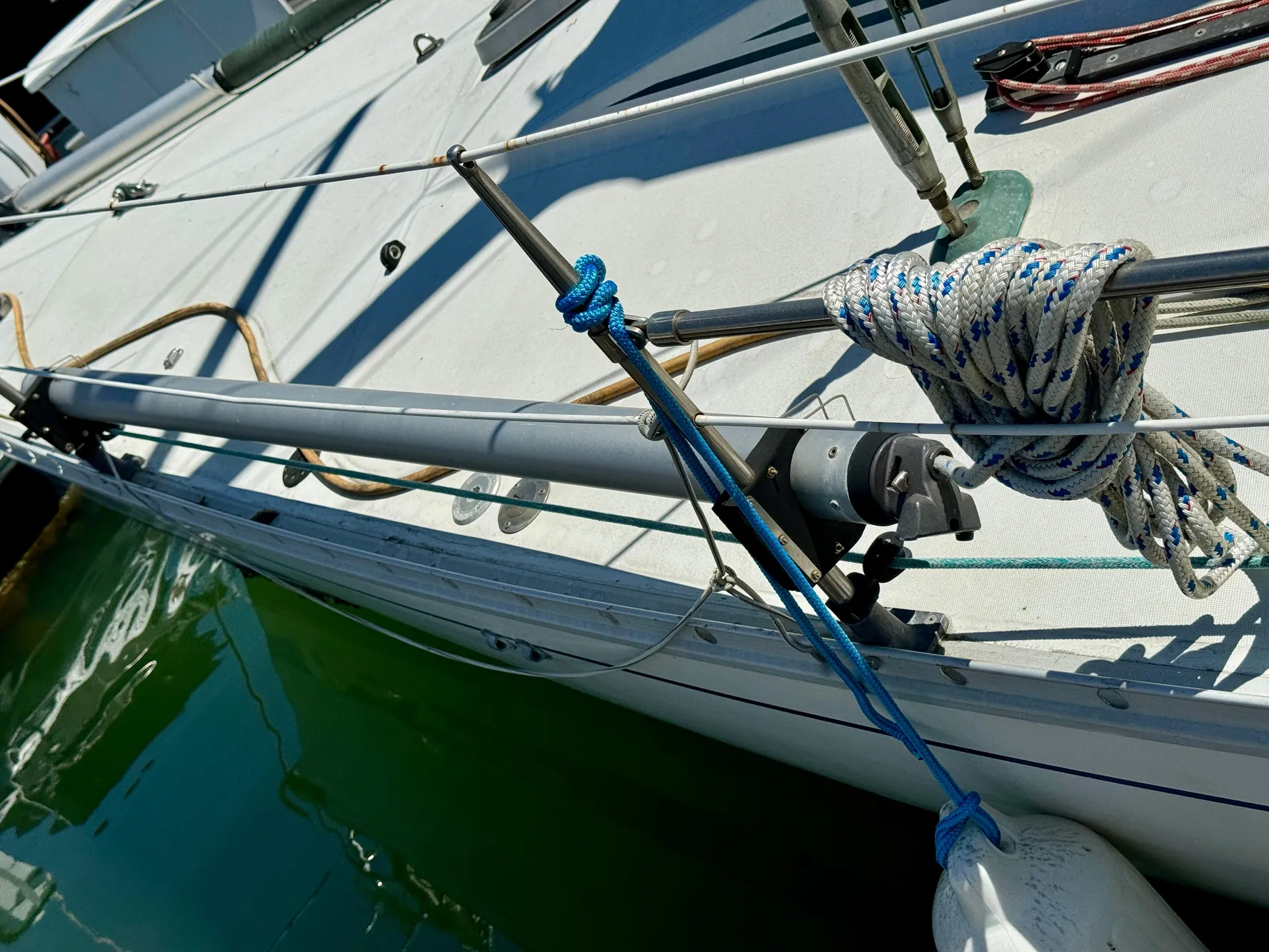

Rigging and Sails

Triple spreader anodized aluminum - keel stepped mast rigRigid boom vangRod rigging (reported replaced 2013 Hansen Rigging / no invoice available) Navtec hydraulic back stayRetractable bow sprintWhisker poleAdjustable jib sheet carsRunning backs(2) Lewmar # 52ST Primaries(4) Lewmar # 43 ST Cabin Top winches(2) Lewmar #10 ST aft cockpit combingTraveler in cockpit - forward of helmDoyle 2-reef pt Main135% Sobstad furling jibNautos furling head systemRemovable inner head stayHank on Stay sail Doyle 60%

Hull and Deck

Hand laid alternting layers of fiberglass matt w/ polyester resinLead FIN keel w/ bulb (6'11")Spade rudderHull to Deck : Shoe box style w/ steel fasterner on 6" centers w/ reinforced plastic bonding Raked bow

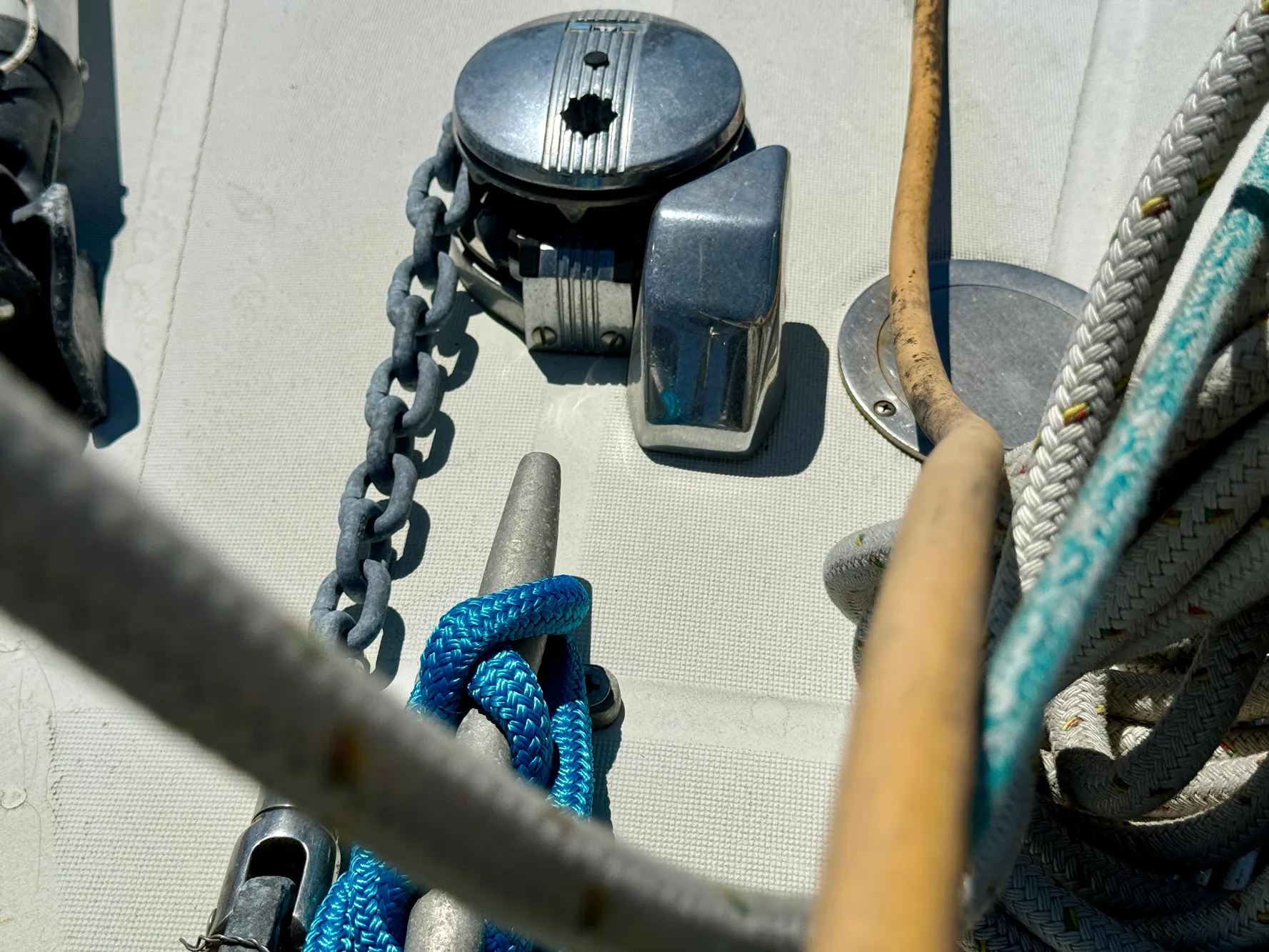

Raised trunk cabin forward of cockpit w/ fixed windows and portlights Decking: Fiberglass reinforced plastic over cored materialDouble high bow and stern pulpits1" SS tapered stanchions (tapered at top) / bolted to weather deckDouble high life lines bow to stern with boarding gates mid ship starboard side Simpson Lawrence MANUAL Windlass w/ single bow roller

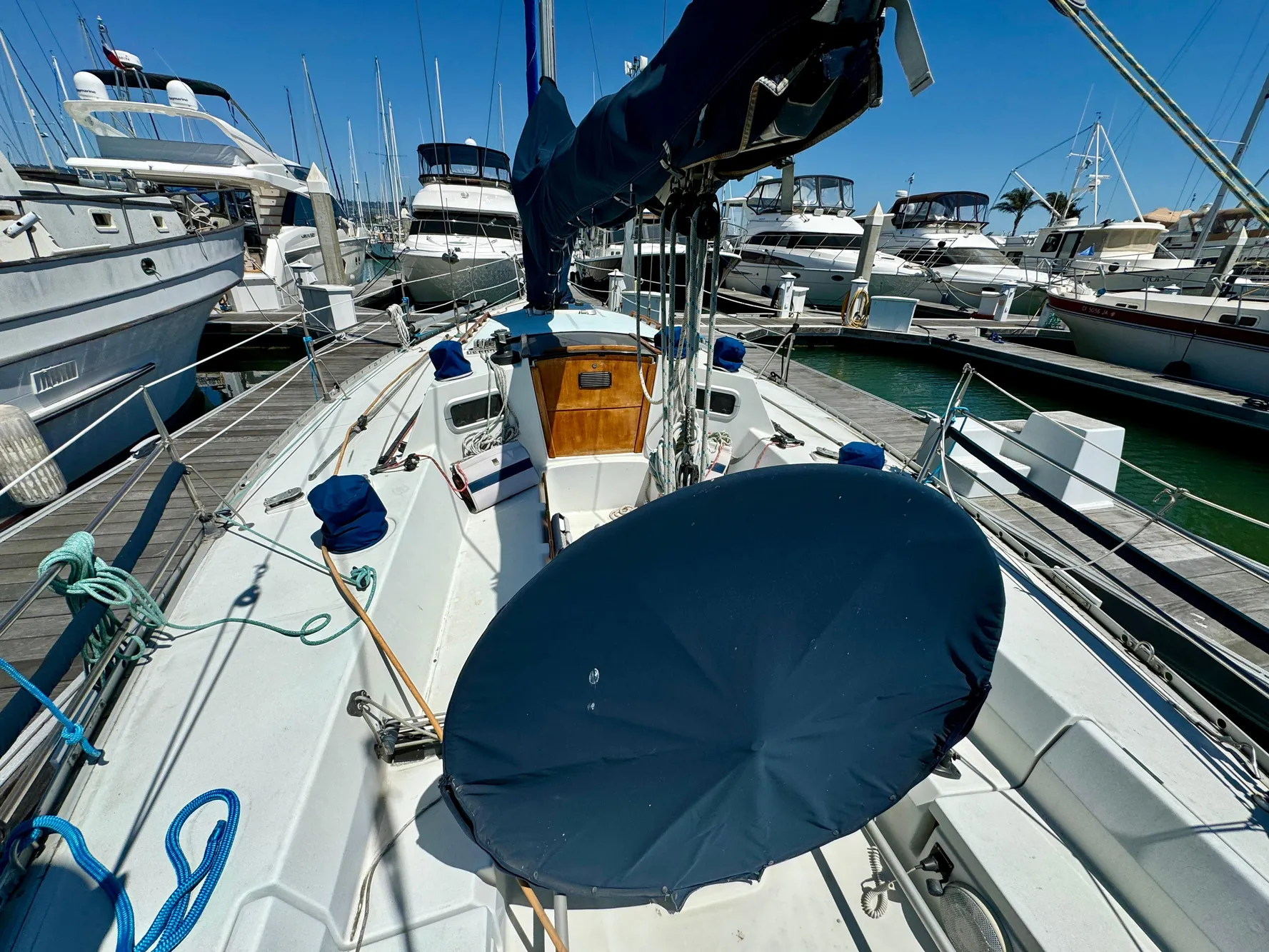

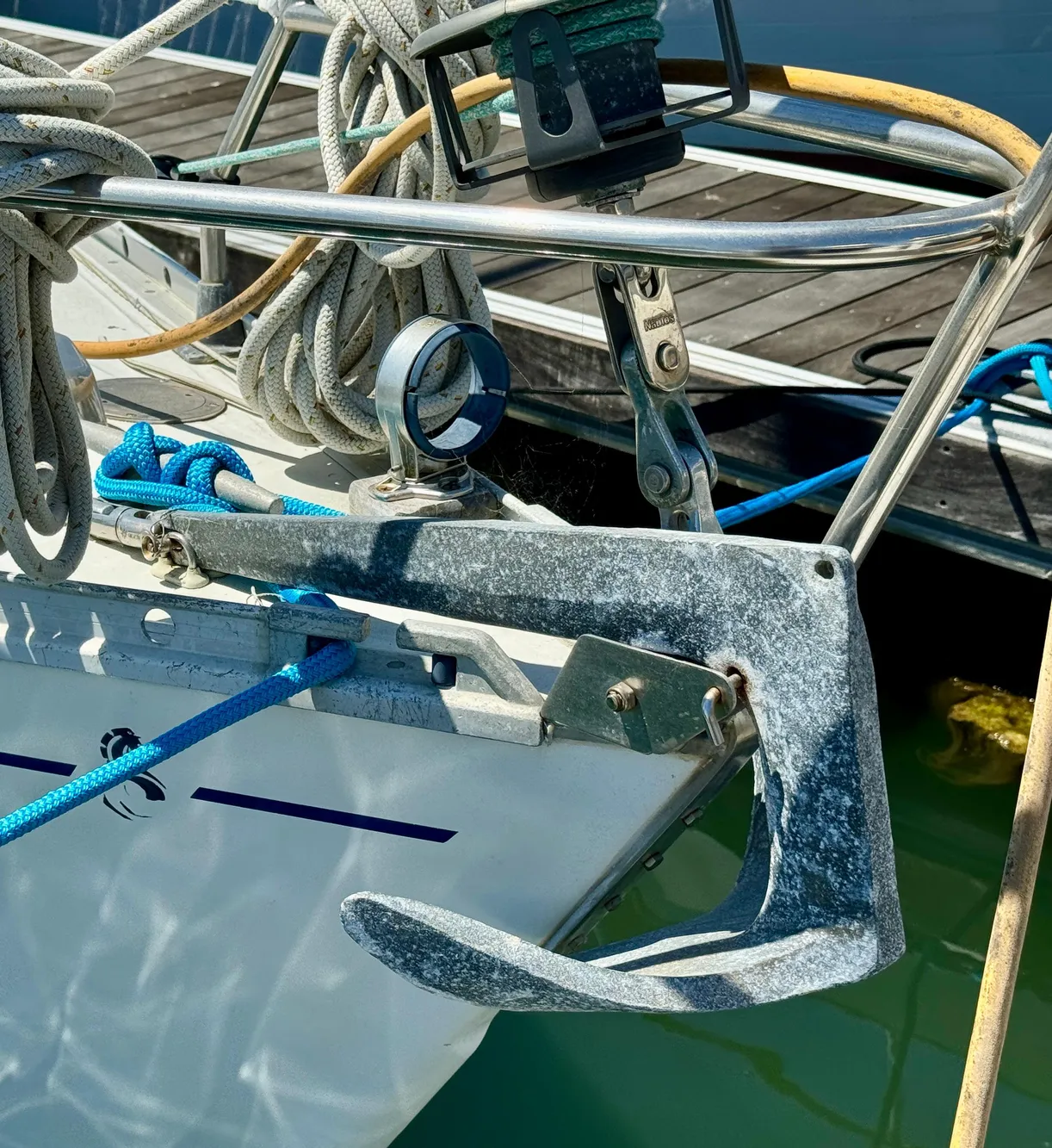

Bruce 30# Anchor / 50' 5/16" HT chain / 200' rode Large open cockpit with center line helmTraveler just forward of helmLarge center helm wheel

Life SlingBottom Paint 2021

Additional Equipment

Sail-O-Mat 601 Self-steering windave w/ mount (not installed)

PUR Survivor 403 Watermaker

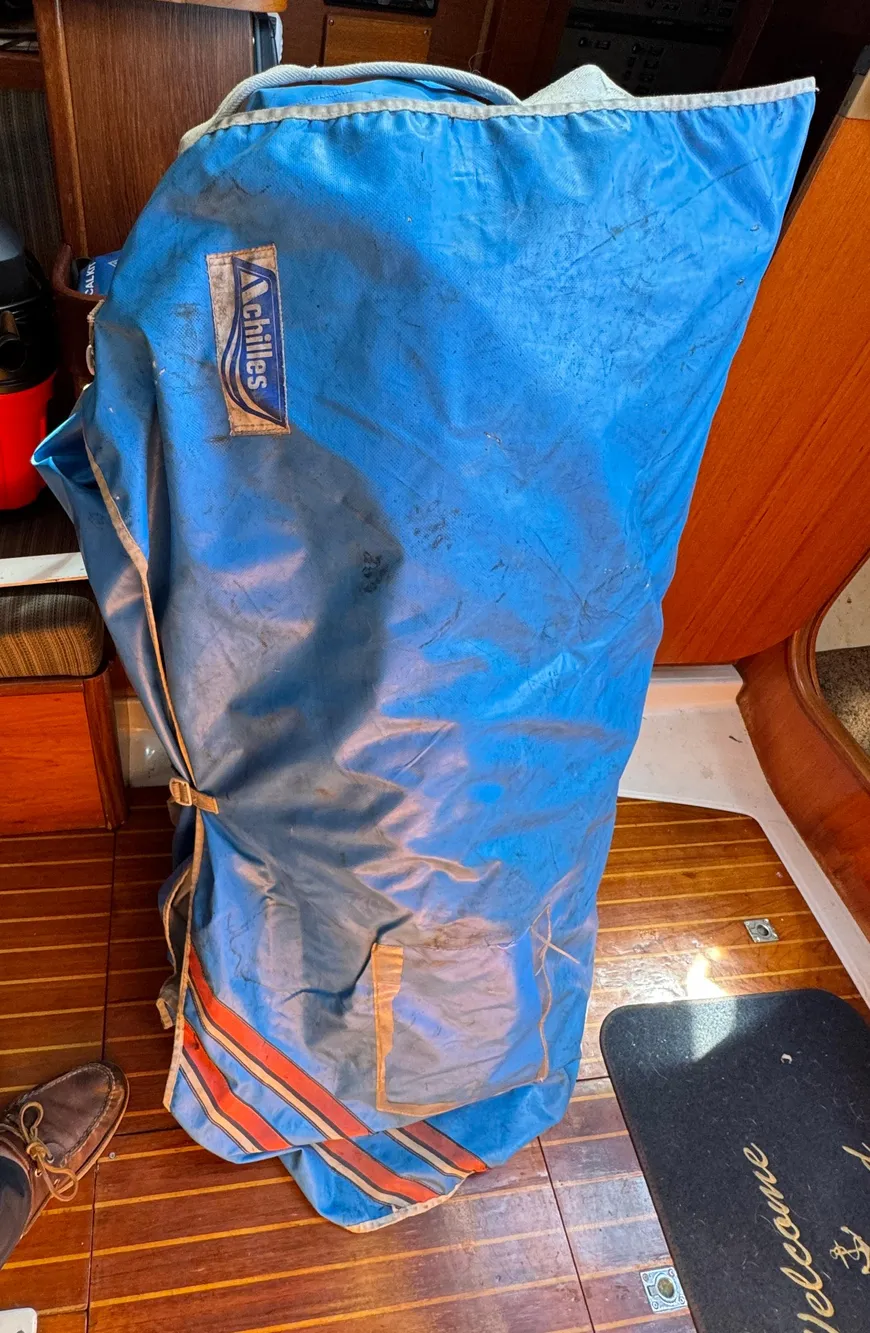

Achilles Dingy w/ bag, oars (no motor)

Winch Rite - Electric
