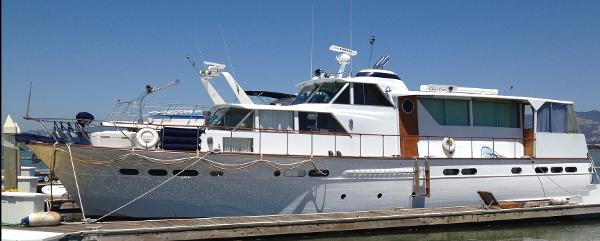

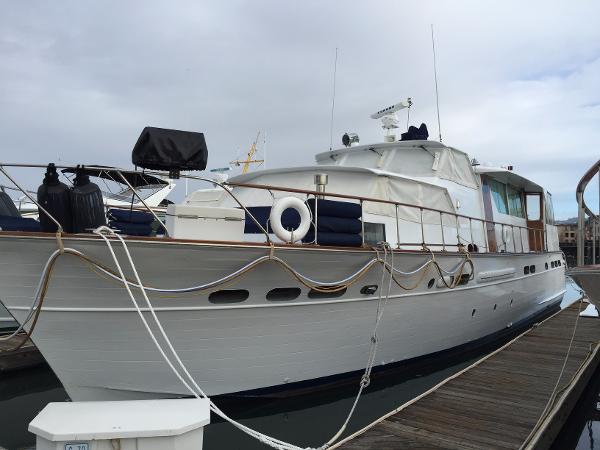

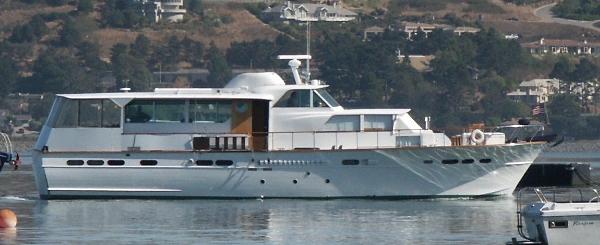

60' Chris-Craft Motor Yacht

CONSTRUCTION

Hull framing -sawn mahogany frames, fir stringers Hull planking - bottom - mahogany plank over plywood Hull planking sides - batten mahogany planked Stem - mahogany and oak Keelson - sawn oak Keel - sawn/scarfed oak Battens - full on sides  Chine - sawn and formed oak Deck beams - sawn mahogany Decks - teak over plywood, sealed and over-coated House and cabin - sawn mahogany, plywood, veneers and fiberglass Bulkheads - plywood Fasteners - silicon bronze

ACCOMODATIONS and LAYOUT

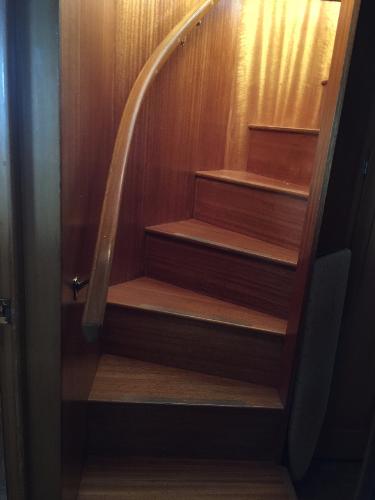

SEA CHANGES has accommodations for seven in four staterooms. Access to the owner and 2 guest staterooms is aft from the main salon down a few steps to a curved stairway. Forward from the main salon is the pilot house and down a few steps is the galley and eating/sitting area, with the jacuzzi tub and fourth stateroom forward of the galley.

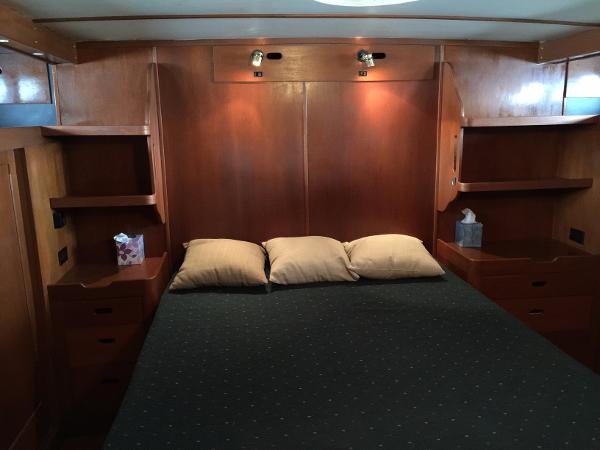

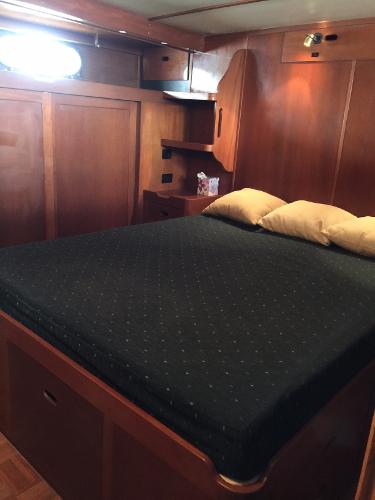

The full-width MASTER STATEROOM is all the way aft and furnished with a centerline queen bed. There are bulkhead mounted reading lamps above the berth and opening portlights outboard. The stateroom finish is beautiful mahogany. Mahogany fiddles highlight the top of the bureau while curtain treatments over the portlights enable privacy. There is a private head ensuite with a stall shower.

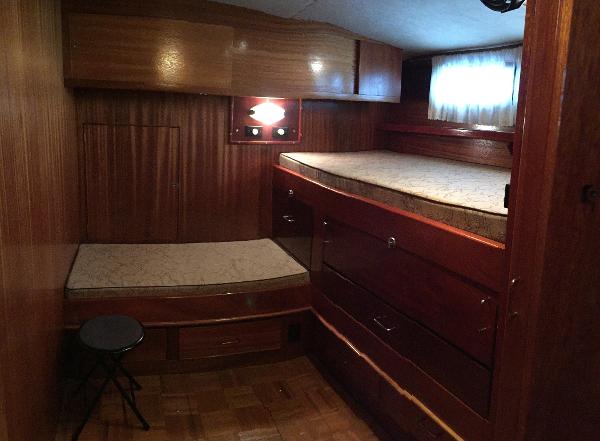

The first GUEST STATEROOM is forward to starboard with a large single berths, also finished in mahogany. There are abundant built-in drawers and a closet for storage.

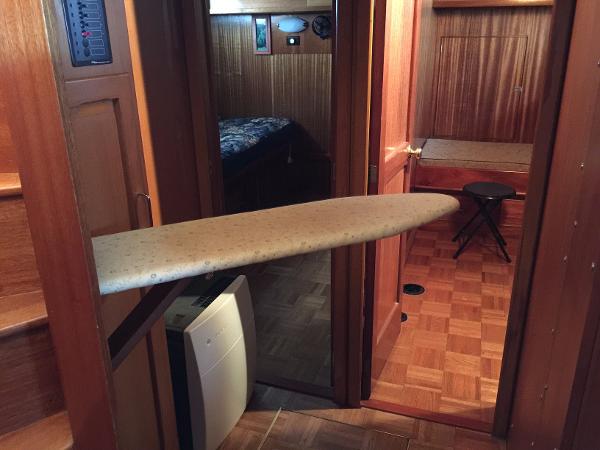

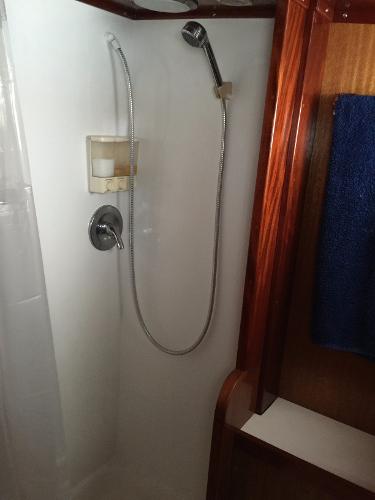

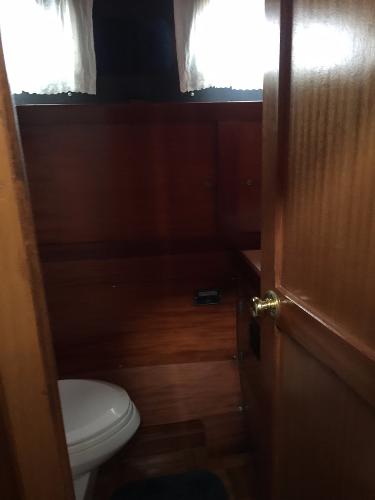

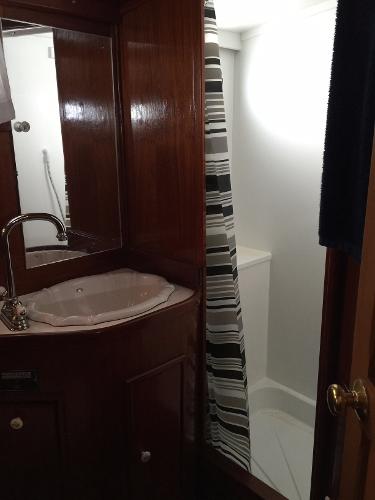

Opposite the companionway to starboard is a second HEAD and stall shower. Additional storage can be found in the hallway, as well as a built-in ironing board.

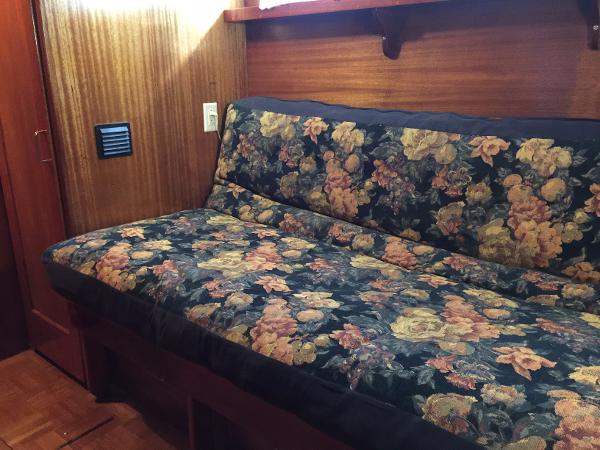

The second GUEST STATEROOM is located forward to port with a single berth that pulls out to make a double bed. It is furnished with closets and drawers for storage and finished in mahogany.

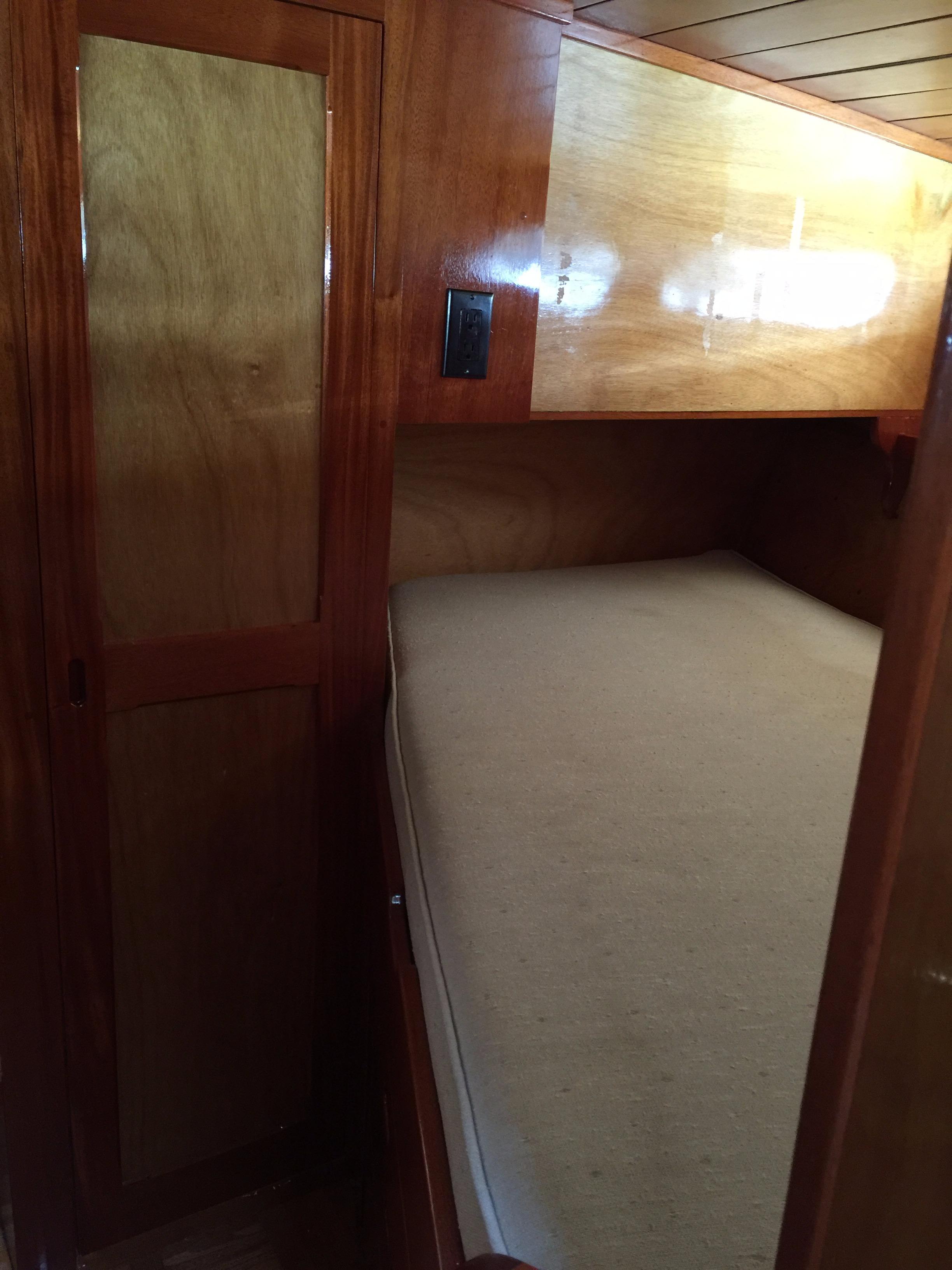

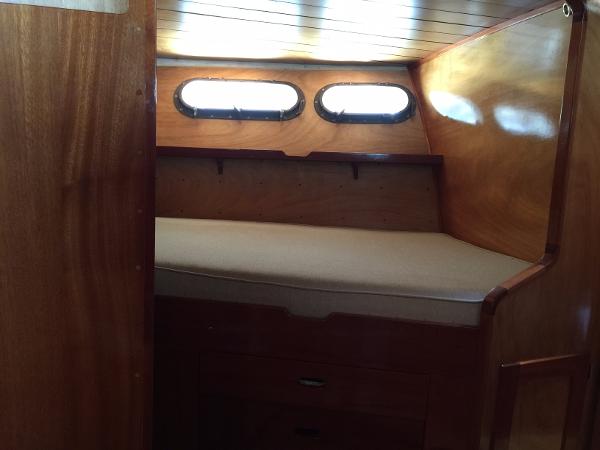

The third GUEST STATEROOM or Crew Stateroom is located all the way forward (of the pilot house, galley and fore-mid compartment) and is accessed from the galley area. It is furnished with a large single berth to port, large settee to starboard and closets and drawers. This stateroom has its own ensuite HEAD and shower.

MAIN SALOON

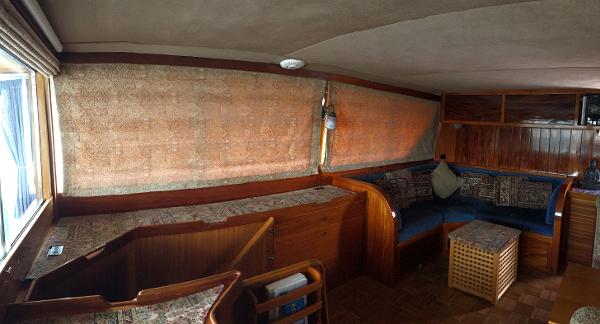

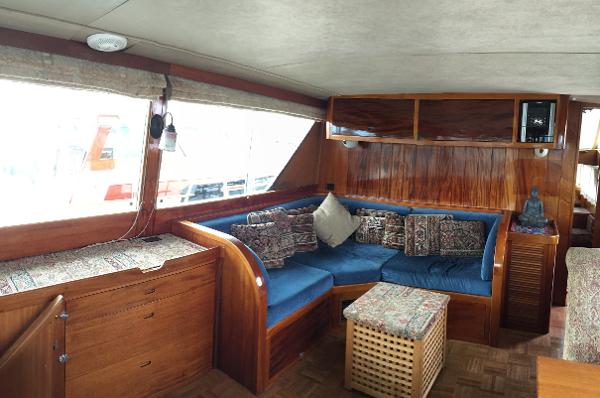

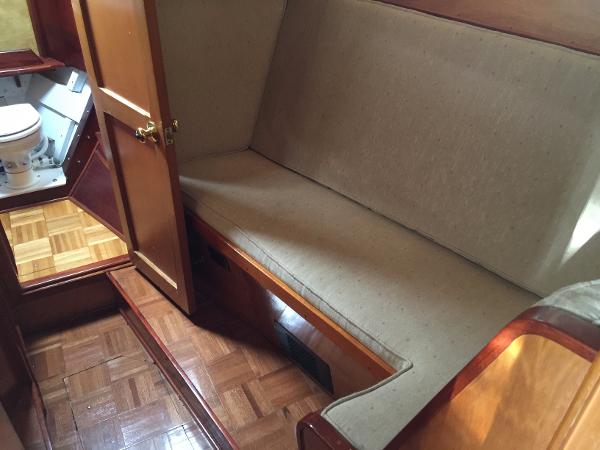

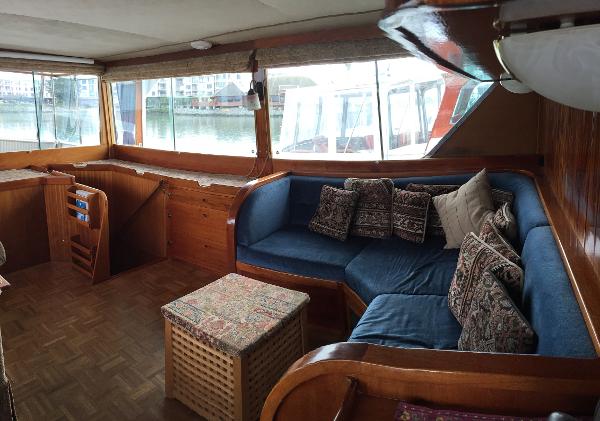

From the pilothouse, a 3 step stairway to starboard leads up to the main salon area which is paneled in natural finished mahogany and furnished with a built in L shaped settee that is designed for relaxing. On the port side of  the saloon, there is a table that can be used for eating or relaxing. There is plentiful storage outboard to port and starboard as well as in overhead cabinets forward. Sliding windows to port and starboard provide natural lighting and are also furnished with window treatments to match/compliment the salon upholstery.

AFTER DECK

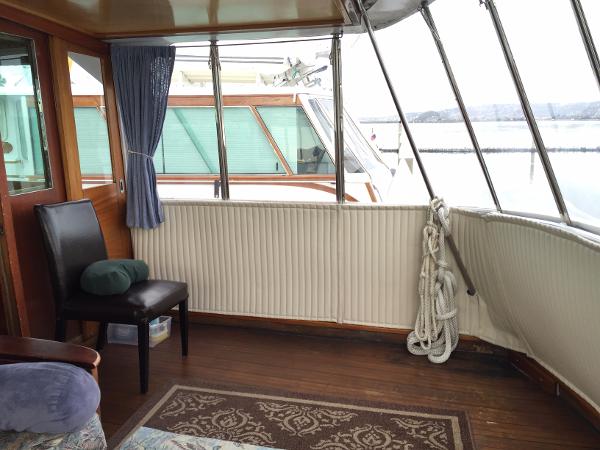

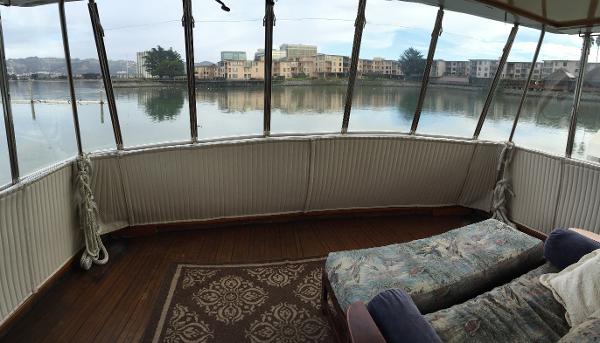

The full width after deck has beautiful teak decks. White painted weatherboards surround the aft deck with crystal clear polycarbonate, curved and opening windows (9), allowing for clear views of the outside and all-weather enjoyment of the aft deck.

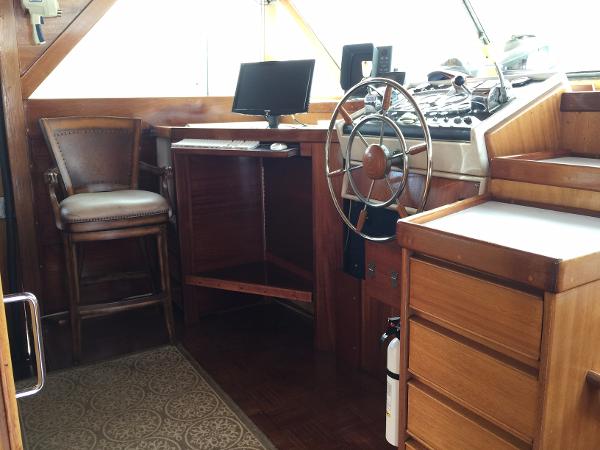

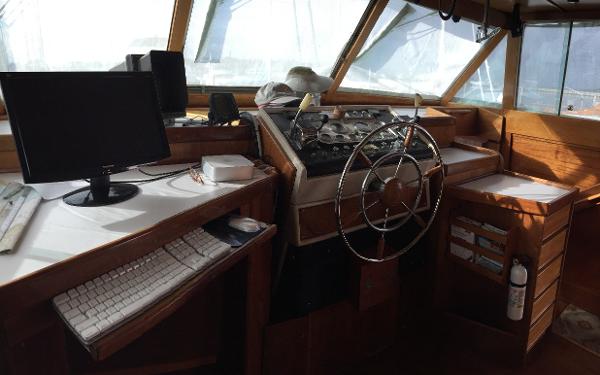

PILOTHOUSE

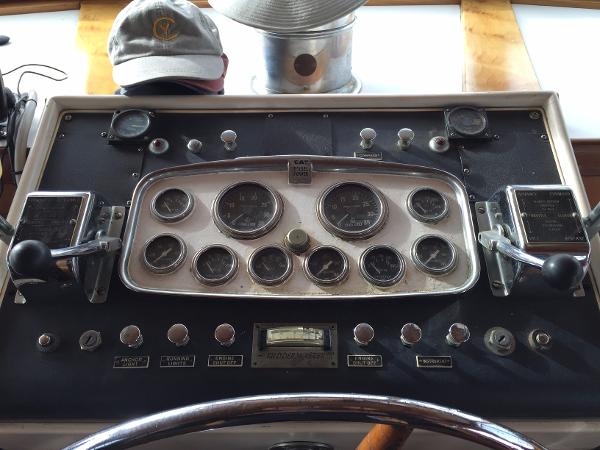

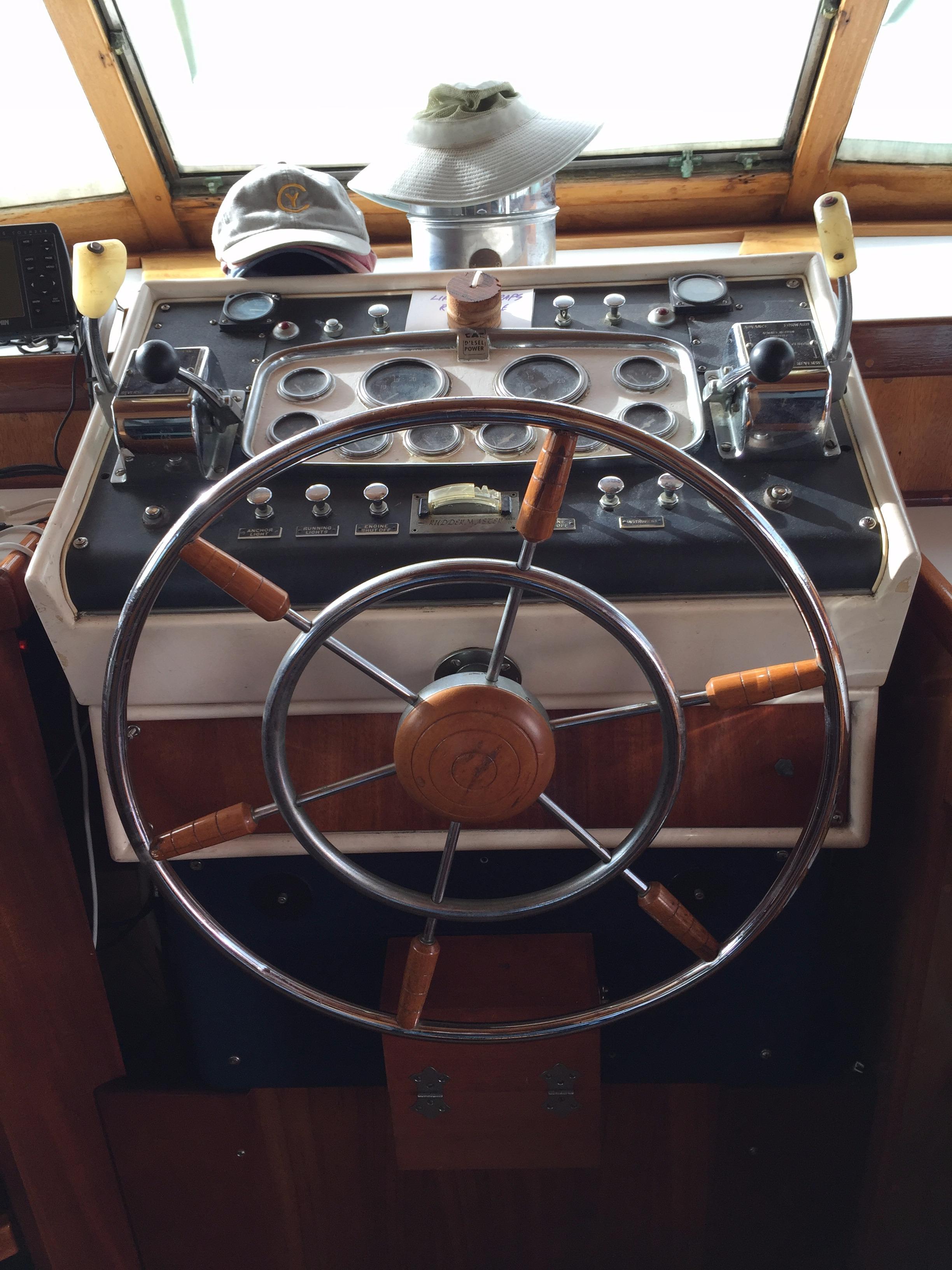

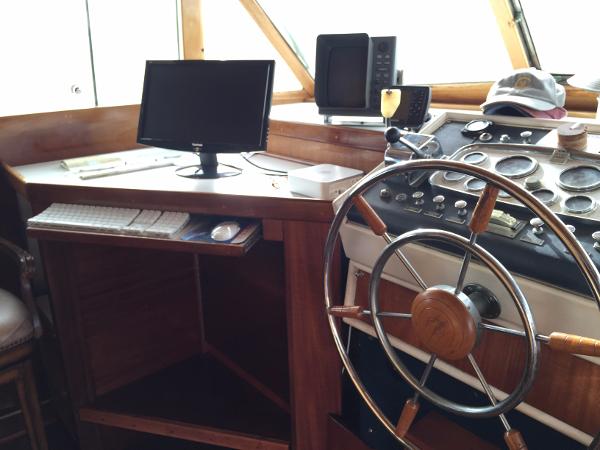

The pilothouse is just forward of the saloon and affords excellent visibility. The side windows can be opened for ventilation. The pilot house has plentiful built-in storage cabinets and a nice nav area with ship's computer. The sole is teak with carpet over the teak decking.

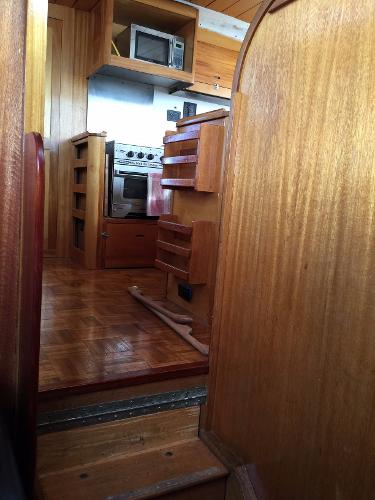

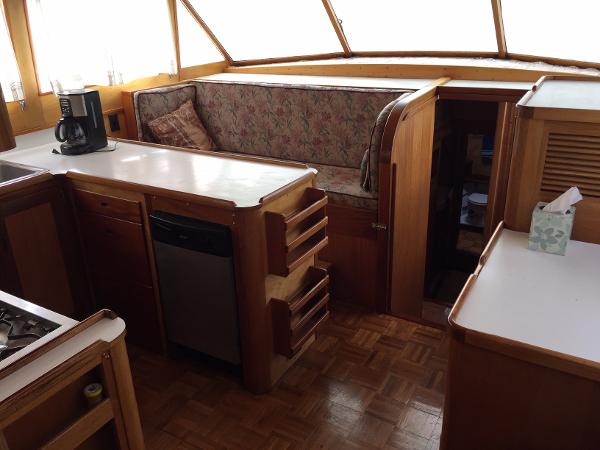

GALLEY

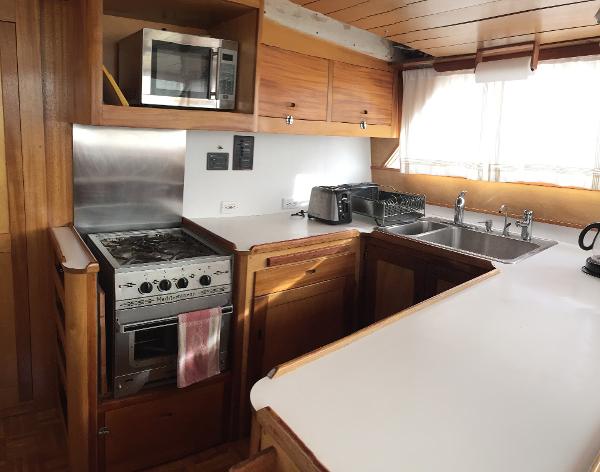

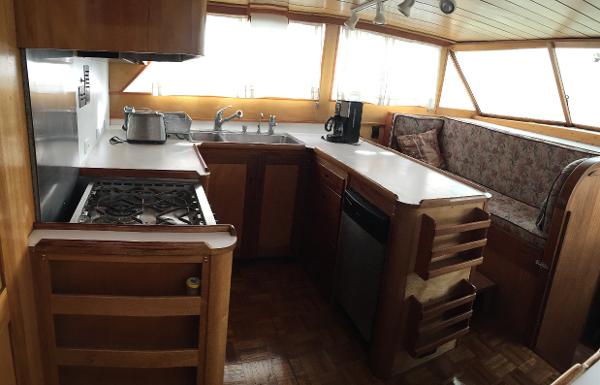

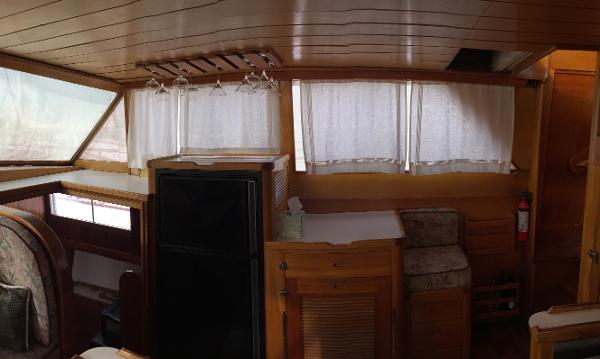

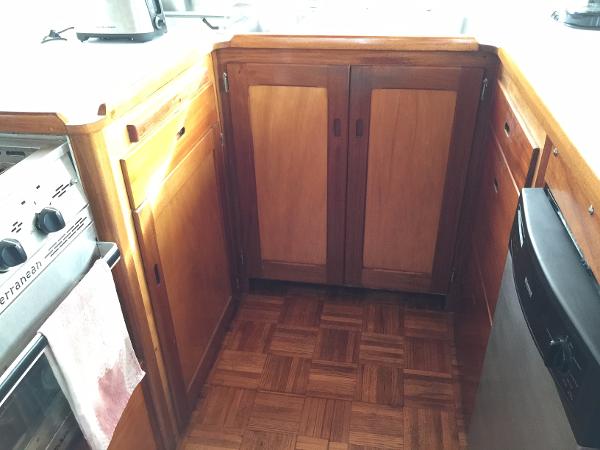

This mid-level country kitchen design galley is located forward of the main salon and pilot house with large windows on 3 sides, affording unparalleled viewing while cooking. There is a C-shaped counter with inset double stainless sinks to port with filtered water and instant hot dispenser. There is abundant storage above and below the countertop and a dishwasher under the forward counter. The 3 burner Dickinson stove is mounted against the aft bulkhead.

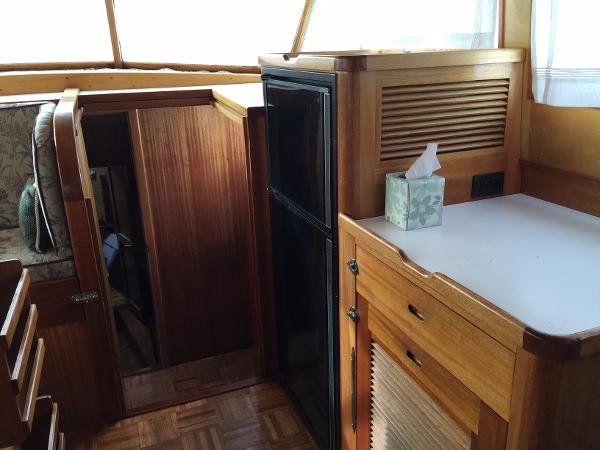

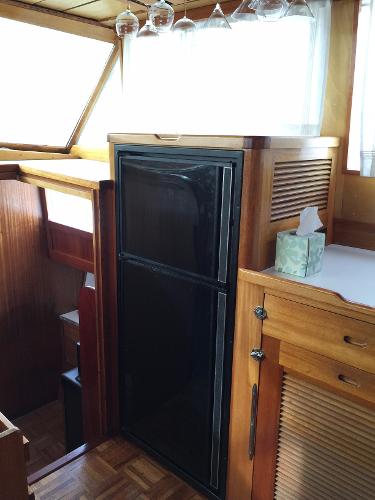

The two door refrigerator/freezer is along the starboard side with additional storage and a single seat and overhead wine glass storage.

A built-in dinette/settee with sliding table top is located forward with seating for 4 persons.

      Galley Appliances

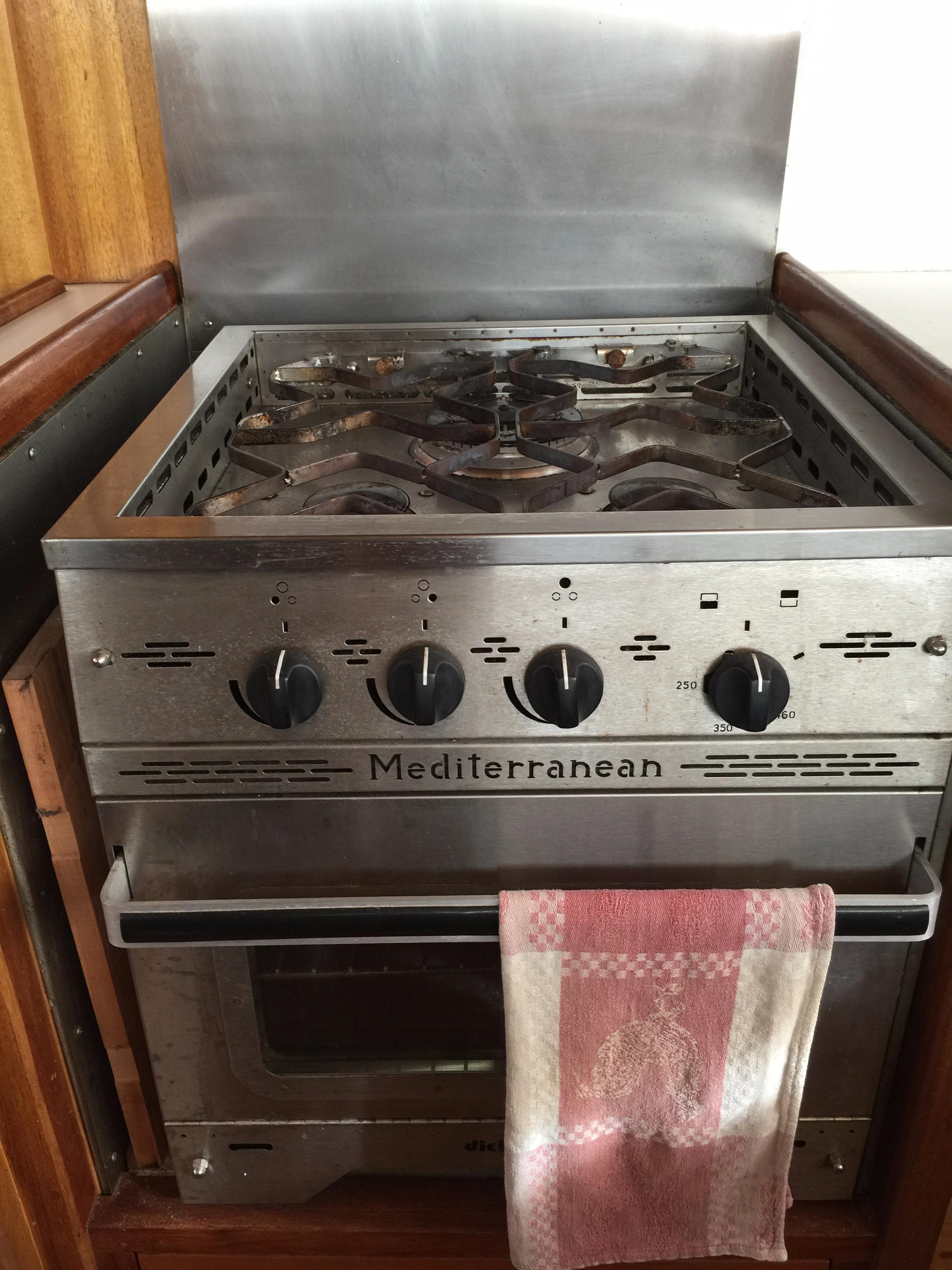

Refrigerator w/ freezer Three burner Dickinson stove with oven Microwave Double stainless steel sink with filtered water and instant hot water dispenser Kenmore dishwasher

FORE-MID COMPARTMENT

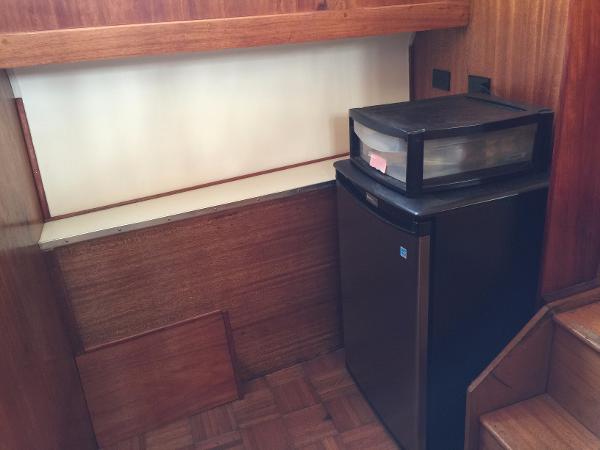

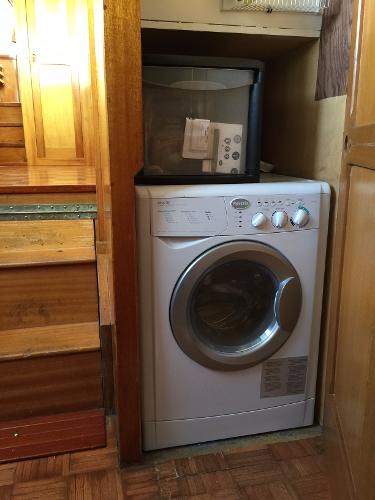

The Fore-Mid Compartment is located dow 3 steps and forward of the galley and is finished in mahogany. There is a half-size refrigerator and Splendide washer/drier.

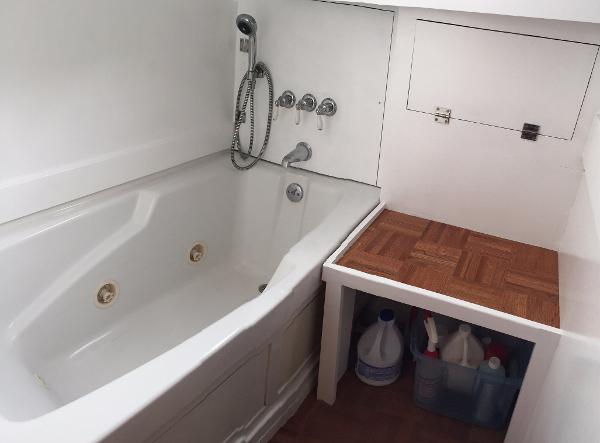

There is a full size Jacuzzi tub with shower for your pleasure after a hard day.

MAIN DECK

All decks are reefed & caulked and sealed with epoxy, elastomeric membrane, non-skid and top-side paint.

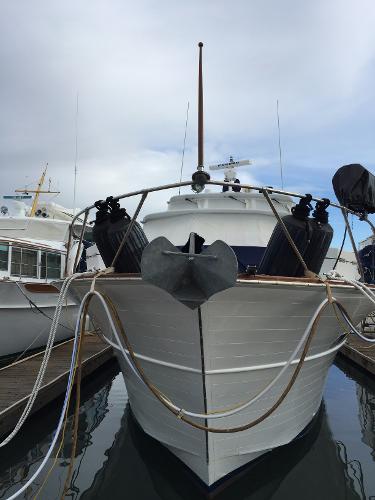

Starting all the way forward, the foredeck is equipped with port and starboard fiberglass propane boxes with 2 aluminum propane tanks and a heavy duty Muir Thor 12v anchor windlass with an 88 lb Delta anchor on stainless  steel rollers. On the forward end of the trunk cabin is a built-in full width bow seat with a canvas cover, upholstered cushions and additional storage beneath.

The entire foredeck and side decks are protected by varnished teak cap rails mounted on stainless steel stanchions  and connected by vinyl clad stainless steel lifelines. At the bow, these railings terminate at the polished stainless steel bow rail/anchor pulpit. The port and starboard side decks lead aft to the wing doors which open to the aft deck.

ENGINES and MECHANICAL

ENGINE ROOM

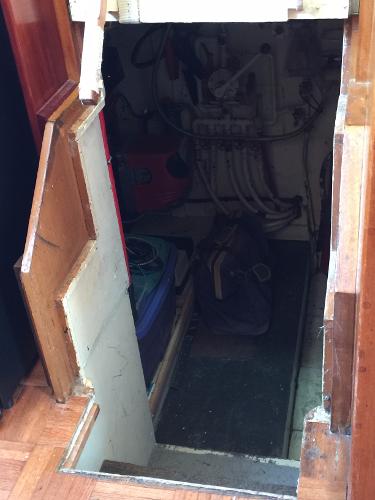

The full width, stand up engine room is beneath the main salon sole and accessed from forward of the galley area. There is a separate full width workshop/equipment area forward of the engine room that houses the Kabola heater, electrical components and  tool chests.  The generator is NOT operational.

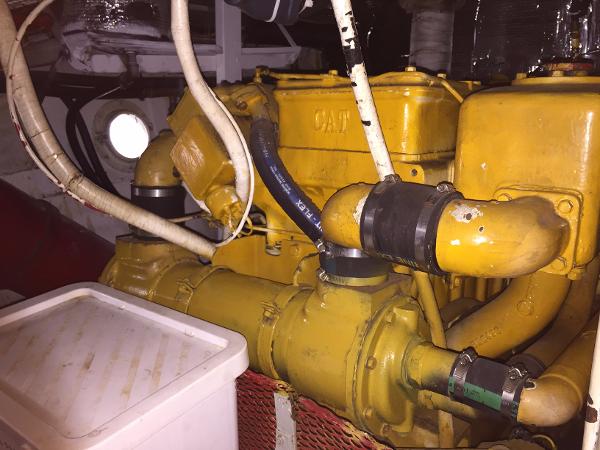

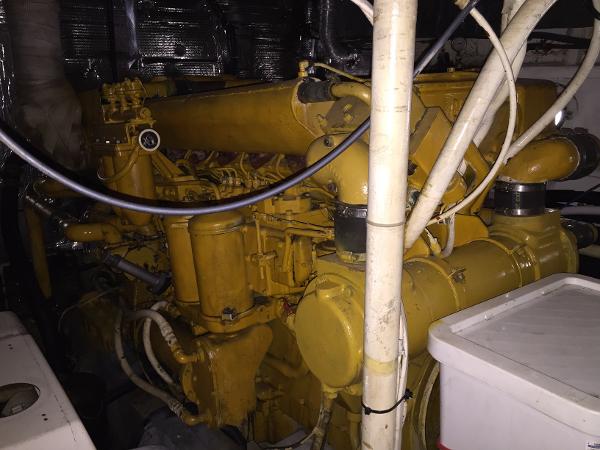

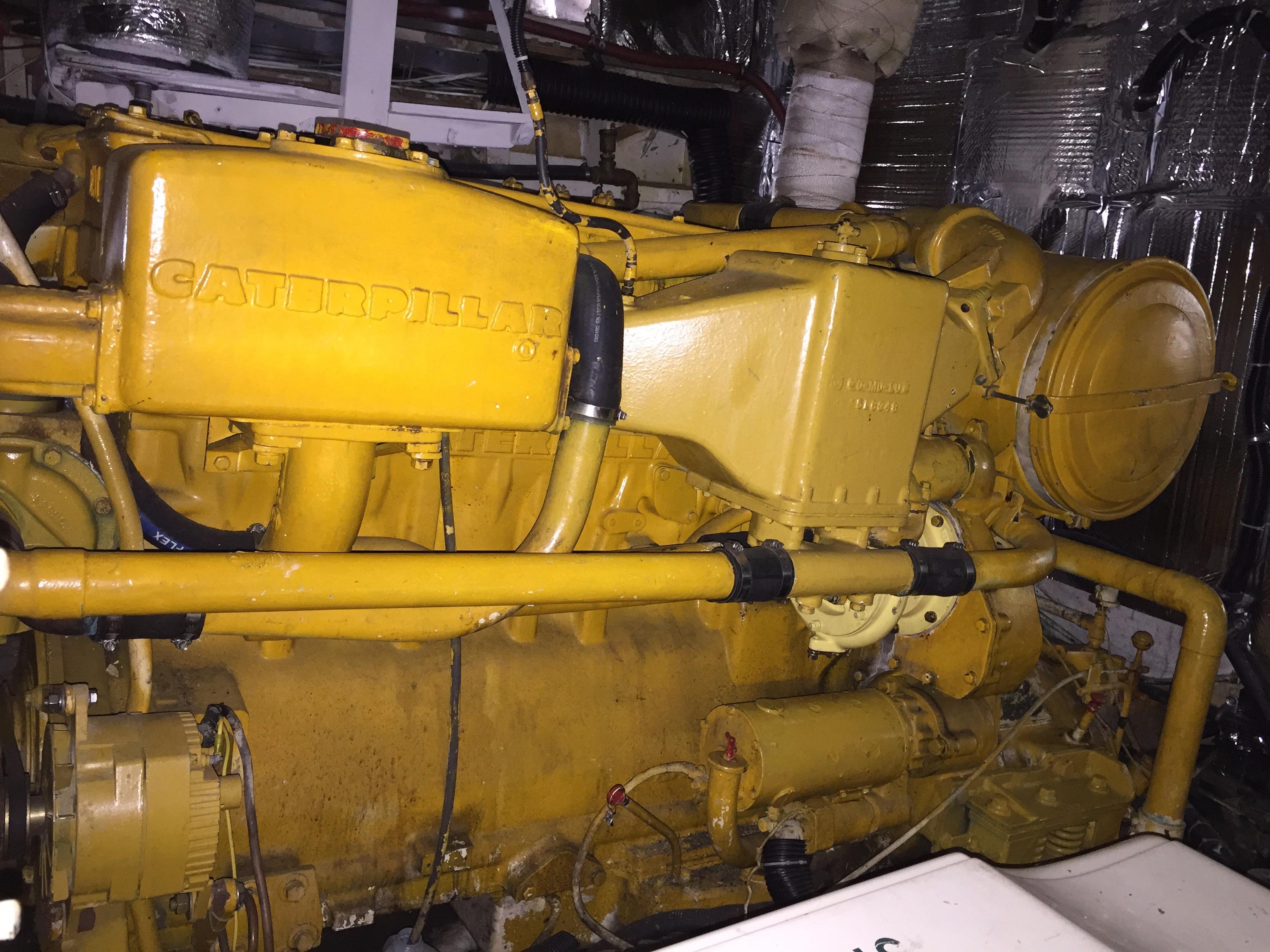

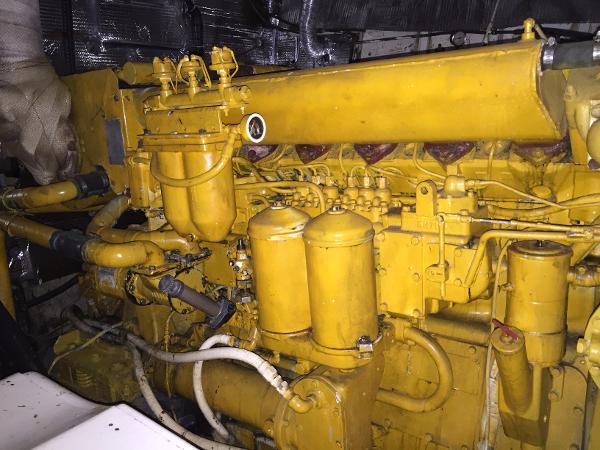

TWIN CATERPILLAR D 343 TA

Engine hours Port ~3100 Starboard ~3100 2:1 hydraulic Caterpillar reduction gear Engine cooling raw water through heat exchangers Exhaust system casting and piping through dry stack with muffler  Engine pyrometers

DRIVE SYSTEM

2" propellor shaft 32" x 31" four blade bronze propellors

FUEL TANKS and DELIVERY SYSTEM

2 iron tanks 600 gallons totallocated port and starboard aft Manifolds and tank shutoffs

BILGE PUMPS

2 Rule 2000 Rule 500 Rule 1100 Rule 2800 ac Manual forward

ELETRICAL

120 V AC

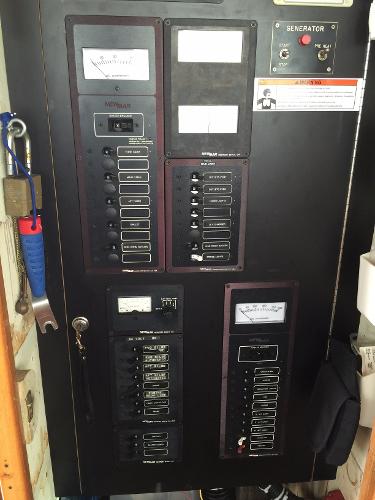

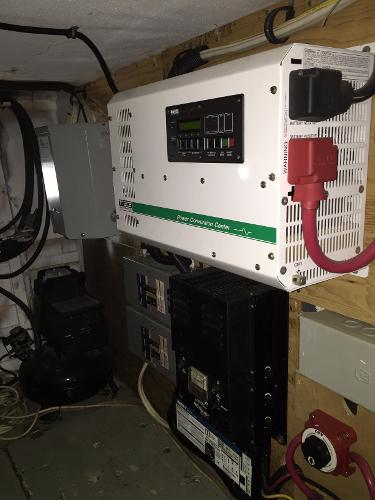

Main breaker panel with subbed panels with polarity indicators Trace SW2512 MC inverter Isolation transformer Wiring 600 vac non-metallic Hot water boiler Hot water flash heater

Low voltage (12v and 32v)

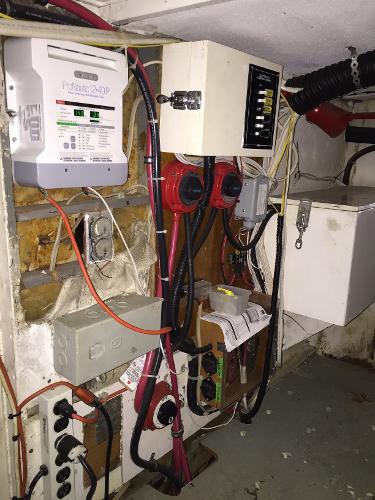

Pro Mariner 20-3 12v battery charger ProTech 4-32 32v battery charger Newmar 32-30 32v battery charger (back up) Two 32v alternators Master battery switch Battery parallel switch One 32v battery banks One 12v battery bank  12v navigation lights and anchor light

ELECTRONICS

VHF - West Marine Aries II VHF - Standard Spectrum Radar - Furuno RDP119 Navigation - PC running MAC ENC software with View Sonic Display GPS - Garmin 135 Depth - Garmin 135 Knot meter - MAC Rudder angle indicator

ENTERTAINMENT

Panasonic digital tuner Sharp compact stereo system TV antenna Stereo with speakers

DECK EQUIPMENT

20 life jackets located in deck box and port aft storage Approved life rings and LifeSling

GROUND TACKLE

88 lb. Delta plow anchor Chain - 300' 1/2" ht Muir Thor 3200 lb windlass

SAFETY EQUIPMENT

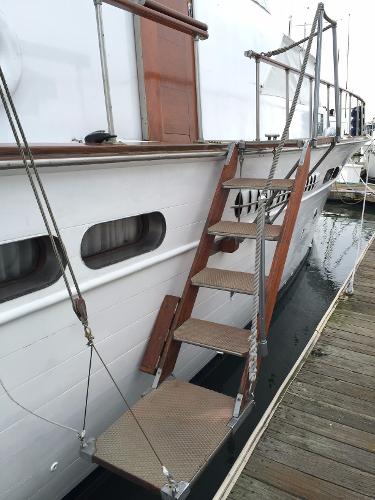

12v Navigation lights and anchor light Bell Horn Flares Abundant fenders Wipers First Aid kit Teak folding boarding ladder Bow and stern rails and double lifelines Smoke detectors CO detectors Escape hatches - aft deck and 3 cabin entry doors

ADDITIONAL EQUIPMENT

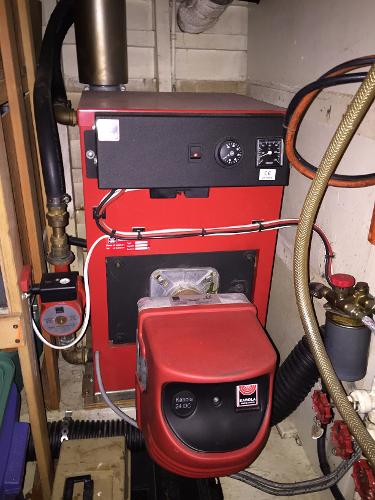

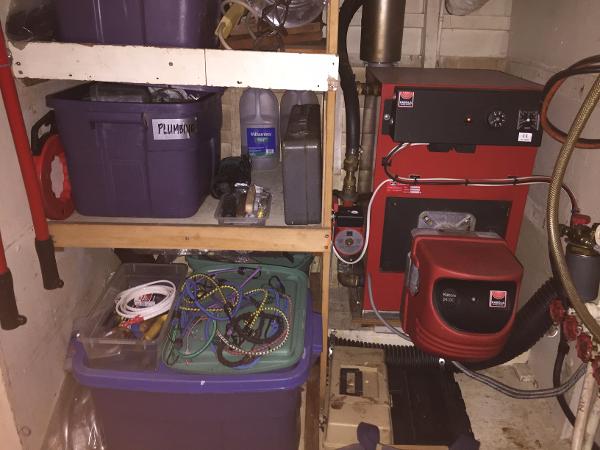

72,000 btu Kabola diesel fired boiler for central heating and hot water Search light Handheld spotlight Tank watch holding tank monitor Stainless LPG BBQ Craftsman air compressor Deck boxes Deck washdown Boat pole

UPGRADES and IMPROVEMENTS

FORE DECK

Heavy teak bow anchor base and SS bow roller 88 lb. Delta plow anchor 300 ft. ½ in. high-test galvanized anchor chain 3500 lb. pull Muir Thor 12 v windlass Stainless steel fender (6) and life-ring (2) mounts Trident Marine propane system (Coast Guard approved) Twin fiberglass propane deck lockers Propane remote shut-off system 2 aluminum 20 lb. Trident propane tanks Rail-mounted Dickinson propane barbecue 10 ft. width seating with closed cell foam cushions Sunbrella upholstered and weather covered Life jacket storage under settee Weather decks reefed & caulked and sealed with epoxy, elastometric membrane, non-skid and top-side paint.

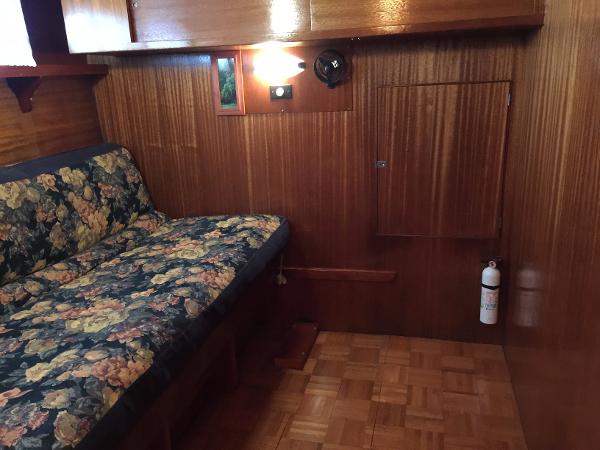

FOREWARD STATEROOM

Complete rebuilt (Honduran Mahogany) with berth, cushions drawers, book shelves, hanging locker and settee with additional storage under 120v AC sub-panel feeding 3 AC outlets (ground-fault protected) and 12v & 32v lighting In-suite Electric head/LetraSan saltwater septic system (Coast Guard approved) with new plumbing and new cabinet joinery (Honduran Mahogany) Central heat blower vent (local thermostat controlled)

FORE-MID COMPARTMENT

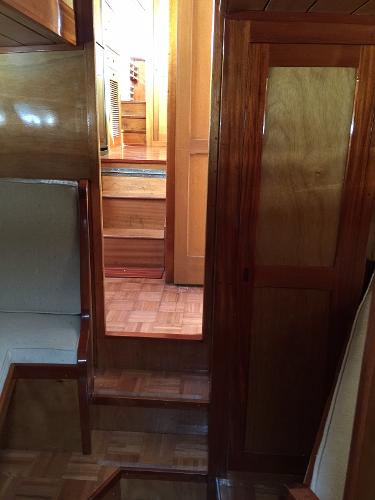

3 steps up from forward stateroom Starboard-side refurbished mahogany joinery and half-size refrigerator and utility storage space Splendide 2010 XC clothes washer/dryer 6 ground-fault protected AC outlets Port side Eccotemp Propane flash hot water heater –120,000 BTU install and associated cabinetry Jacuzzie standard-size hot-tub with shower head install and cabinetry

 GALLEY

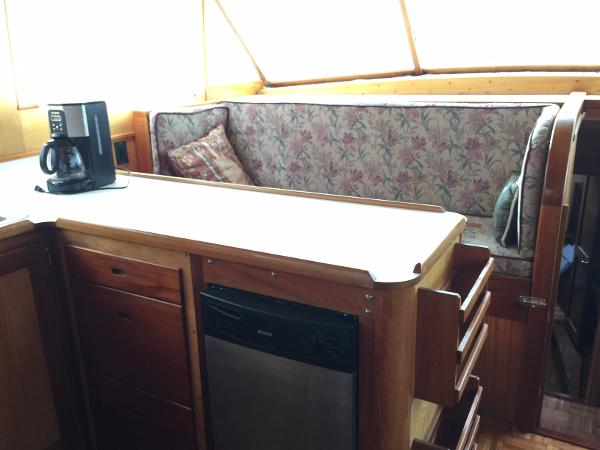

Mid-level country kitchen design 3 steps up from fore-mid compartment Built-in upholstered settee Island counter with storage under Double ss sink Built-in dishwasher Dickinson stove/oven Norcold TEK Dual Electric refrigerator/freezer Microwave ove 13 drawers, 2 closing dish-cabinets, additional closing storage associated with settee Wine racks, overhead wine glass holder 7 AC outlets on 2 circuits (ground-fault protected) AC distribution panel Trident Gas Control Panel AC & DC lighting 12v DC stove-top exhaust fan Central heat blower vent (local thermostat controlled)

 PILOTHOUSE

New mahogany cabinetry installed port and starboard, mahogany overhead cabinets Radar; 6 KW Furuno RDP 119 Garmin 135 plotter/depthfinder 2 VFH radios; Standard Spectrum (with hailer),West Marine Aires II 3 Ongario parallel self parking windshield wiper motors, switches, etc. 12 v DC overhead fans New AC & DC wiring with distribution panels Electrical panel closet Media equipment closet

MAIN SALOON

Complete new Honduran Mahogany build out Deep L-shaped settee with custom fitted cushions Cabinetry P&S (12 drawers, 2 double opening doors for larger item storage) Fabric headliner Custom Roman-shade drapery Media cabinet above settee 5 AC outlets 4 wired-in-place AC lamps on dimmers Power amplified TV antenna (12 v) Central heat blower vent (local thermostat controlled)

AFTER DECK

Stainless steel, acrylic and Lexan (curved corner windows) hard weatherproof enclosed after-deck with 9 large opening windows White rolled vinyl upholstery Mahogany and Okumi paneled overhead 1 AC outlet

BELOW-DECK AFTER STATEROOMS (3)

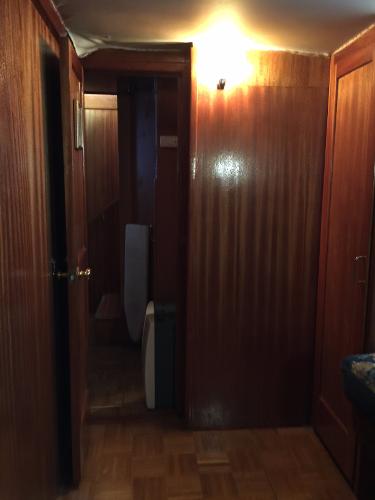

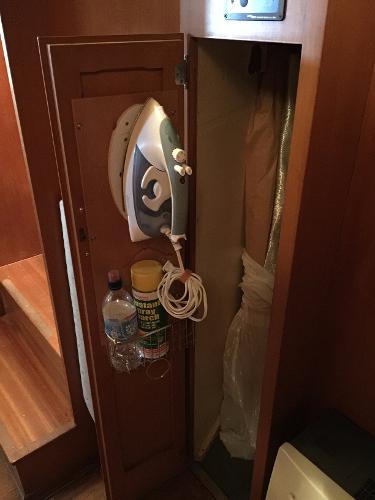

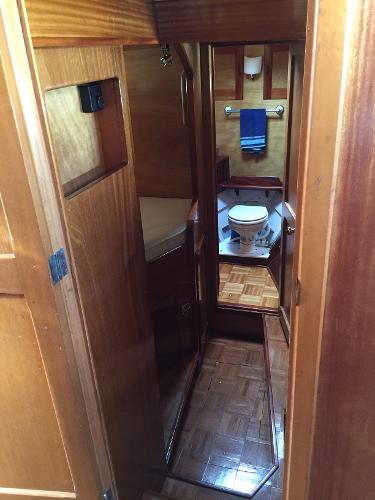

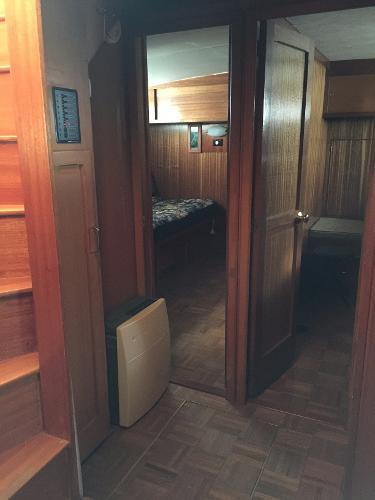

Curved Mahogany stairway to lower passageway (4 doors to compartments) Mahogany overhead and dimmable lighting Swing-up ironing board and closet 2 AC outlets 2-50 gallon holding tanks serve both heads (plumbed together for single point deck and thru-hull pump-out) New AC wiring and AC distribution panel

MASTER STATEROOM

Full width Completely rebuilt with Honduran Mahogany Center island queen berth with 7’ hanging closets port and starboard Hot water copper heating lines in hanging closets Under bed storage: 8 drawers and large 6 foot long storage compartment Built-in shelving port and starboard 12 v lighting 4 AC outlets (ground fault protected) Competely rebuilt ensuite head with shower, sink, and built-in storage lockers (Honduran Mahogany) Headhunter Royal Flush head (fresh water) AC outlet ground fault protected 12 v and AC lighting Central heat vent (local thermostat controlled

GUEST STATEROOMS (PORT AND STARBOARD)

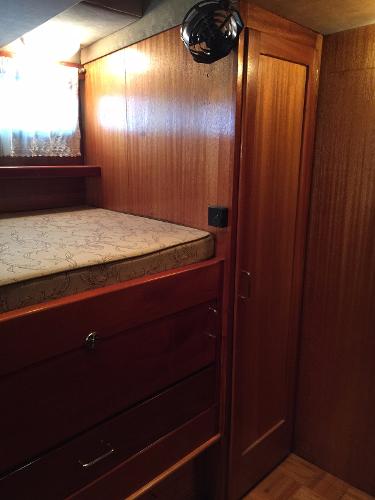

Starboard stateroom/office Completely rebuilt with Honduran Mahogany Elevated single berth with storage and pull-out desk secretary below Settee with drawers under Overhead cabinet with sliding doors Hanging closet with shelving New fabric overhead 4 AC outlets AC & DC lighting Central heat blower vent (local thermostat controlled)

PORT STATEROOM

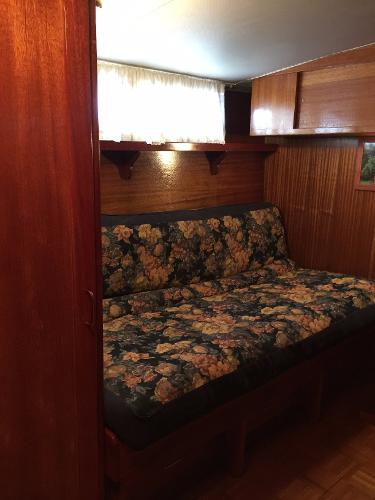

Rebuilt with Honduran Mahogany Single berth/settee pulls out to double bed Overhead cabinet with sliding doors Hanging closet with shelving AC outlet ground fault protected AC & DC lighting Central heat blower vent

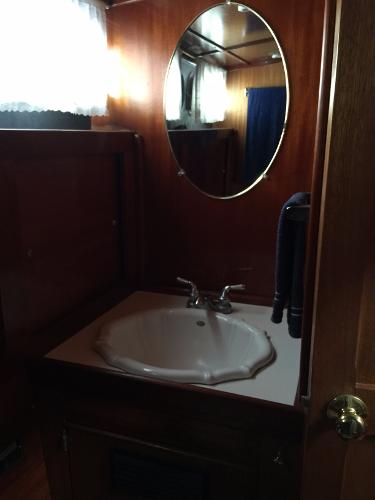

GUEST HEAD

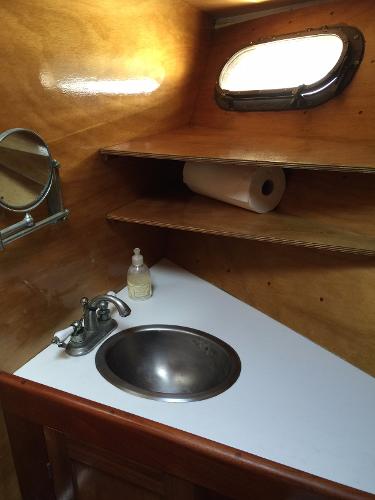

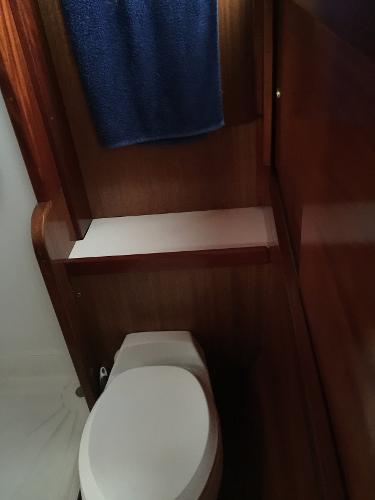

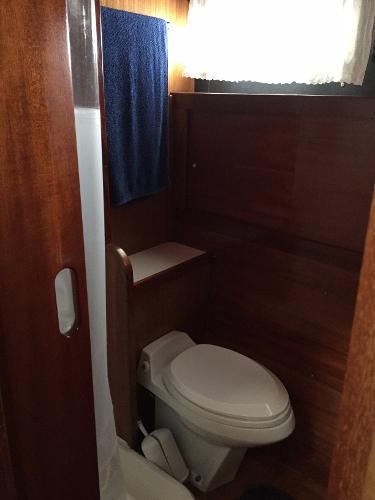

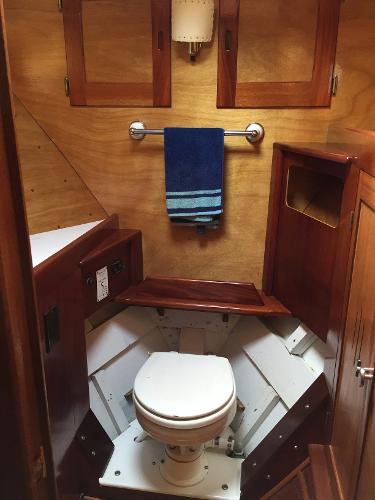

Serves port and starboard staterooms Competely rebuilt head with shower, sink, and built-in storage lockers (Honduran Mahogany) Headhunter Royal Flush head (fresh water) AC & DC lighting

OTHER UPGRADES

All interior spaces added wood parquet floors (with fitted access panels) Main cabin exterior overhead sealed with epoxy, elastometric membrane, elastometric paint, non-skid and top-side paint. 72,000 BTU Kabola diesel fired furnace plumbed to 5 thermostat controlled zones providing hydronic heating throughout vessel. Anchor and running lights Loud hailer Isolation Transformer Trace Inverter SW2512 2 Generator/shore power by-pass switches Fireboy automatic fire extinguisher (in addition to functioning original CO2 system) Head Hunter fresh water pump 55 PSI @ 20 GPM (fresh water heads and all other vessel freshwater services

 BATTERIES



2 marine deep-cycle 12v batteries in parallel for house, windlass, furnace, 3 bilge pumps and 11 house lights.

       Replaced in 2022 (JULY)

4 marine deep-cycle 8v batteries in series to yield 32v for engine starting, 3 house lights and 2 bilge pumps
