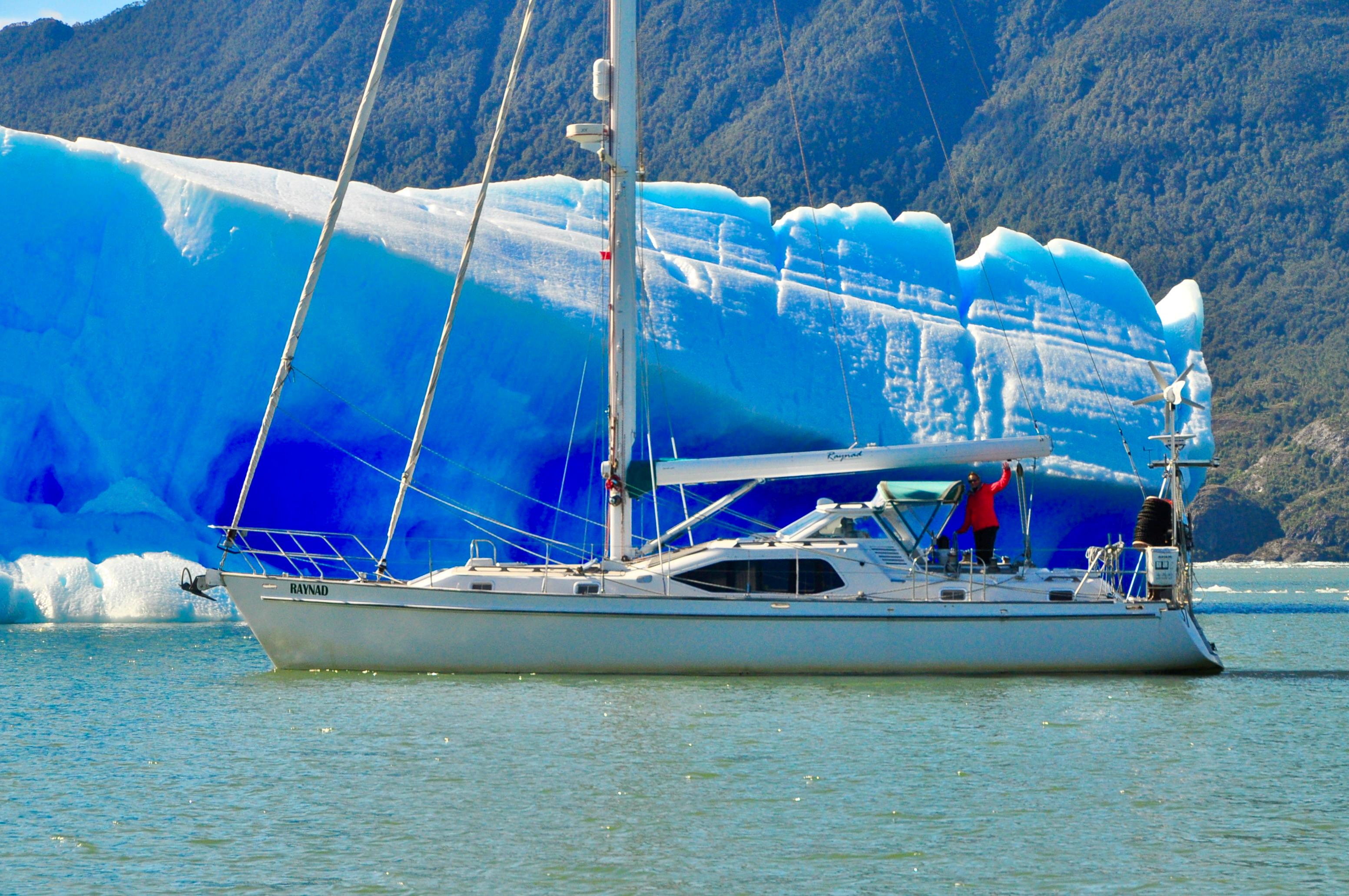

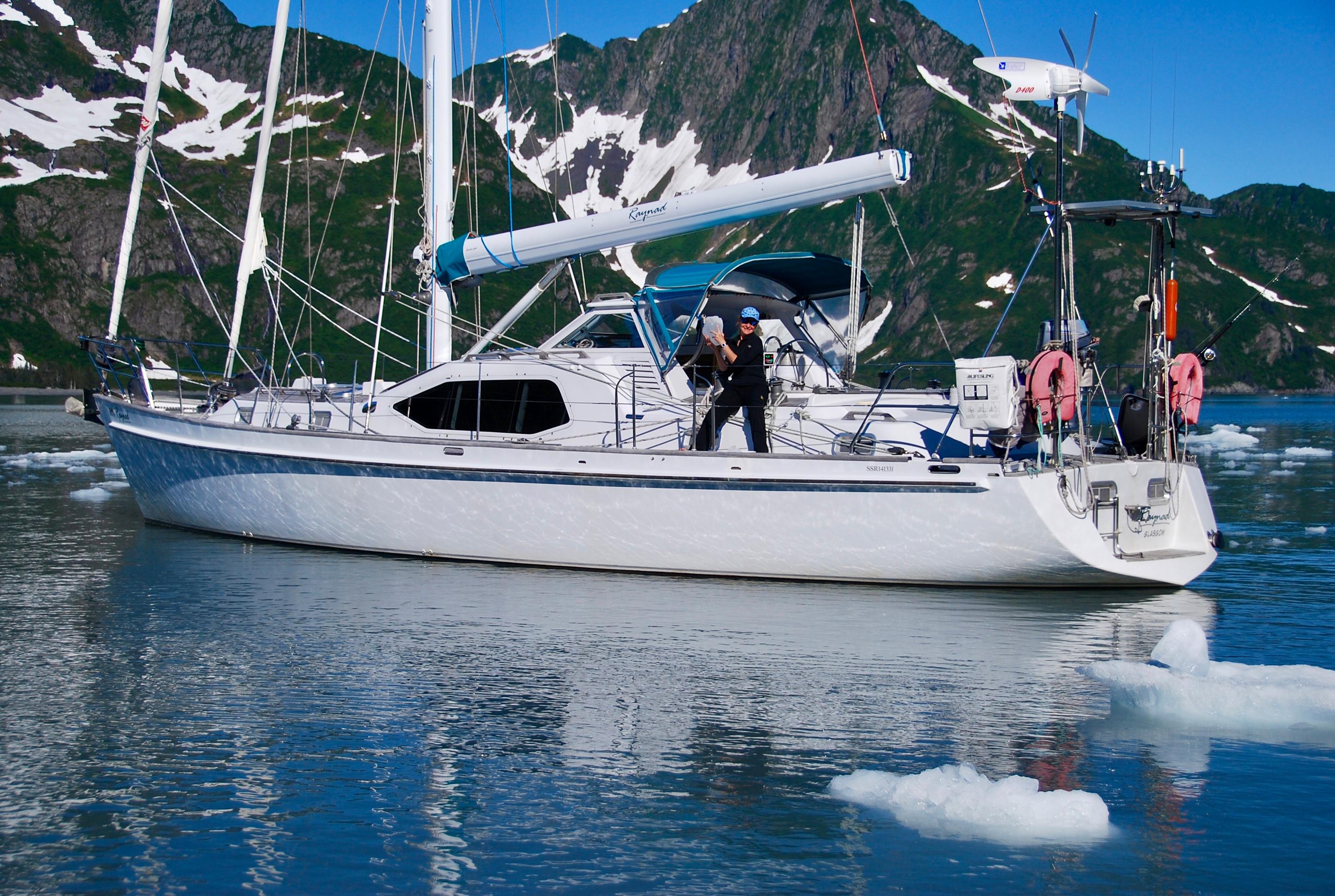

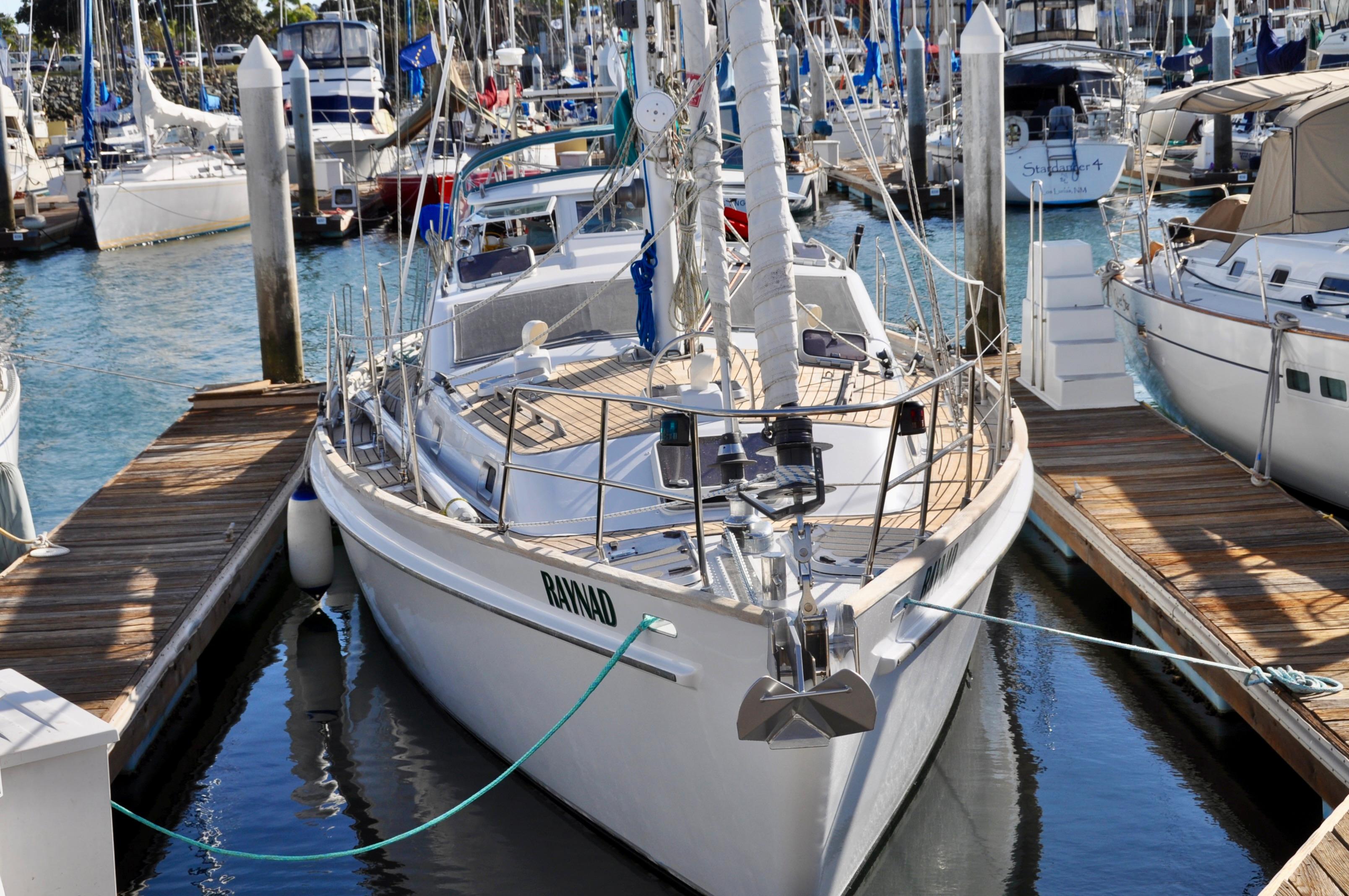

RAYNAD

48' Roger Hill Cruising Cutter

$449,000

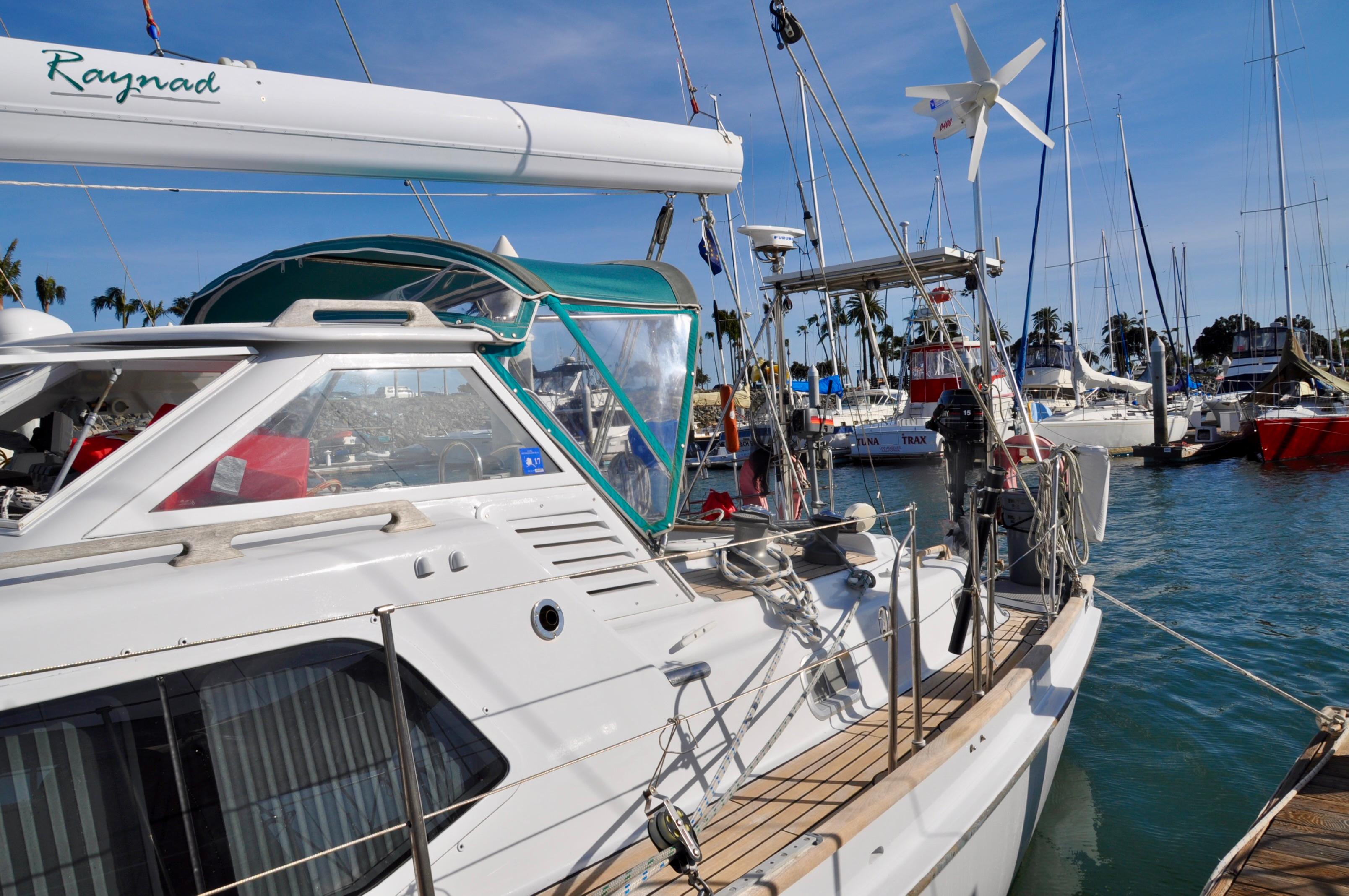

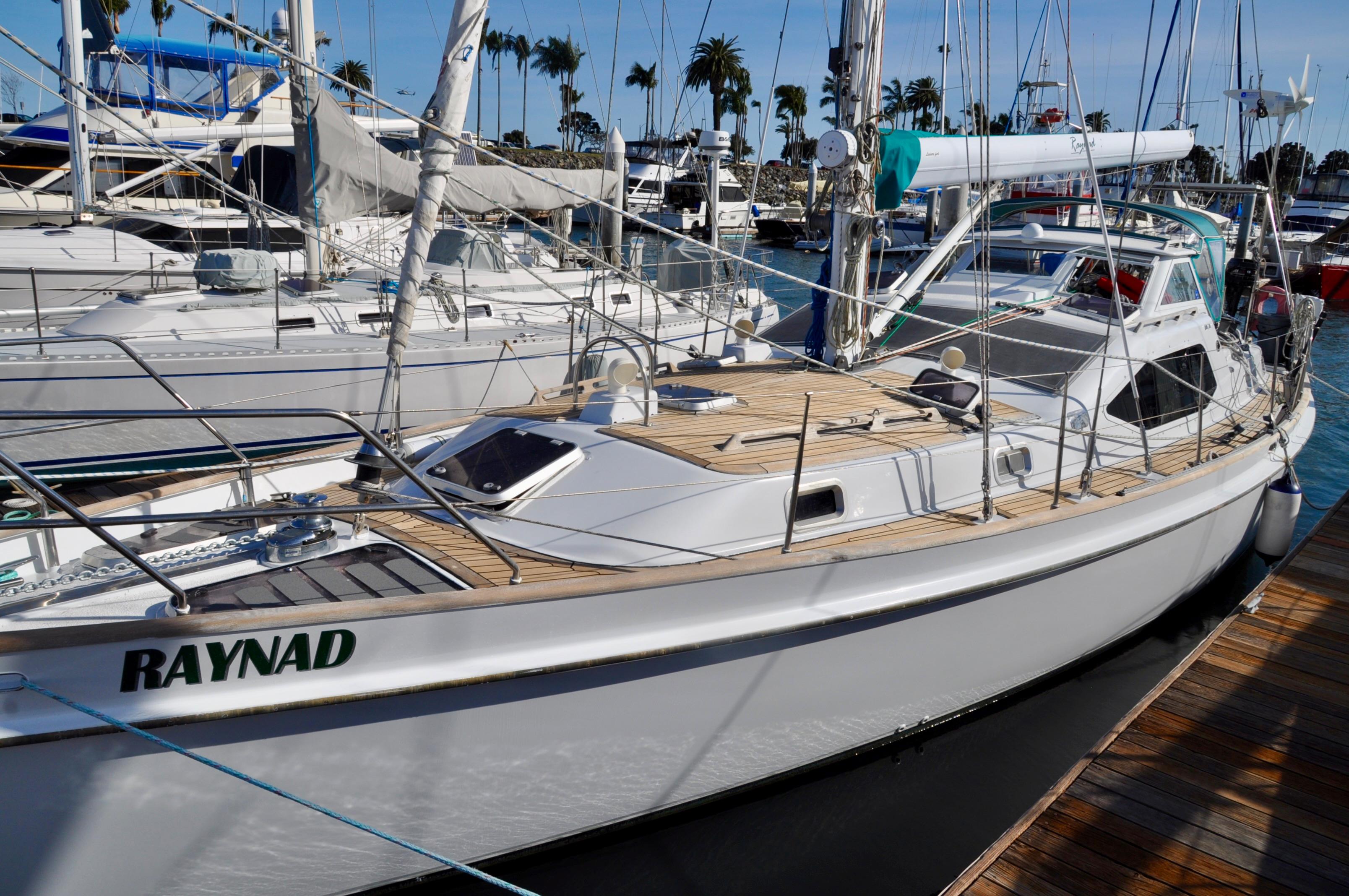

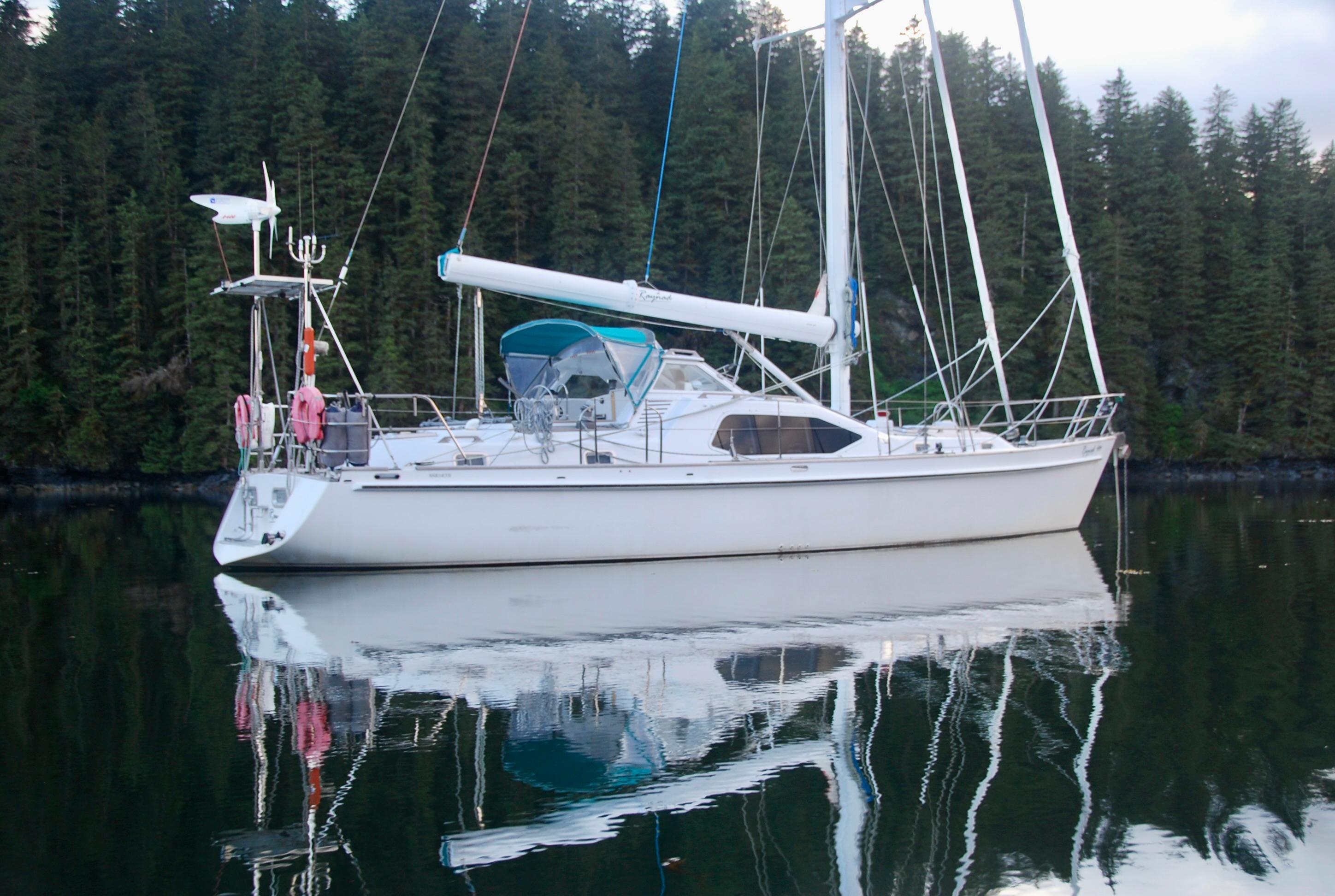

RAYNAD was designed by Roger Hill Yacht Design Ltd and built in Auckland NZ, the design criteria was to create the ultimate "Go Anywhere" yacht with an emphasis on safety and comfort. There was one other requirement which was that the owners have great visibility from the yacht when underway or at anchor As a result, RAYNAD is a unique yacht with panoramic views of her surroundings.

Her steel hull features a 7' draft with a bulb keel and a stainless steel skeg hung rudder with a sacrificial lower 30% in the event of impact. The hull has 4 watertight compartments and huge tankage which is incorporated into the keel. She carries 500 gallons of diesel in 4 tanks plus a 50 gallon day tank and 350 gallons of fresh water in two tanks. A 40 GPH Sea Recovery Watermaker along with an 8KW Northern Lights Generator gives you the capability of crossing oceans and cruising off-grid in exotic locations for extended periods. Included in the sale is a high quality Alkin 2.5 hp Dive Air Compressor which is continuously rated for multiple fills to 3500 psi and a compliment of quality dive gear.

This yacht is a tough bullet-proof cruising cutter that is ready for you to explore the far reaches of the globe. She is currently lying in Juneau AK so she is ready to enjoy for northern cruising this summer.

Make: Roger Hill
Model: Cruising Cutter
Year: 2000 Length: 48ft

Name: RAYNAD
Hull Material: Steel
Engine/Fuel Type:
Located In: Juneau, AK

  • Category: Sail
  • Class: Cutter
  • Keel: Bulb Keel
  • Designer: Roger Hill Yacht Designs Ltd. Auckland, NZ
  • LOA: 48 feet
  • Beam: 14 feet
  • Max Draft: 7 feet
  • Total Engines: 1
  • Engine 1
  • EngineMake: Detroit VM Motori
  • EngineModel: 494HT-10
  • EngineYear: 2000
  • EngineFuel: diesel
  • PropellerType: 3 Blade, Bronze, Folding
  • EngineHours: 3800

  • Fuel Tank Capacity: 125 gallon
  • Fuel Tank Count: 4
  • Water Tank Capacity: 175 gallon
  • Water Tank Count: 2
  • Holding Tank Capacity: 100 gallon
  • Holding Tank Count:1
  • Single Berths: 3
  • Double Berths: 2
  • Cabins: 3
  • Heads: 2

Additional Descriptions

Accommodations

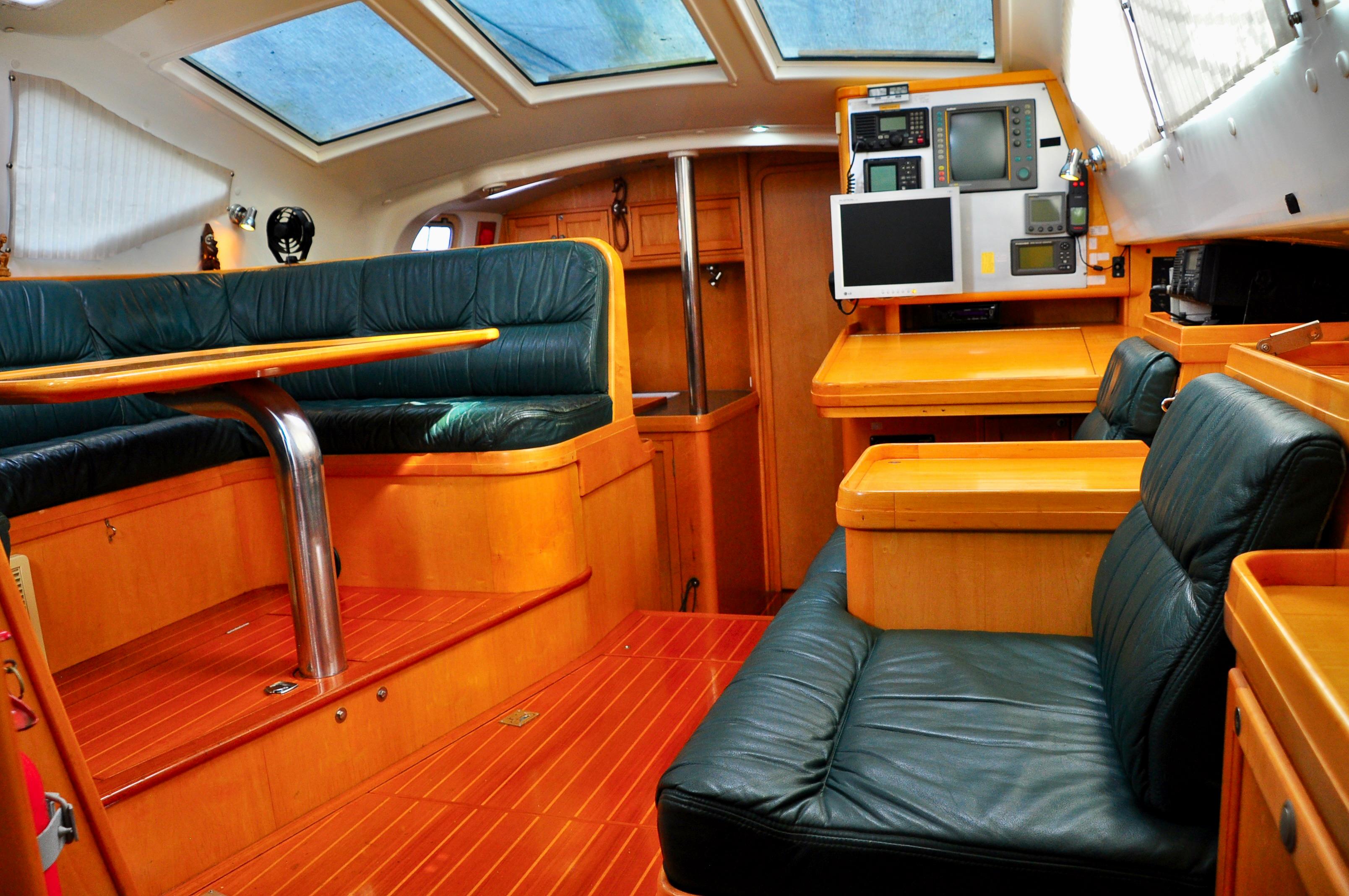

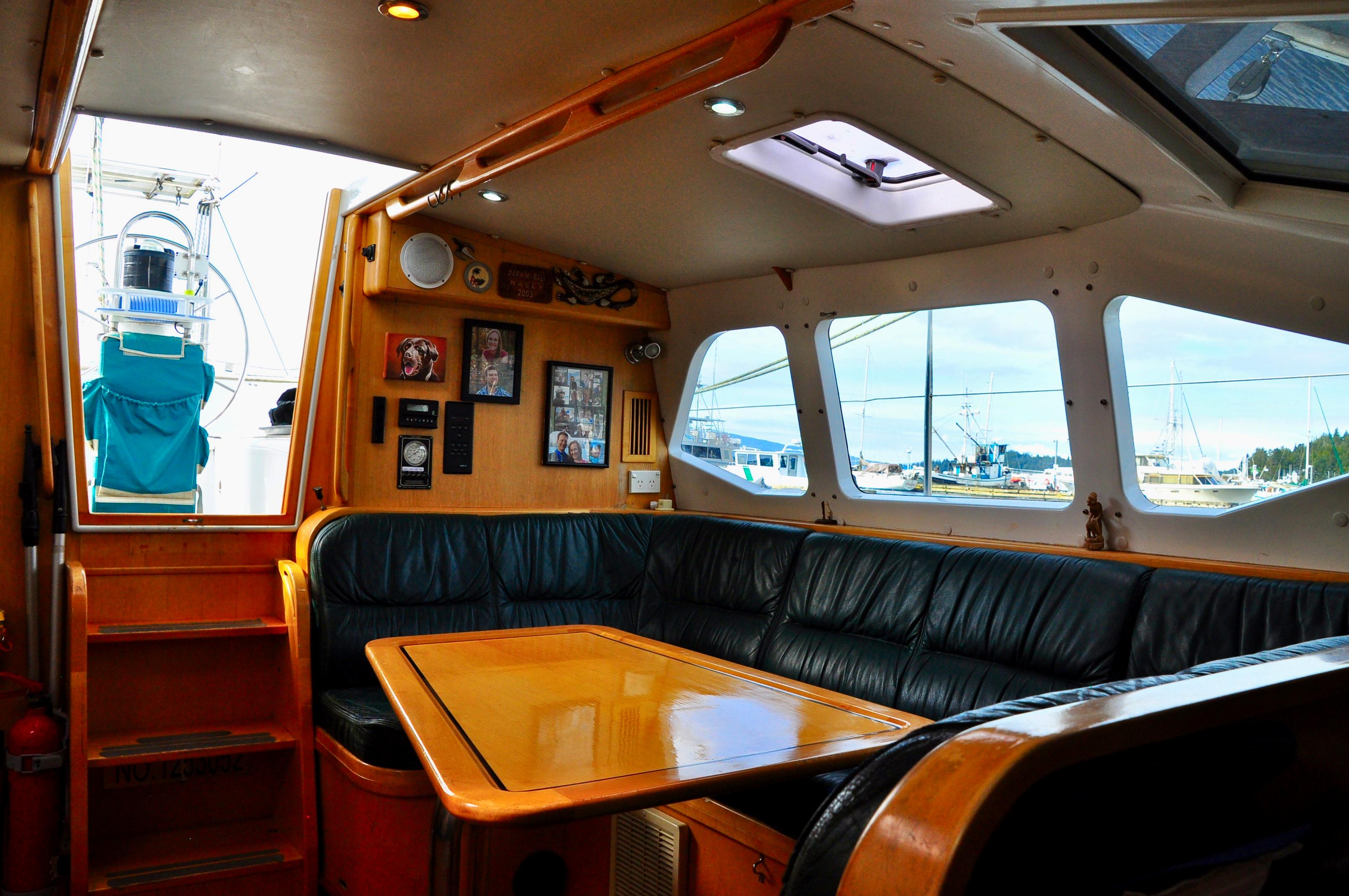

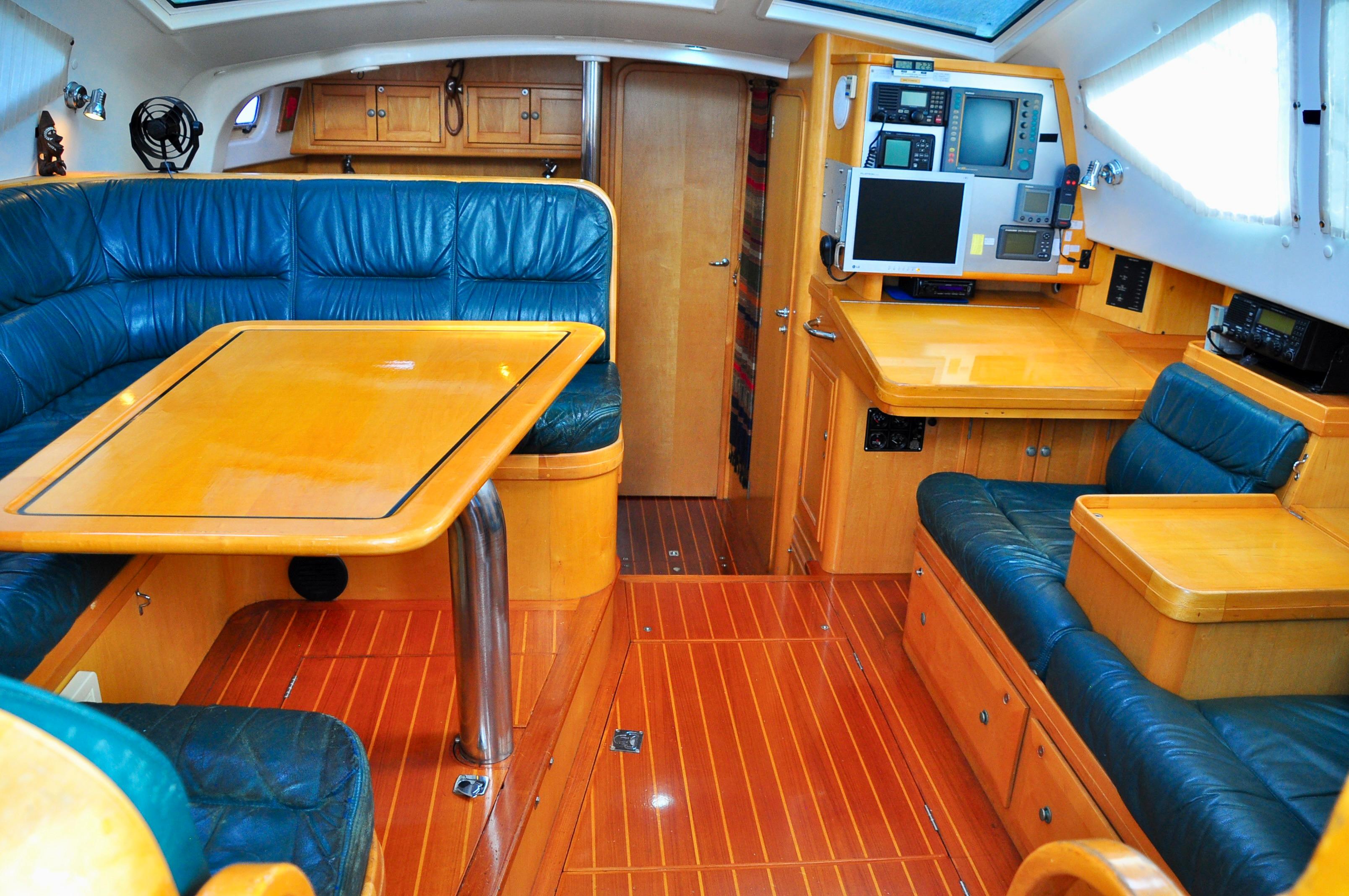

  • Open Salon/Galley/Pilothouse layout with 2 heads plus rear queen size private with ensuite and full stand up shower. Forward Vberth with two 6'6" berths. Additional sea berth in companionway. With the saloon sofa, the yacht can comfortably sleep six adults. Light colored maple interior and rich mahogany with inlaid maple cabin sole throughout

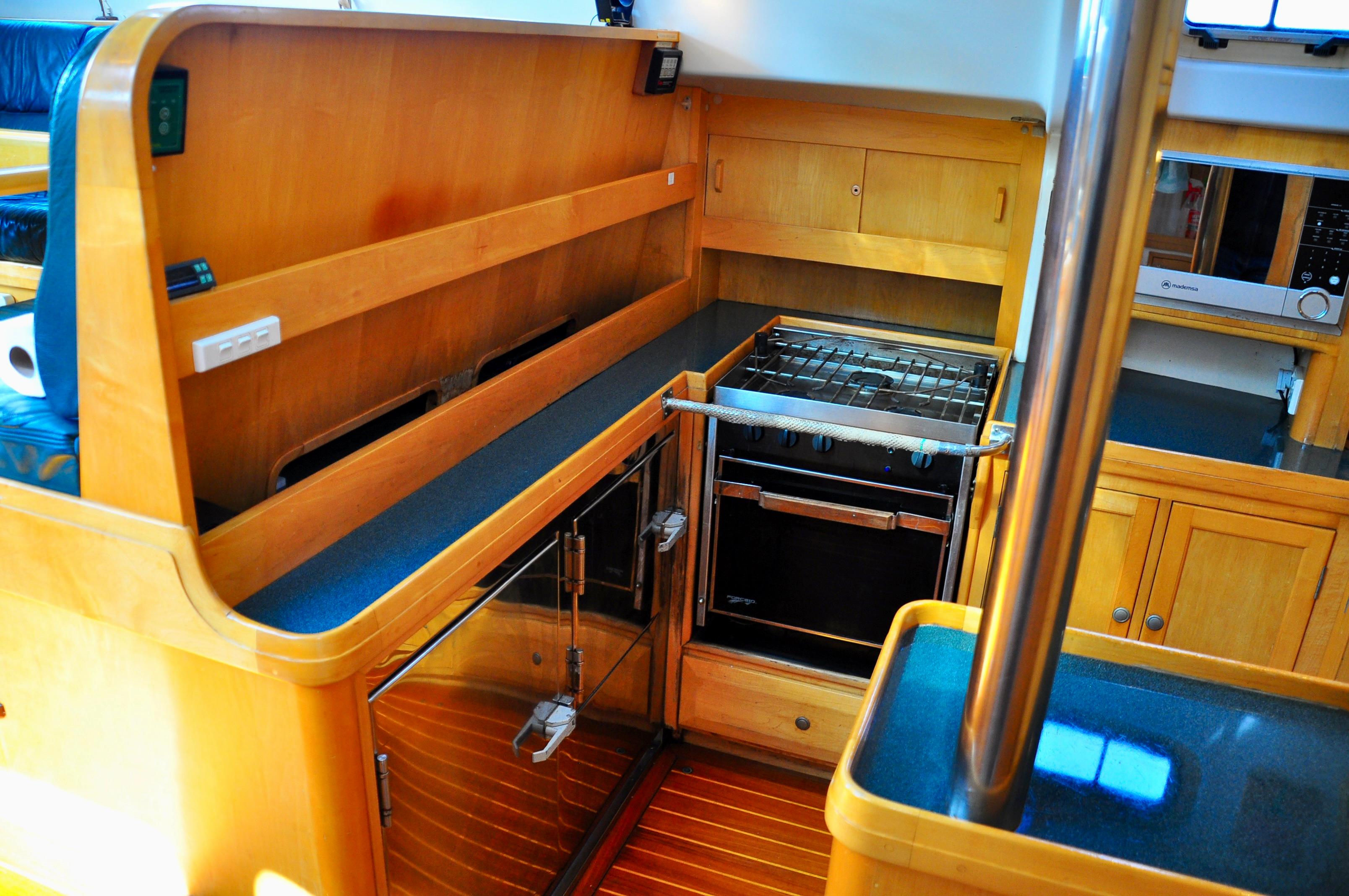

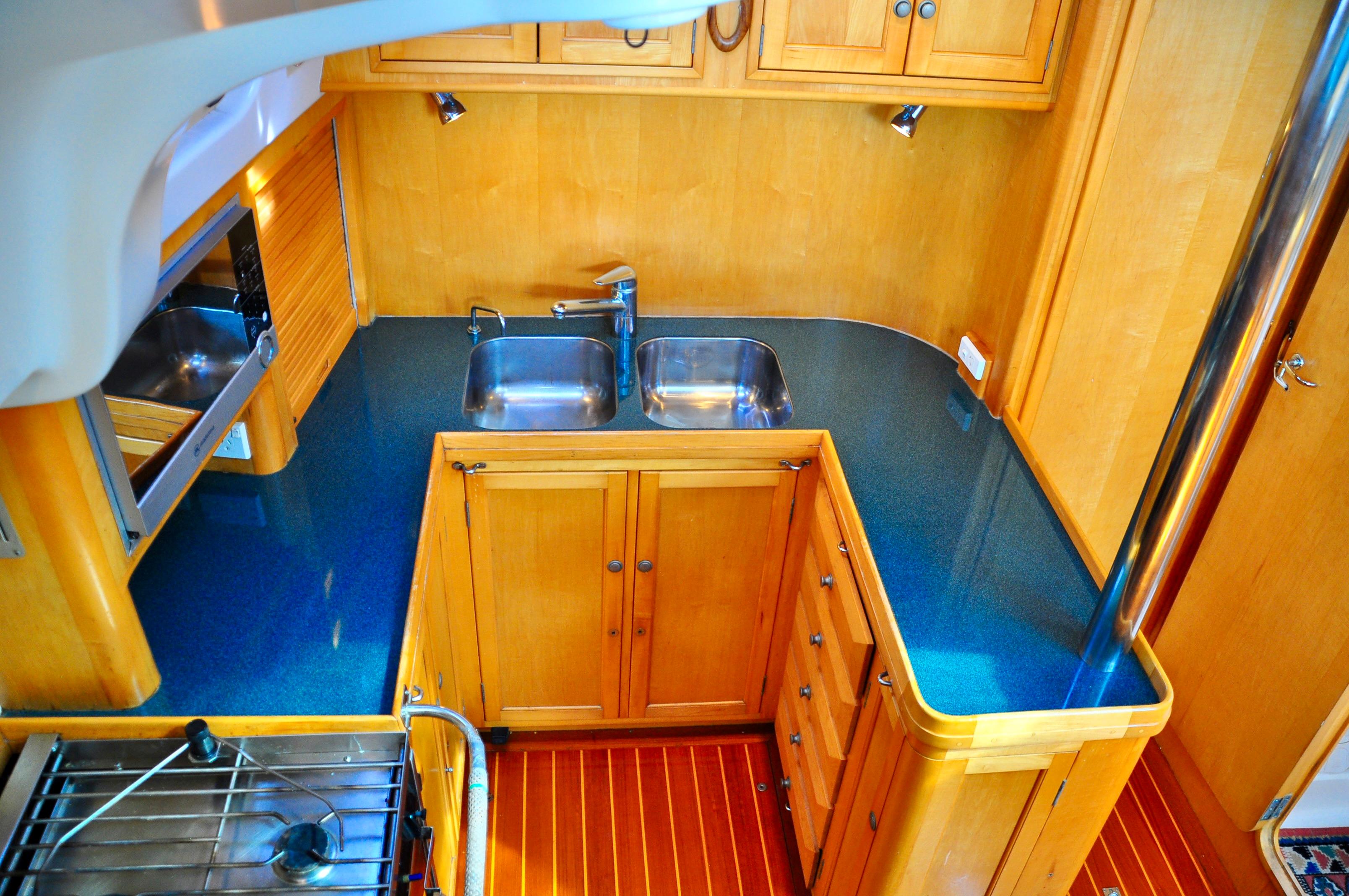

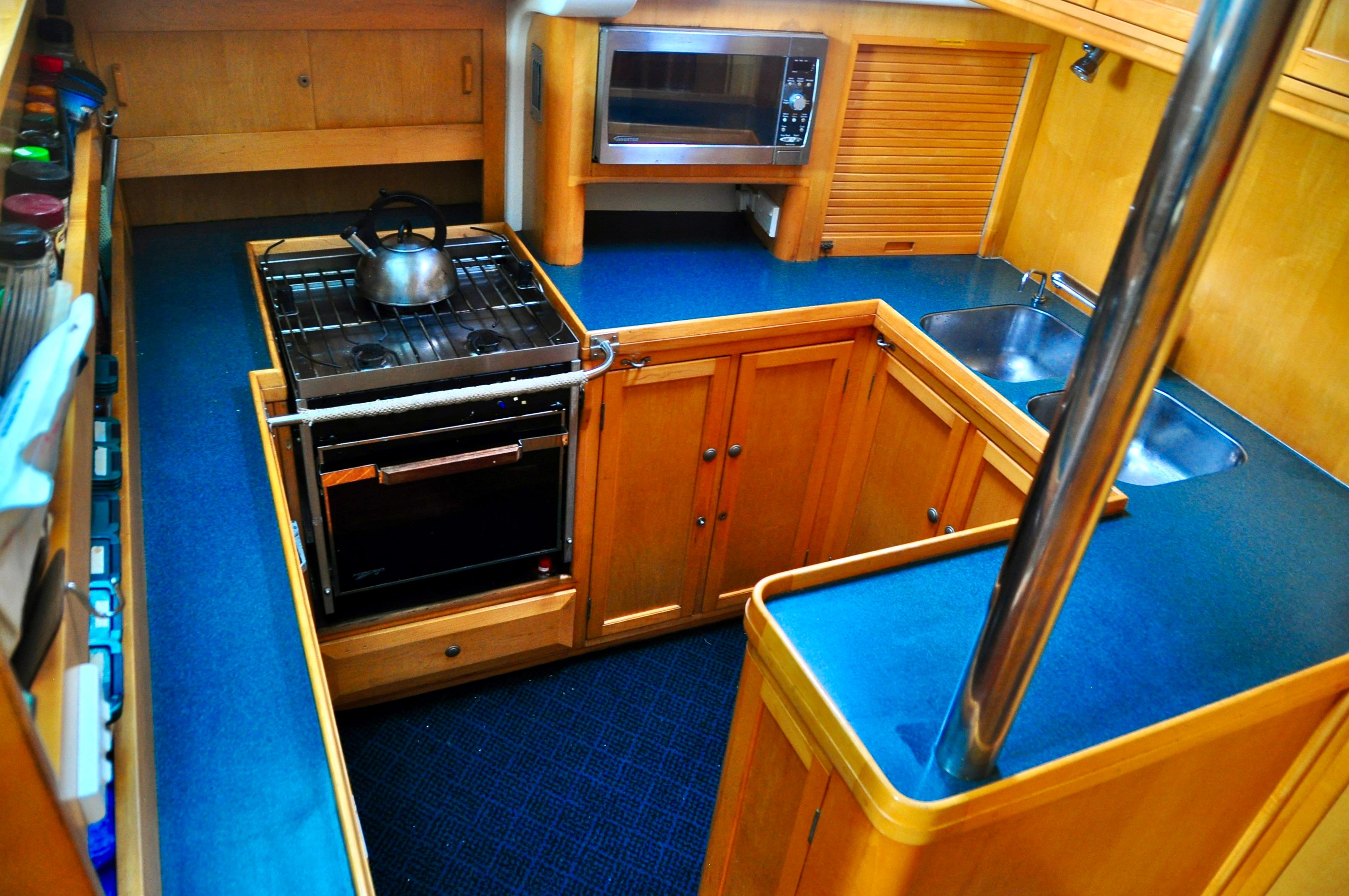

  • U-Shaped Galley for convenience and easy chef access, safe and secure while at sea; multiple storage cupboards, drawers and additional large underfloor storage. Corian counters, double stainless sink. Exceptionally large refrigerator and separate huge freezer big enough for months of provisions.

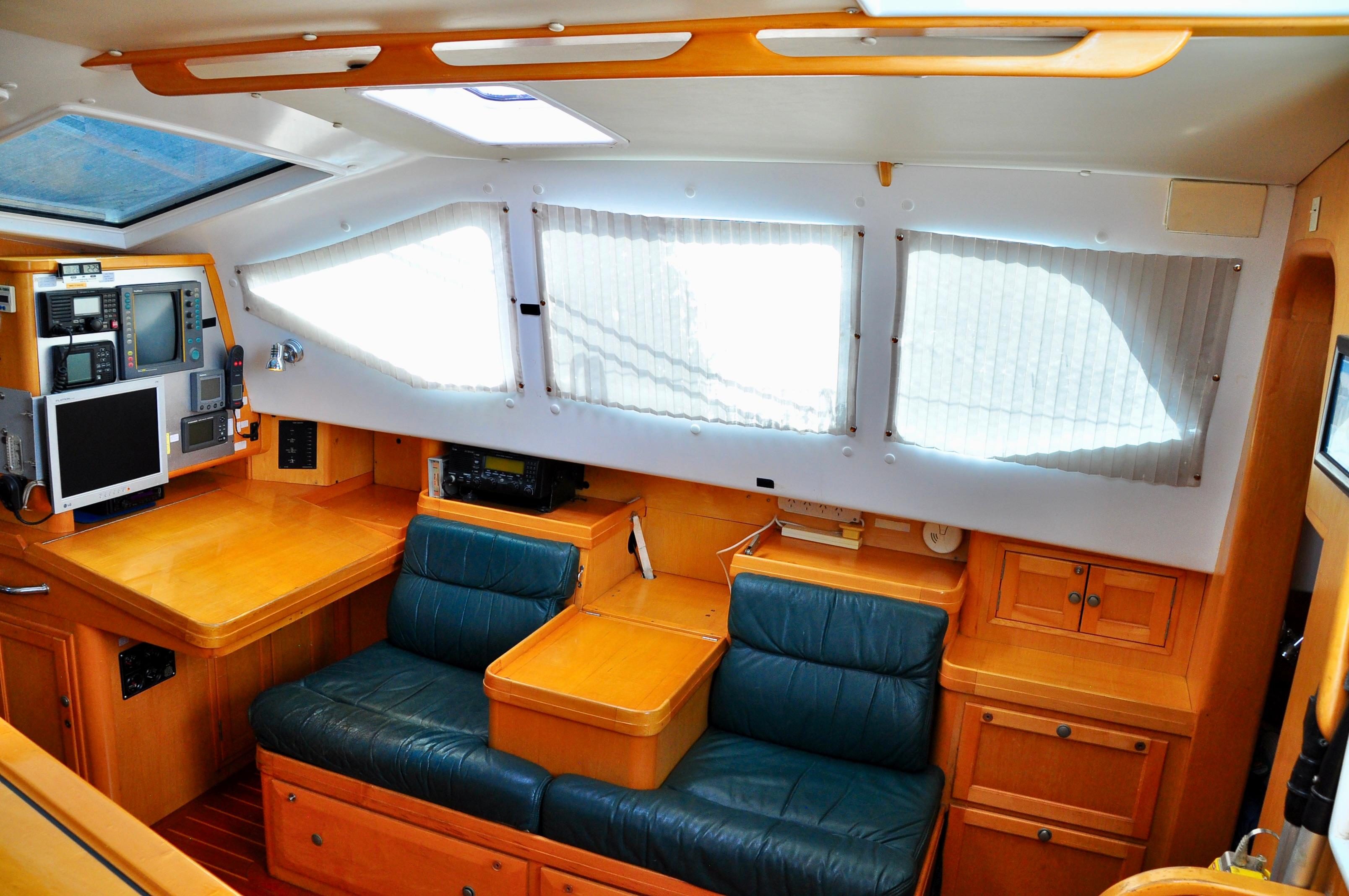

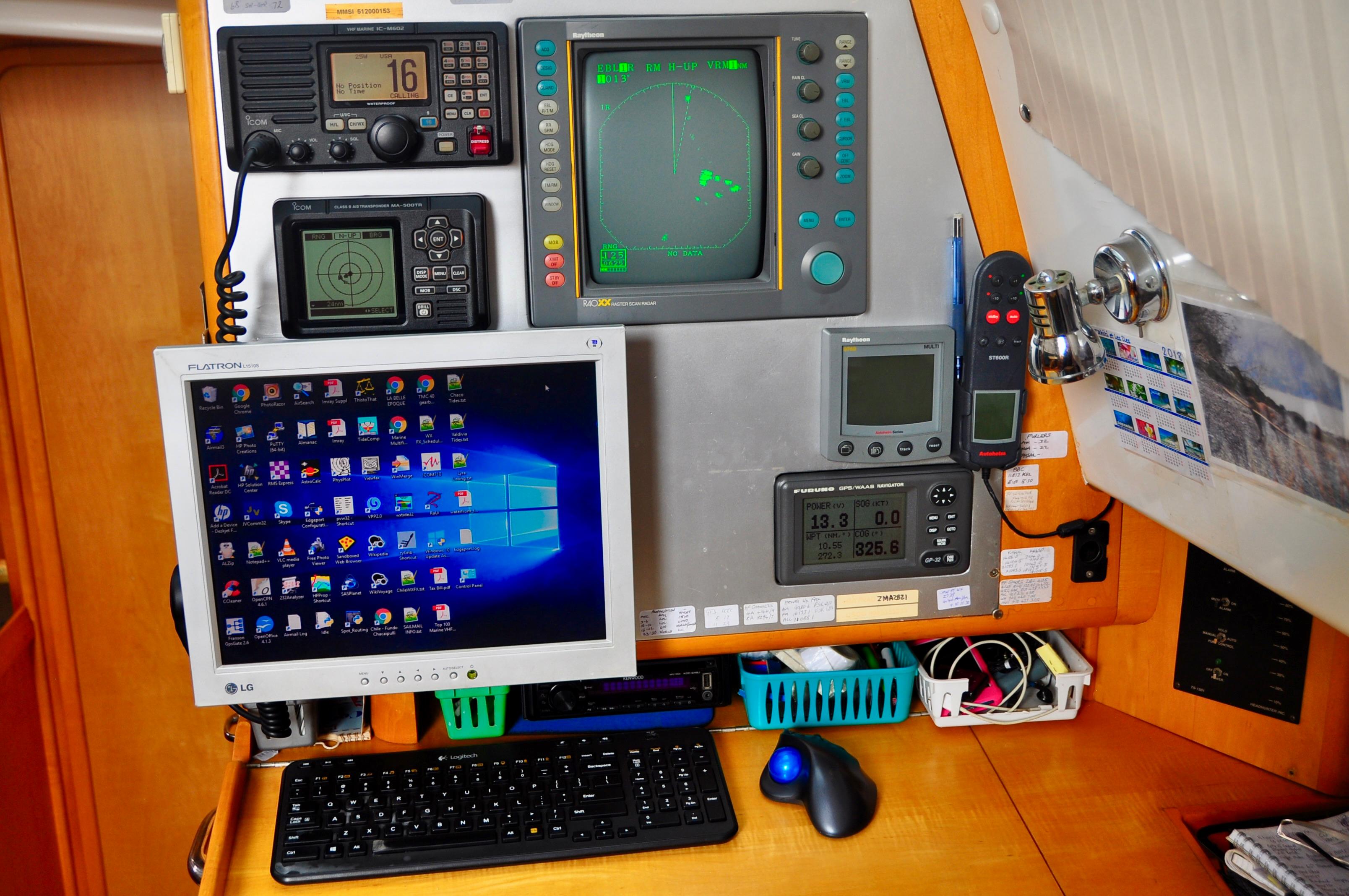

  • Navigation station with full remote monitoring, controls and navigation. Full sized chart table with lift up storage for additional full sized navigation charts and instruments.

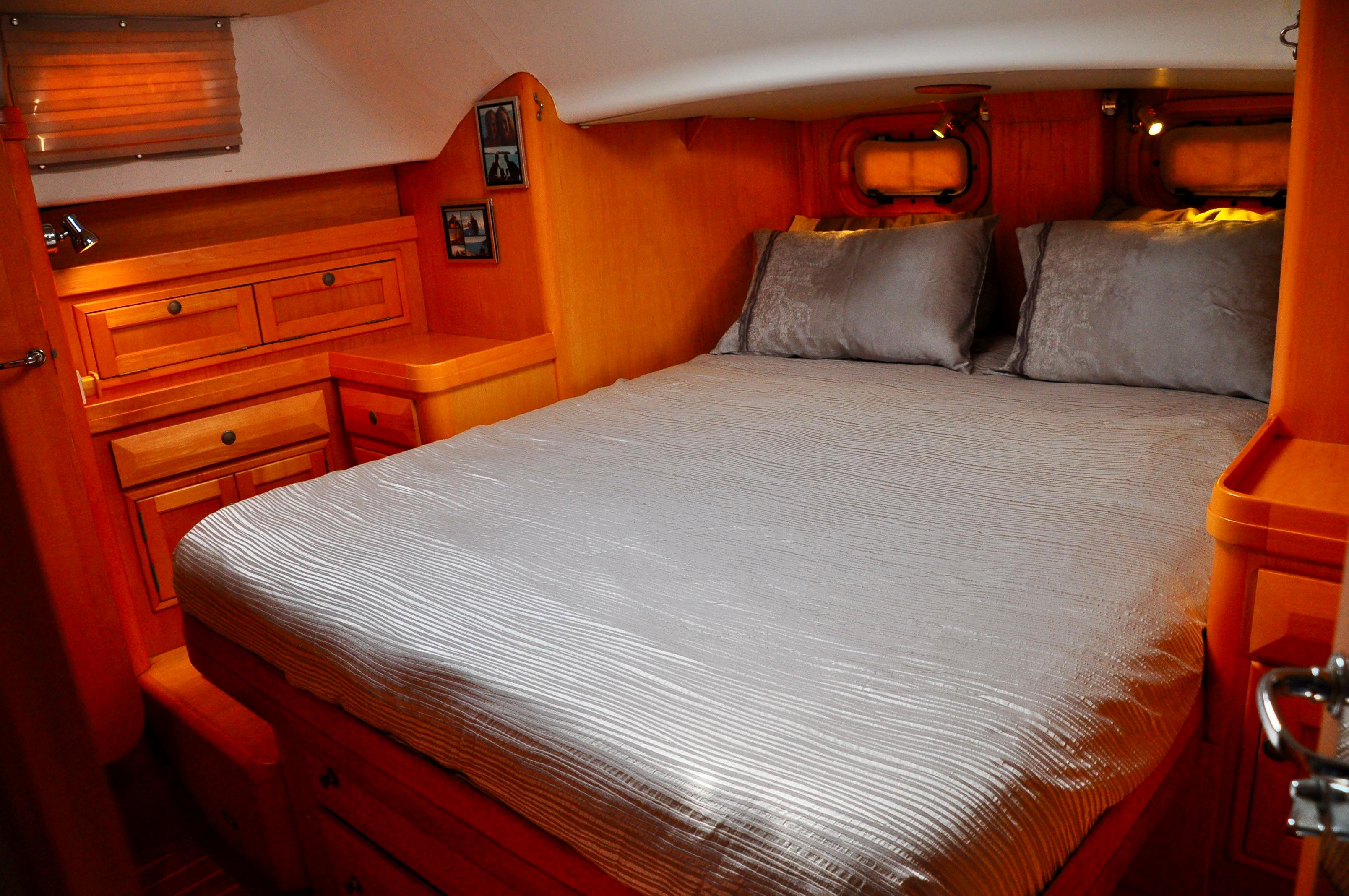

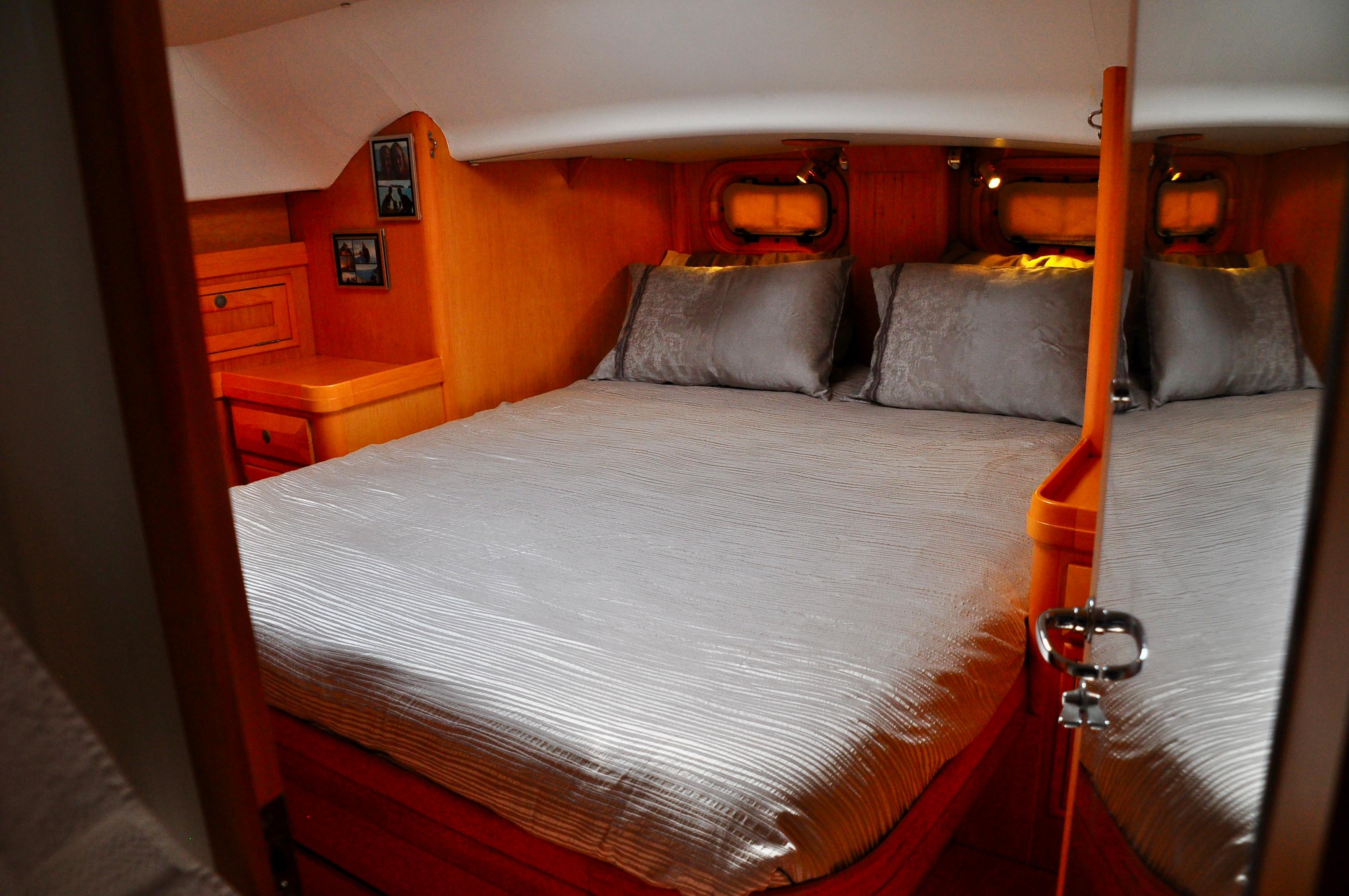

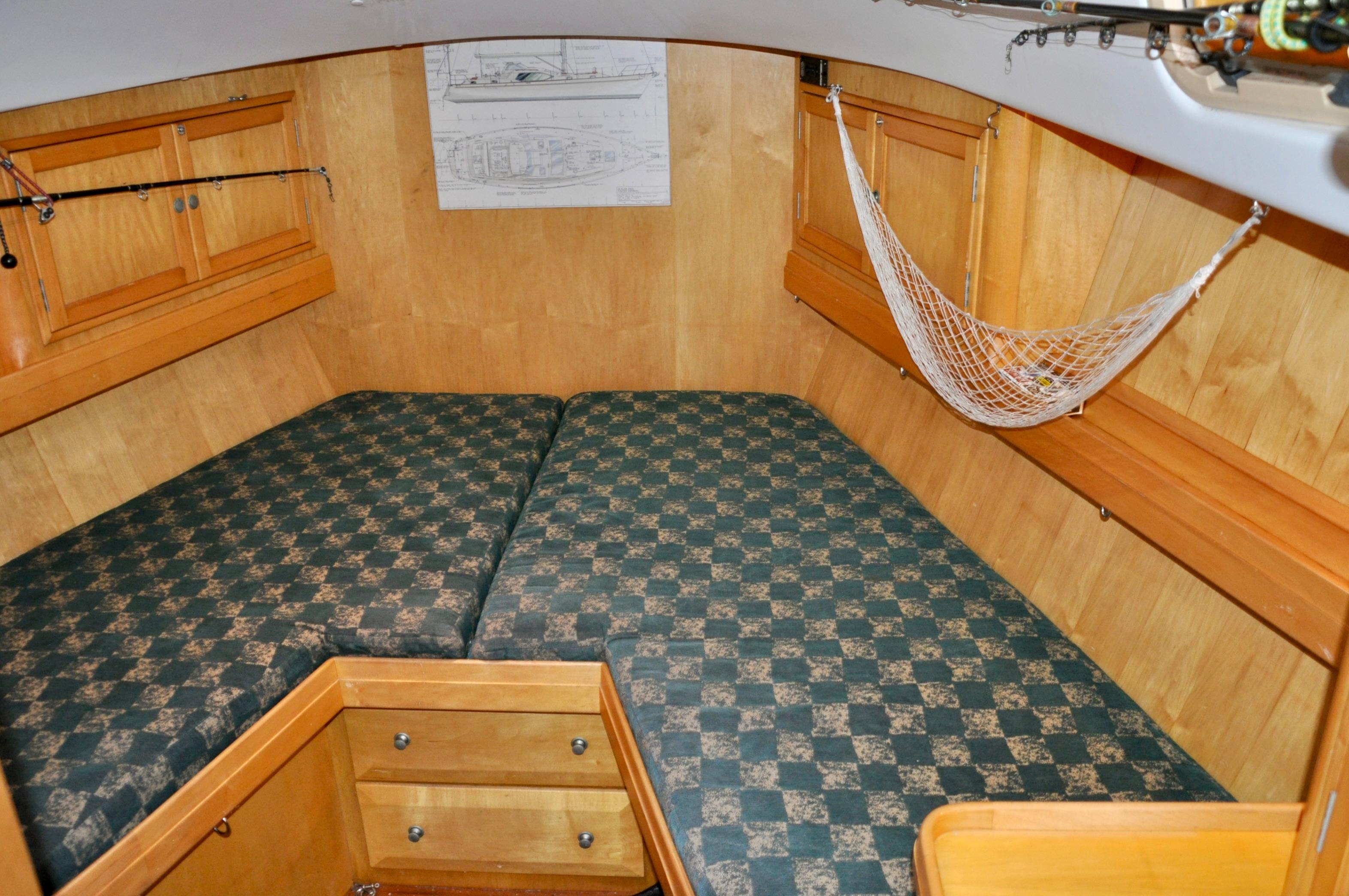

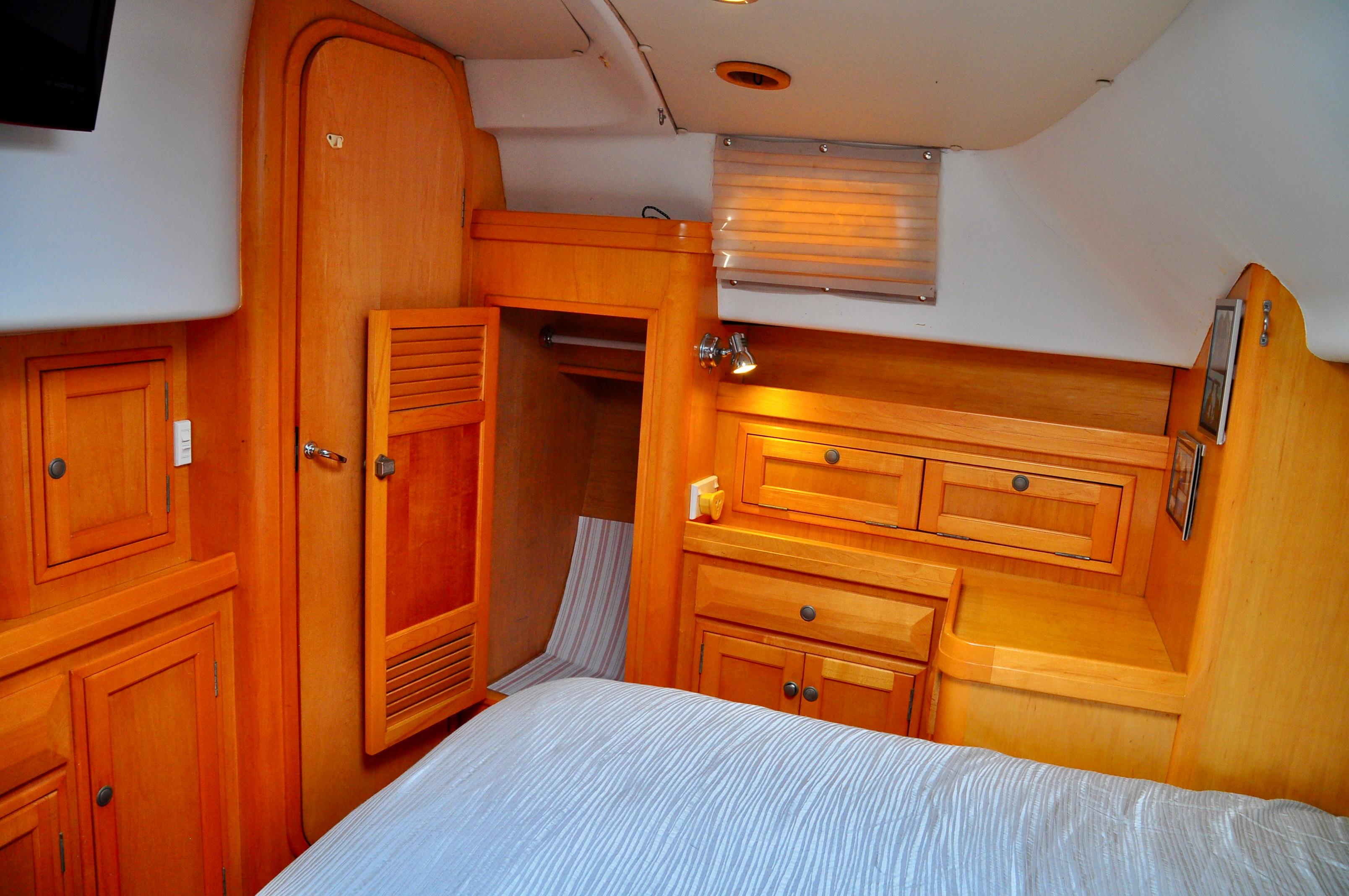

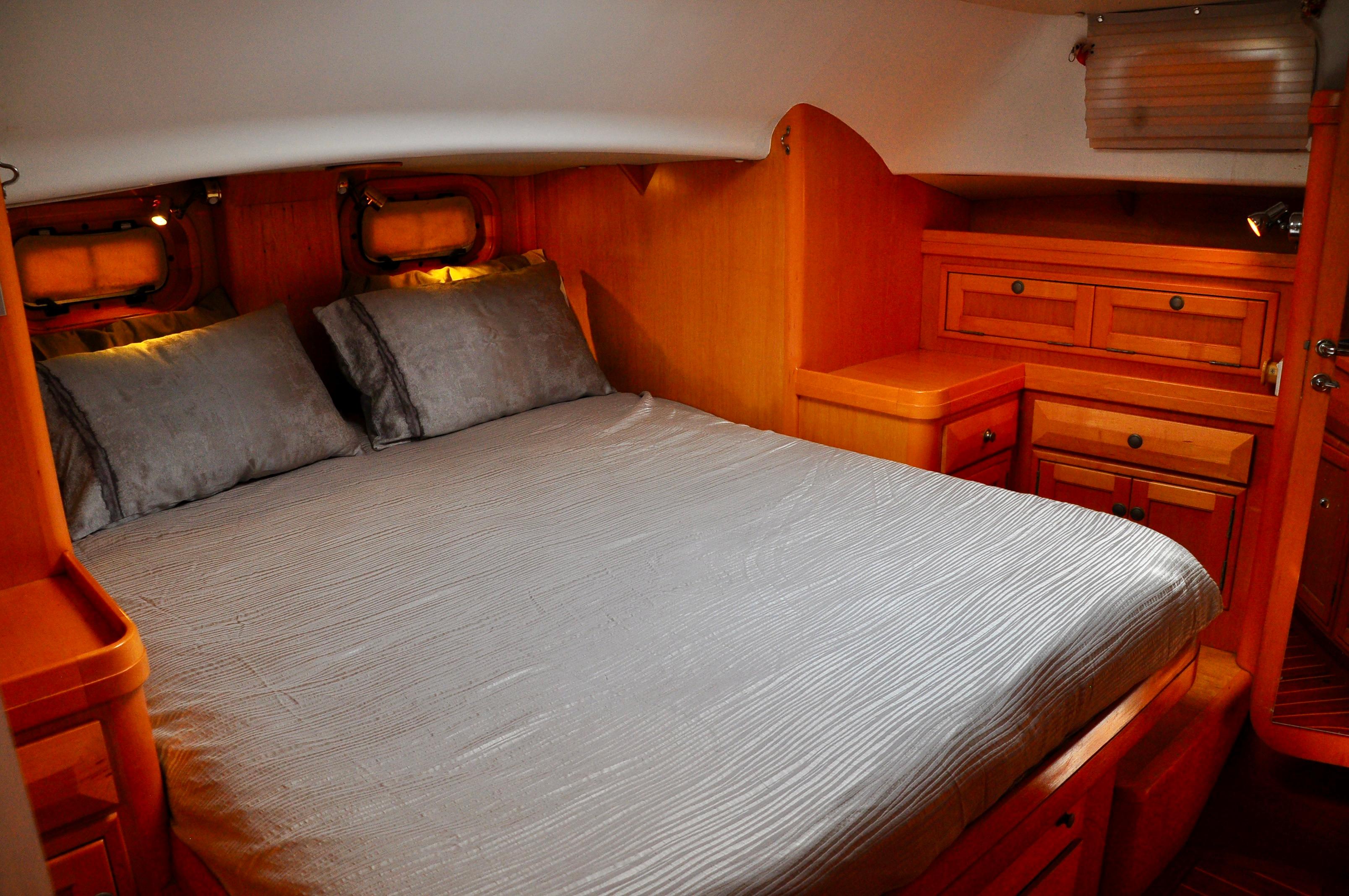

  • Private aft Master Suite w/ dual access queen bed, individual reading lights, overhead hatch and four portholes, two vented closets and multiple storage drawers cupboards. TV. Fan. Private ensuite with fresh water toilet, sink with cabinets. Washing Machine. Fully private, spacious walk-In shower with fibreglass enclosure.

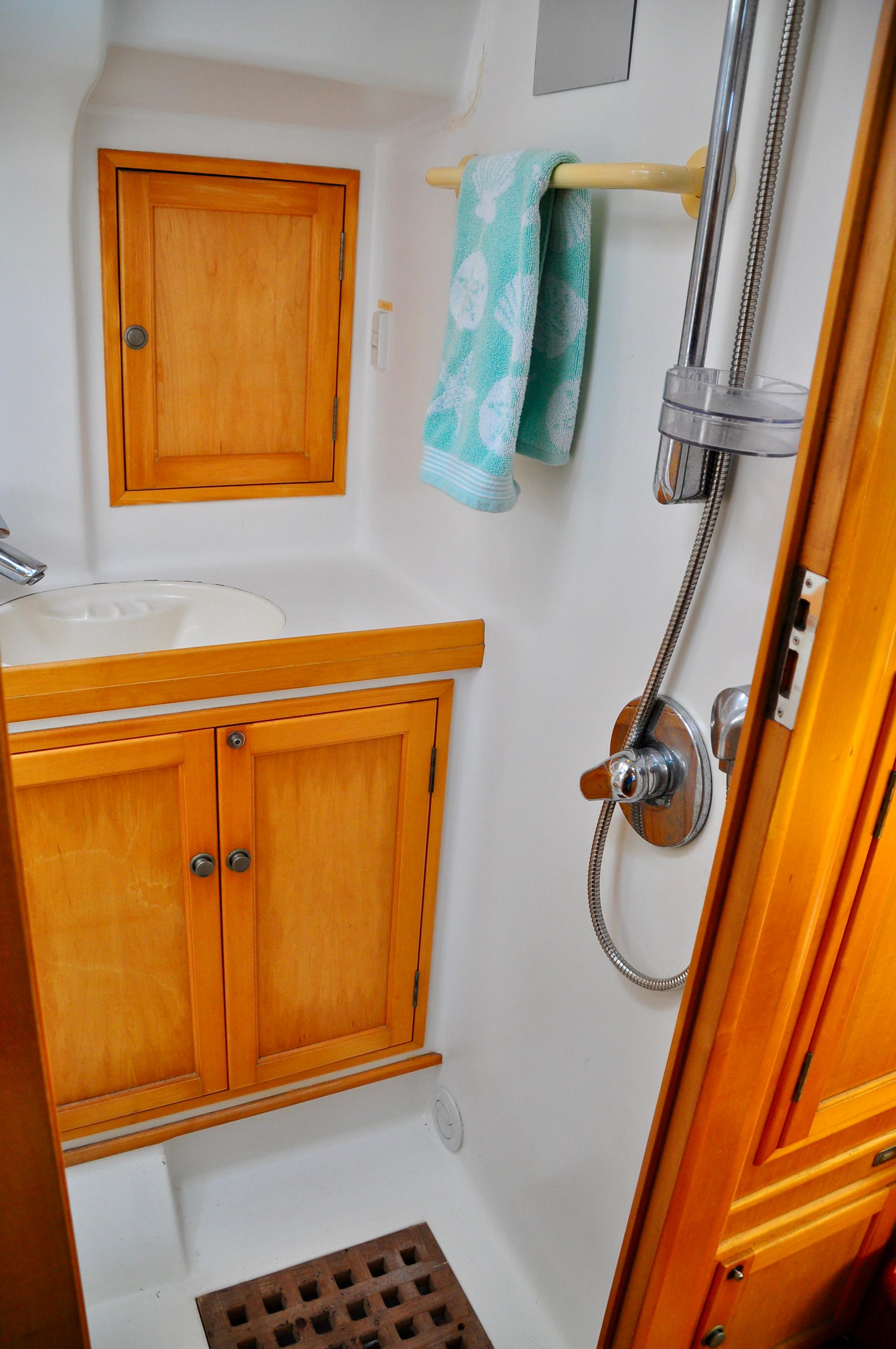

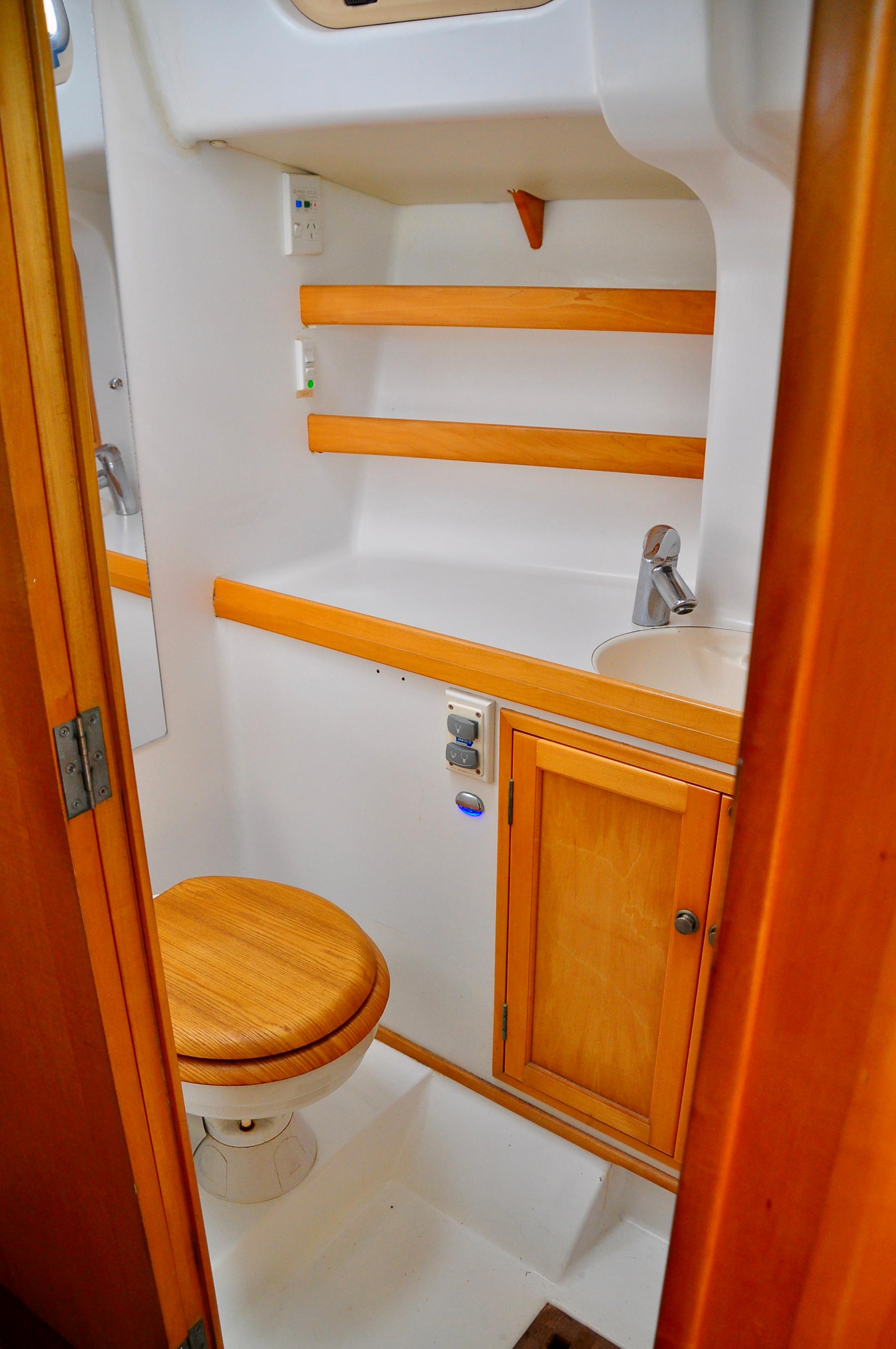

  • Forward head with cabinets, electric freshwater flush toilet, stand up shower and night lighting.

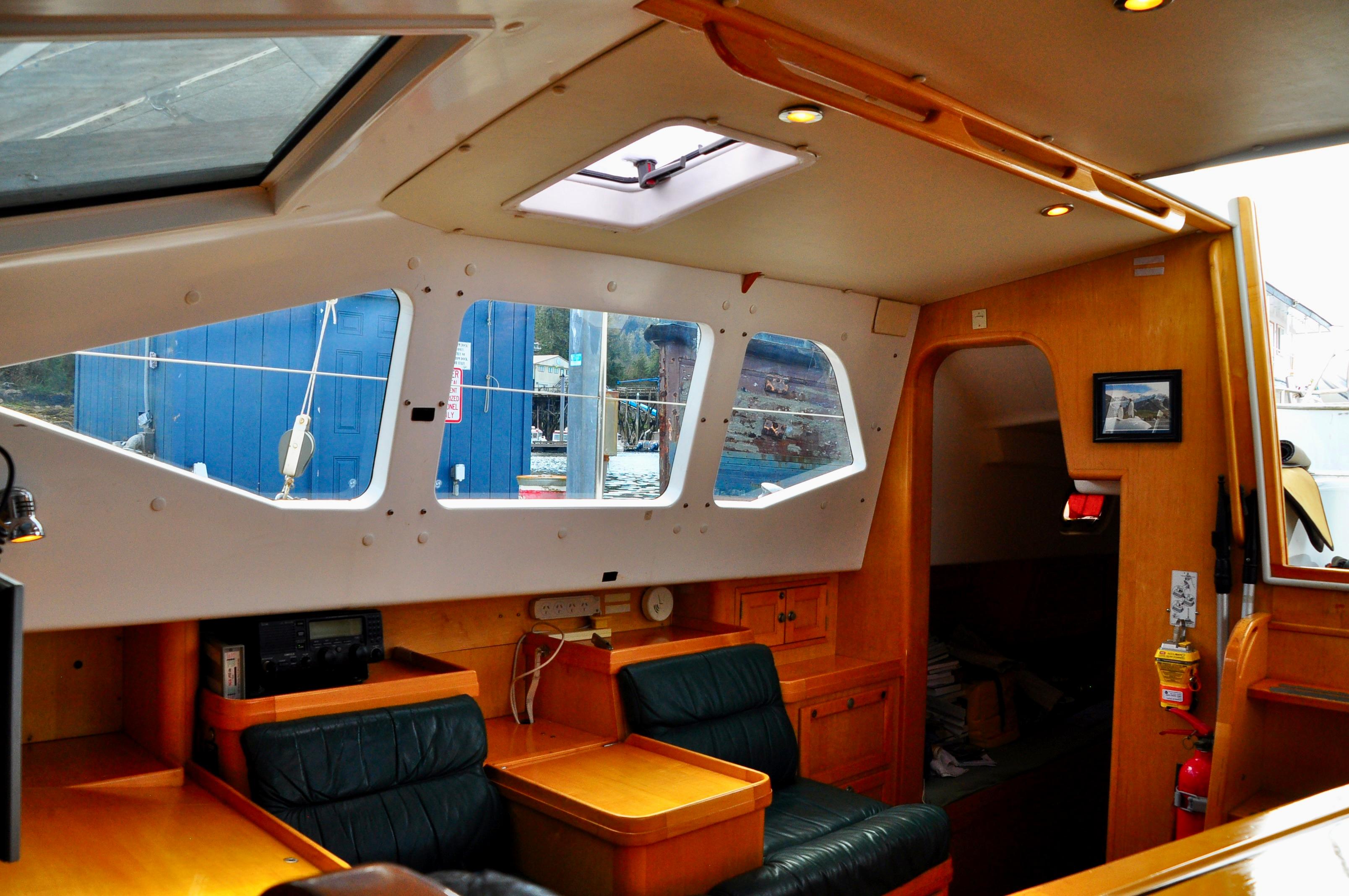

  • Hurricane rated glass with reflective coating in salon windows with acrylic panels to attach as storm protection or additional insulation.

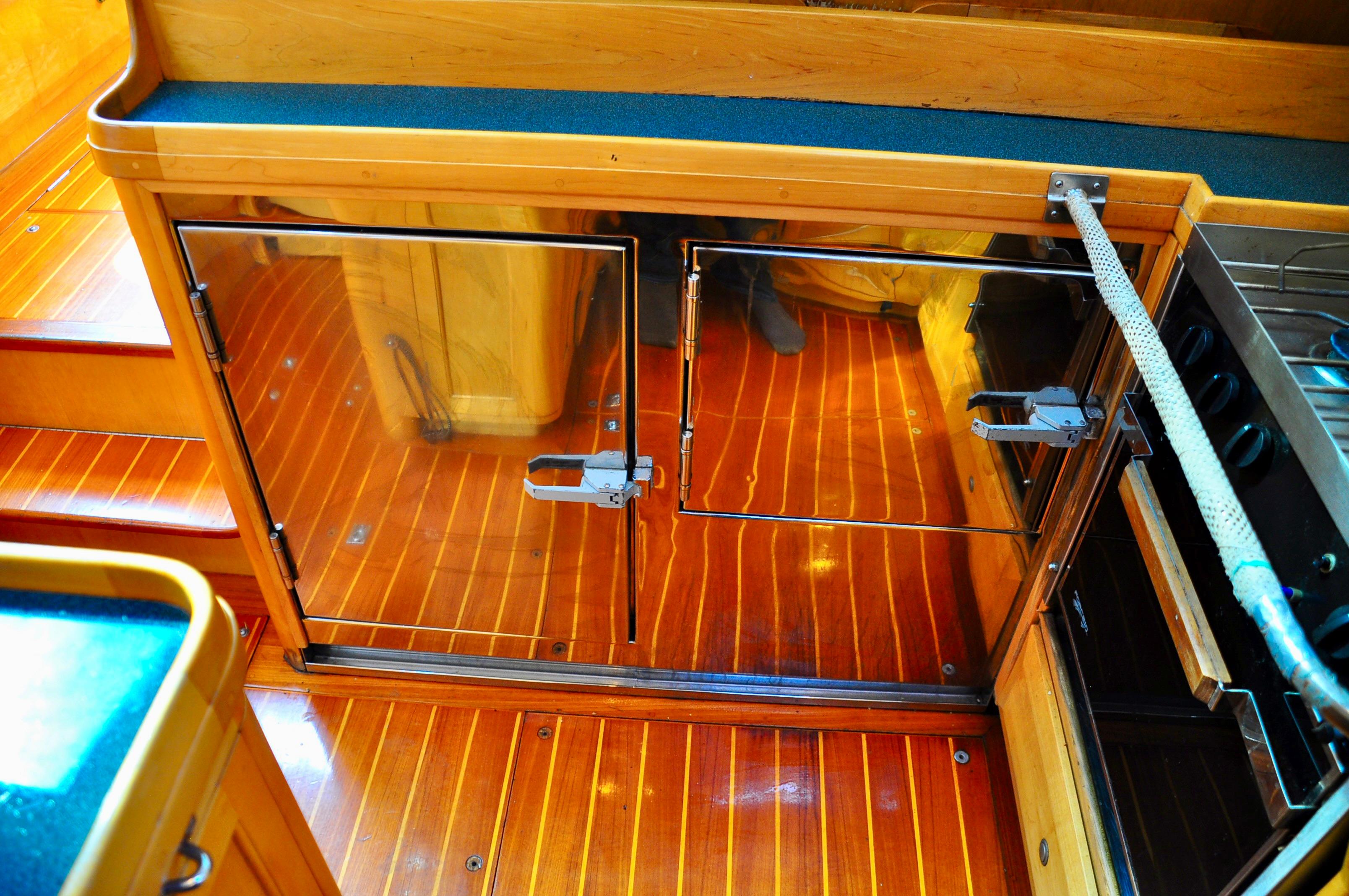

  • Entire sole of main salon hinges up to allow excellent access to all machinery
  • All corners within are rounded to avoid bodily injury while at sea. All floorboards are screwed down and all cabinets can be screwed shut to prevent accidents at sea.
  • Generous and thoughtfully designed amounts of storage throughout the boat
Climate and Environmental Control
  • Webasto ST90 Hydronic Diesel Heating System with 3 Air Handling Units / zones. Winter and summer control valves.

  • Hot water and engine block heater via Webasto heater with zone valves for each

  • CruiseAir Heat Pump for air conditioning (heating and cooling)

  • Engine heat exchanger for saloon while motoring

  • Eberspacher diesel hot air heating

  • 7 Opening ports with screens

  • 4 opening hatches with screens

  • 5 removable dorade vents.

  • Full boat shade cover

  • Hull, deck and superstructure interior insulated with fire retardant insulating foam

    sprayed throughout

Galley, Heads and Plumbing Details
  • SeaRecovery 40 gallon/hour reverse osmosis water maker with dual 40" membranes, 2.5hp electric high pressure pump and 0.5hp feed pump. Two large separate 5 micron oil and sedement pre-filters

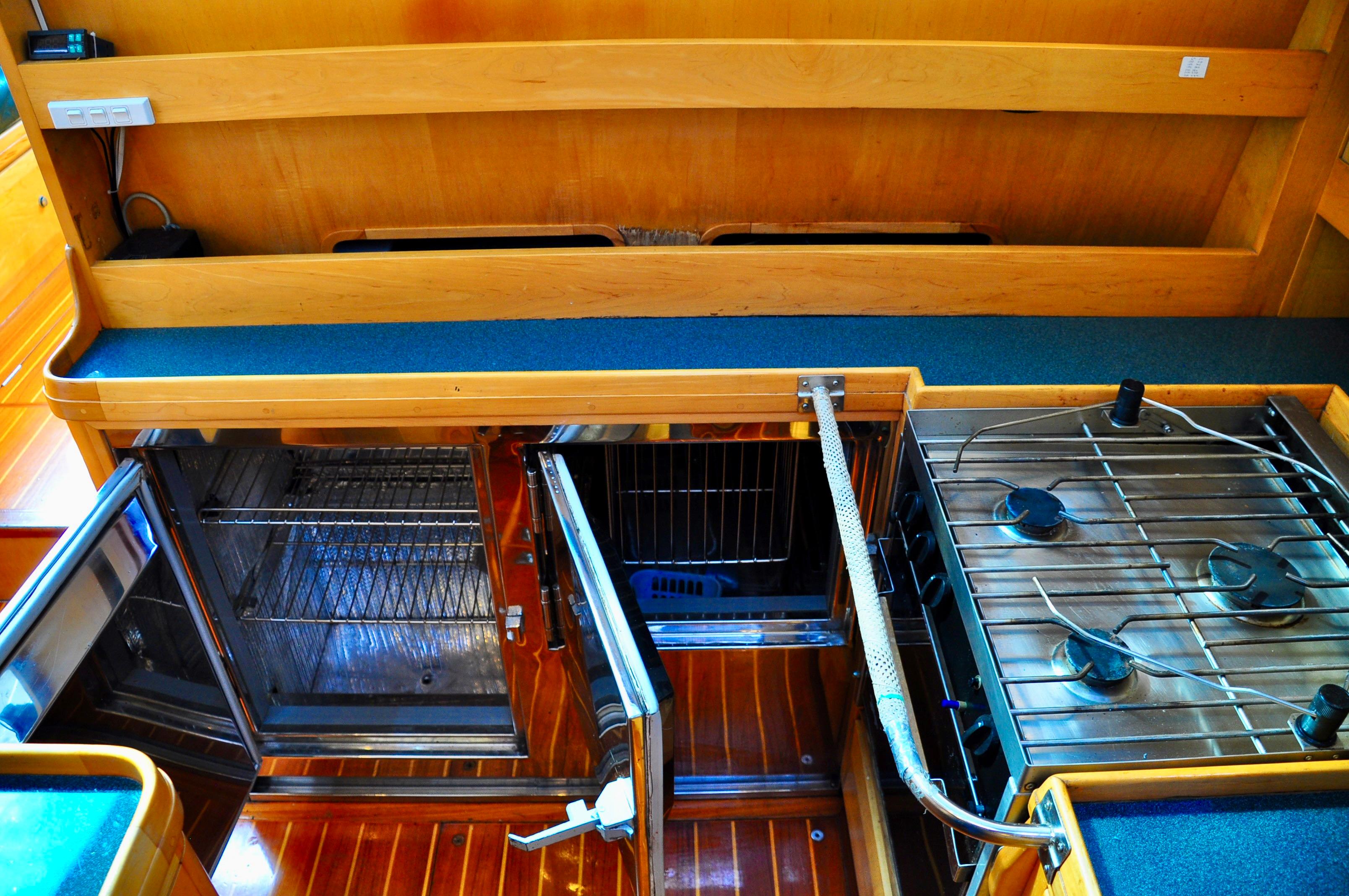

  • Exceptionally large refrigerator and freezer with custom refrigeration unit, two expansion valves and three refrigeration evaporator plates.

  • Force10 3 burner propane stove with oven and broiler

  • 2 20 Lb Propane tanks

  • Mademsa inverting microwave - built in

  • Solid Surface Corian Countertops in galley and heads with sculpted fiddles

  • 350 Gallon fresh water capacity in 2 stainless steel tanks

  • Jabsco hot/cold pressurized water system throughout

  • Hot/cold fresh water shower on aft swim platform

  • 1 Electric head, one manual head - both flush with fresh water, not sea water

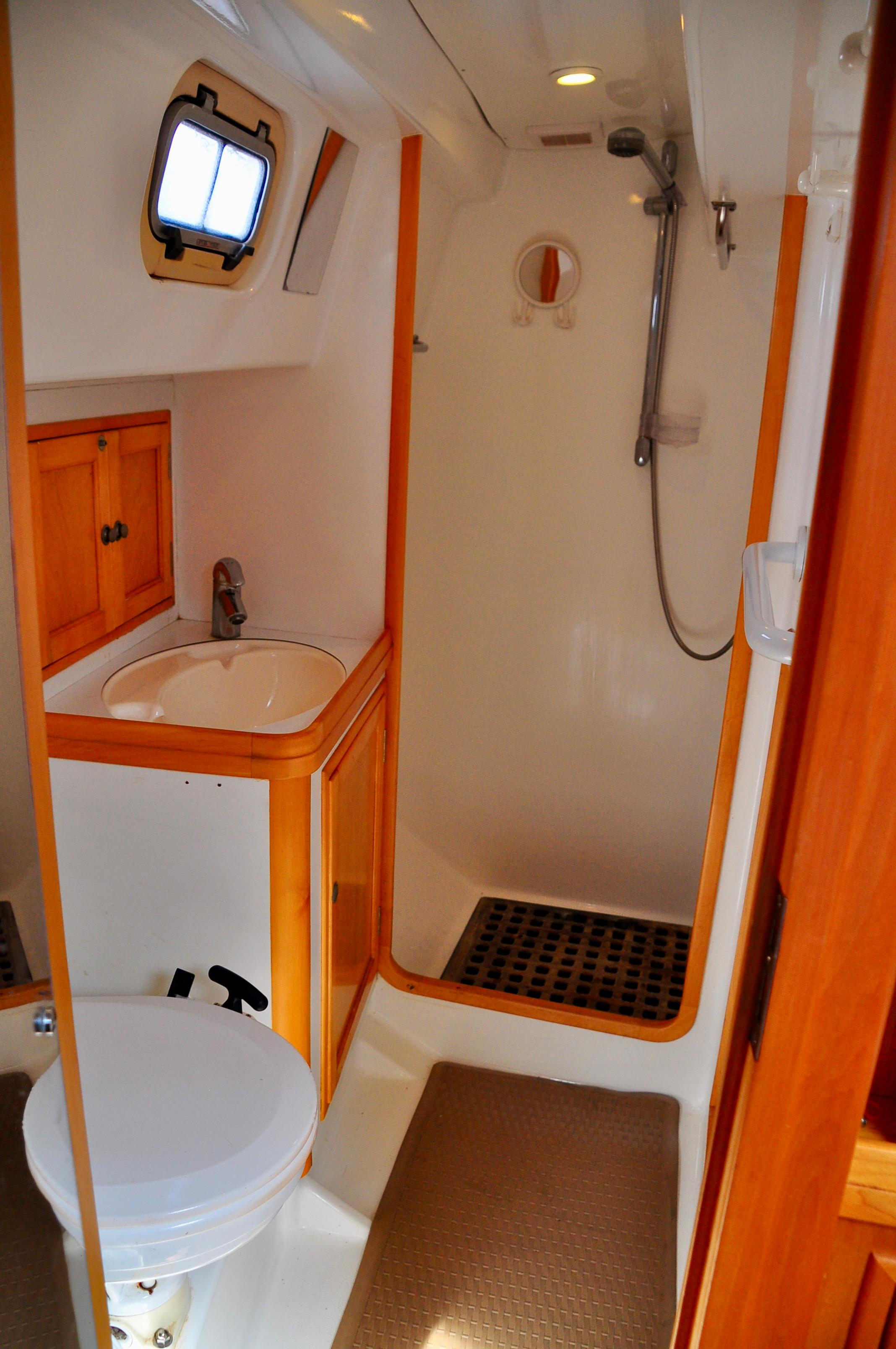

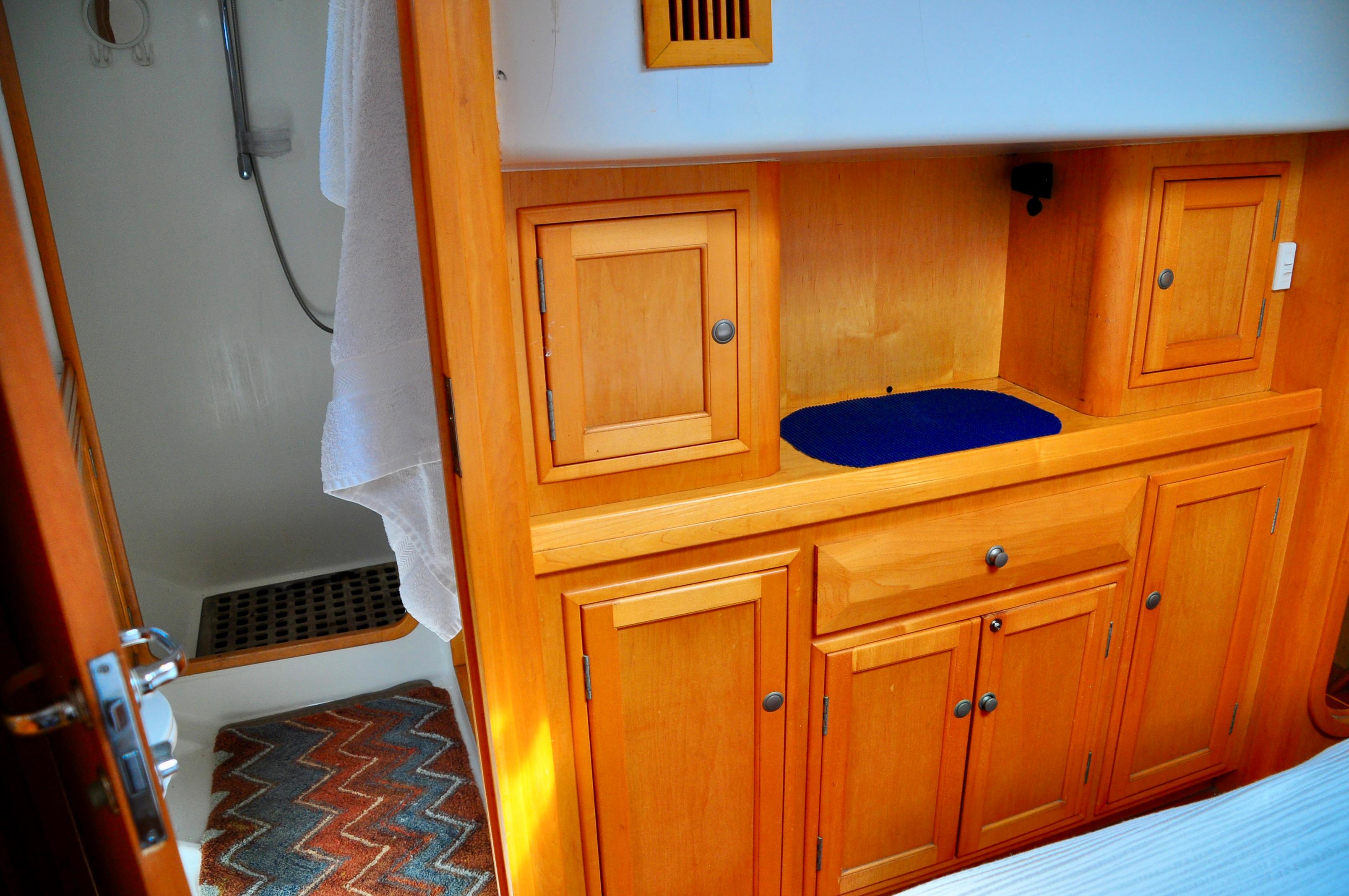

  • Separate fiberglass stall shower in rear owners head

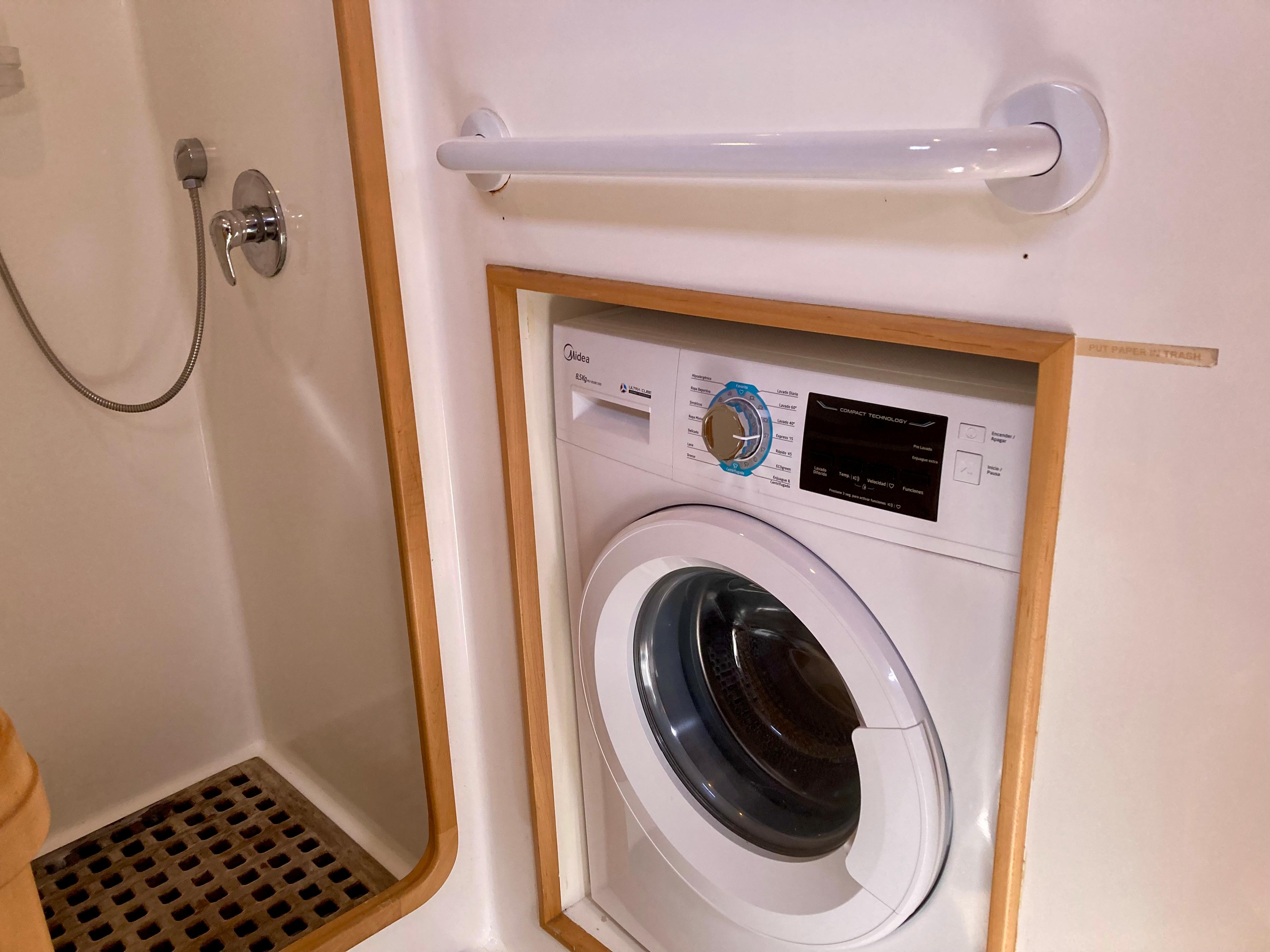

  • Midea Ultracube Washing machine with digital controls built into master ensuite

  • Black water holding tank with macerator pump - 50 gallons

  • Gray water tank - 50 gallons

  • 4 below waterline thru hull fittings with marelon seacocks

  • Tank-Tender fuel/water/holding tanks level; gauge

Entertainment
  • Kenwood AM/FM Radio / CD player with 3 Bose Speakers

  • TV with CD Player and external hard drives. Extensive movie library.

Electrical System
  • 8 KW Nothern Lights Generator w/ 2795 hours

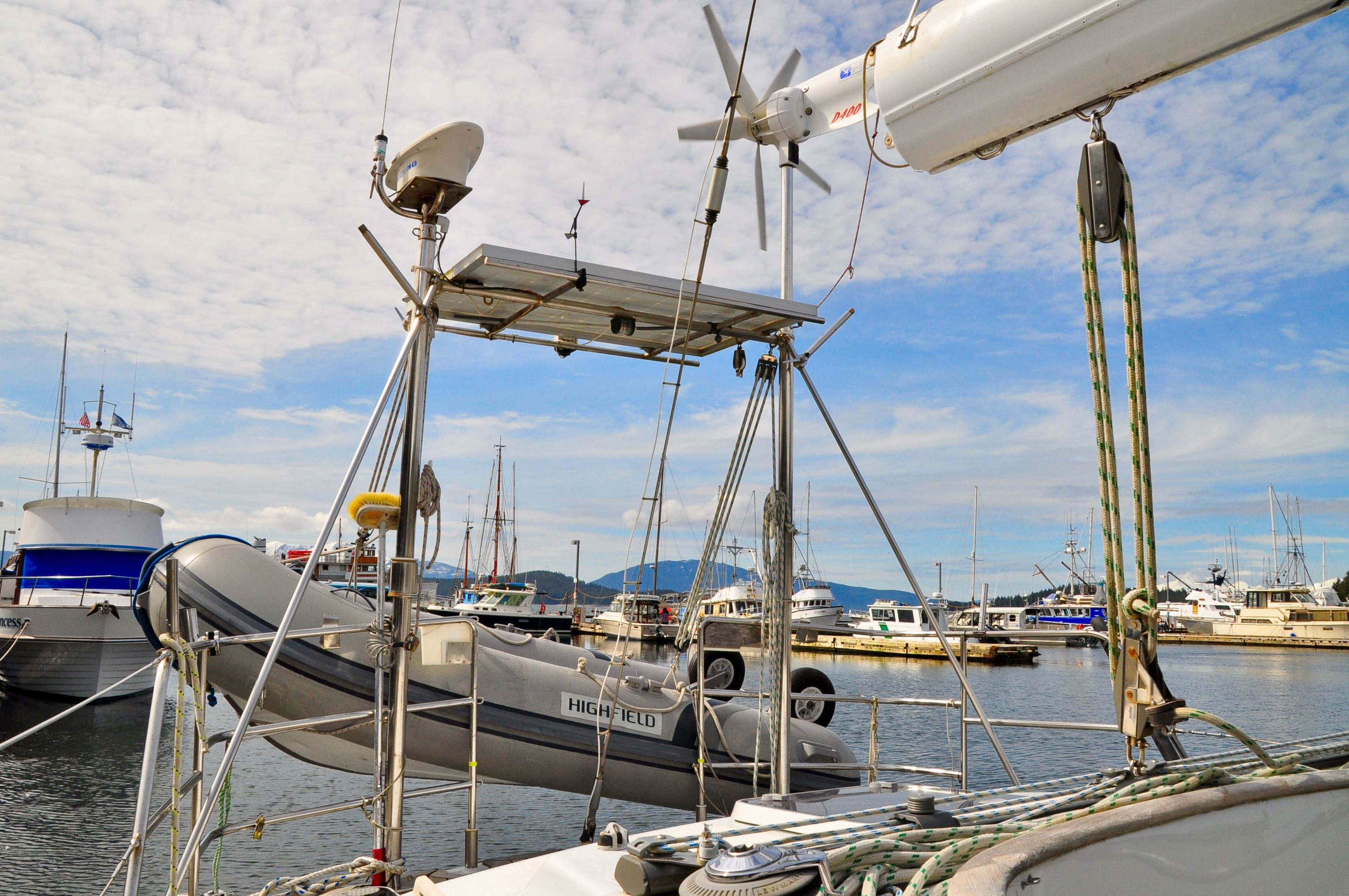

  • 125W 24v solar panel mounted on arch with PWM regulator

  • EclecticEnergy D400 5 blade 400w wind generator with Flexcharge 25aNCHC

    controller driving ultra high amp mercury switched contactors for overspeed protection

  • Heart Freedom 20 24v/250v Modified Sine Wave Inverter/Charger

  • Heart 2500W 24v/250v Sine Wave Inverter

  • Mastervolt IVC 8772 12v/12v converter for stabilised instrument supply

  • Mastervolt IVC 8772 24v/24v converter for stabilised autopilot supply

  • 8Group 31 AGM House Batteries

  • 2 Group 31 AGM main engine starting batteries

  • Heart Link 1000 battery monitor / charge controller

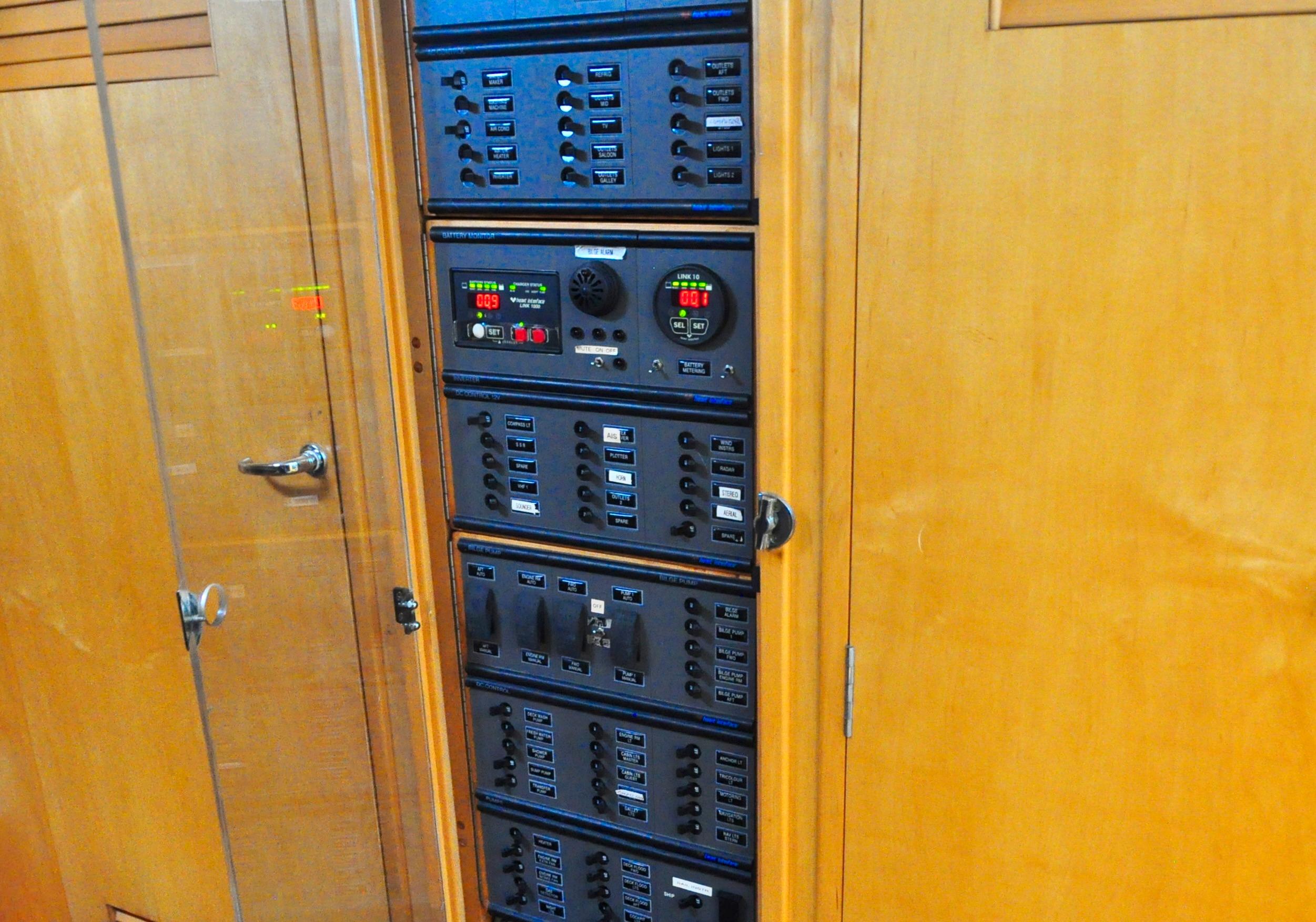

  • Hart EVI AC & DC Circuit breaker panels with meters

  • 250v, 24v 12v systems. 115V via portable power transformer

  • Victron 3.6KW Isolation Transformer

  • Ample Technologies NextStep regulators for engine and generator alternators.

  • Stator RMC-142D Earth Fault Relay for Generator<>A/C bus protection

  • 30A Shore power receptacle w/ 50' power cord

  • 3 12V DC Outlets

  • 10 250V AC outlets including 6 GFCI

  • Tank Sentry TS1501 monitor for diesel day tank with capacitance level probe (Princeton Technologies) and Jabsco lift pump giving automatic level control

  • Hart Systems Tank Tender pneumatic level monitoring of main diesel and water tanks

  • Vacuum Cleaner, blender

  • All batteries, electrics and electronics are in a dry closet separate from the machinery space and protected from all fresh water and salt water mishaps. An amazingly important issue in a sailboat where equipment is typically jammed together.

Navigation Electronics
  • Raytheon R40XX 4KW radar with alarm - mast mounted

  • Furuno GPS-32 GPS at nav station

  • Furuno SC30 Satellite GPS and Heading Indicator

  • ICOM MA-500TR AIS Transponder with independent GPS, display and chart overlay

  • Raytheon ST60 Depth Sounder in cockpit

  • Raytheon ST60 Wind Indicator in cockpit

  • Raytheon ST60 Seed Indicator in cockpit

  • Raytheon ST60 Course compass in cockpit

  • Probe Interphase Twin Scope forward looking sonar

  • Raytheon ST 7000+ Autopilot in cockpit with additional control at nav station

  • Raytheon ST60 Multifunction display at nav station

  • Sunnto Compass on Steering Pedestal in cockpit

  • OpenCPN, Maxsea, SAS Planet charting software with massive digital chart library

  • Custom Satellite navigation chart images of all South Pacific Atholl passes

  • Custom Satellite navigation chart images of anchorages in Chilean Archipeligo and Beagle Chanel

  • Paper navigation charts of all of the Pacific, Aust, NZ

  • Library of cruising guides and books related to South America, South Pacific, Alaska

  • Prosser Weathertrend Digital Barometer

Communications Systems
  • ICOM M602 25watt VHF at nav station with Remote Mic for cockpit and masthead/arch antenna

  • ICOM IC M710 SSB/ Ham radio with automatic tuner .

  • PTC lle Modem with PC-lll software upgrade for weather fax and email

  • ICOM MA-500TR AIS transponder with masthead/arch antenna

  • Standard Horizon submersible VHF Radio

  • Computer aided communication via AirMail, SailMail and RMSExpress.

Propulsion and Auxiliary Systems

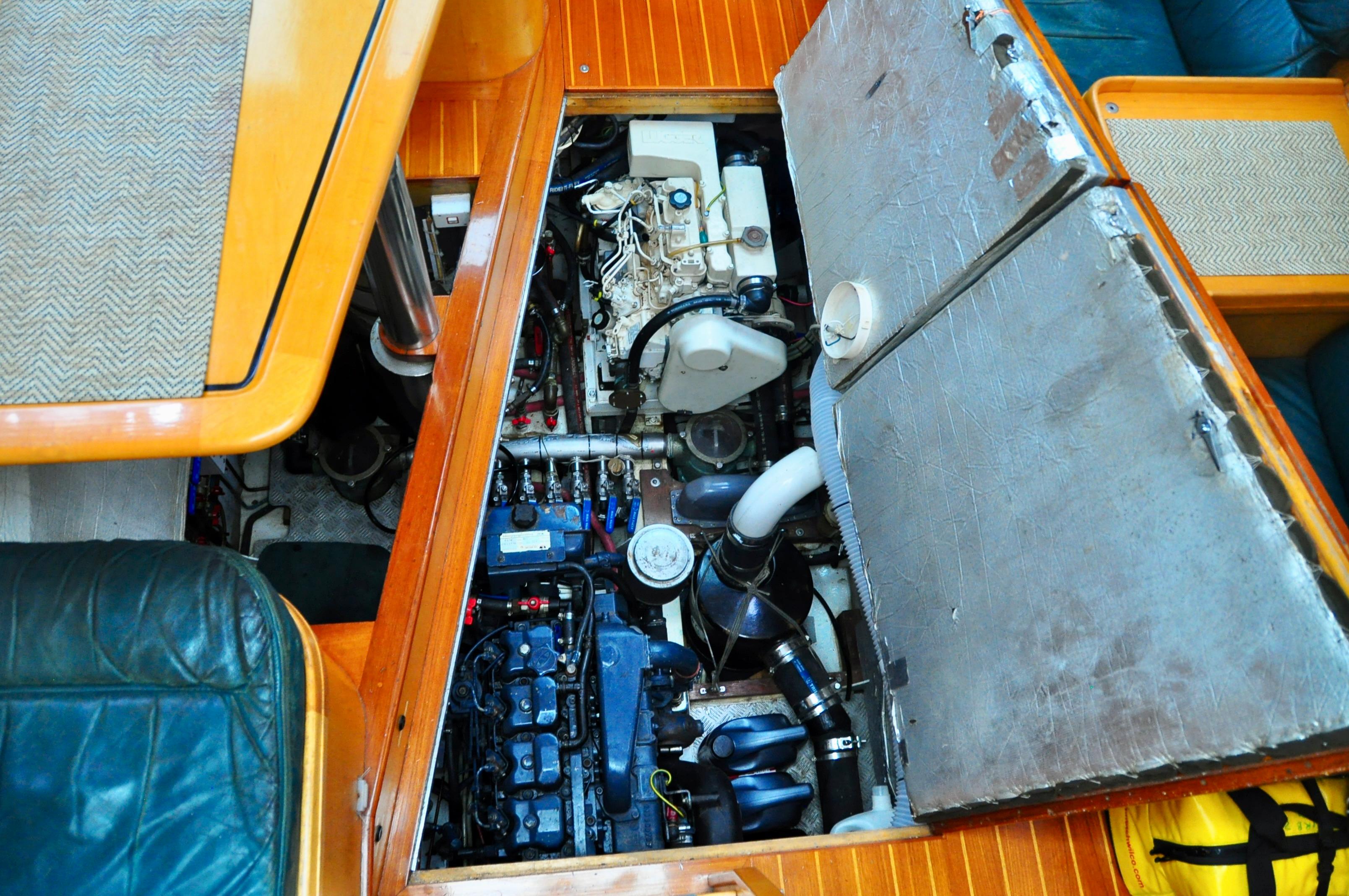

  • VM 494HT-10 136 Hp turbocharged diesel main engine with 3800 hours

  • Side Power Sleipner 7 Hp 24V Bow Thruster. Control on steering pedestal

  • 1.5" Stainless steel shaft

  • Dripless shaft seal

  • Thorndon custom composite shaft bearings

  • Polyflex Shaft Coupler

  • Hydraulic Shaft Brake for autofeathering propeller

  • MaxProp 610.83 bronze self feathering propeller

  • Dual Racor fuel filters for main engine. Third Racor for the Generator

  • Aqualift muffler and exhaust system

  • Oil change pump

  • 500 gallon fuel capacity in 2 keel tanks and two bilge tanks and 50 gallon day tank

Sails and Rigging Details
  • Custom Aluminum Mast with double spreaders

  • Dyform 1 x 19 Standing Rigging with additional fore and aft baby stays

  • LeisureFurl In-Boom roller furling mainsail system

  • Full battened (5) mainsail with reefing control led to cockpit

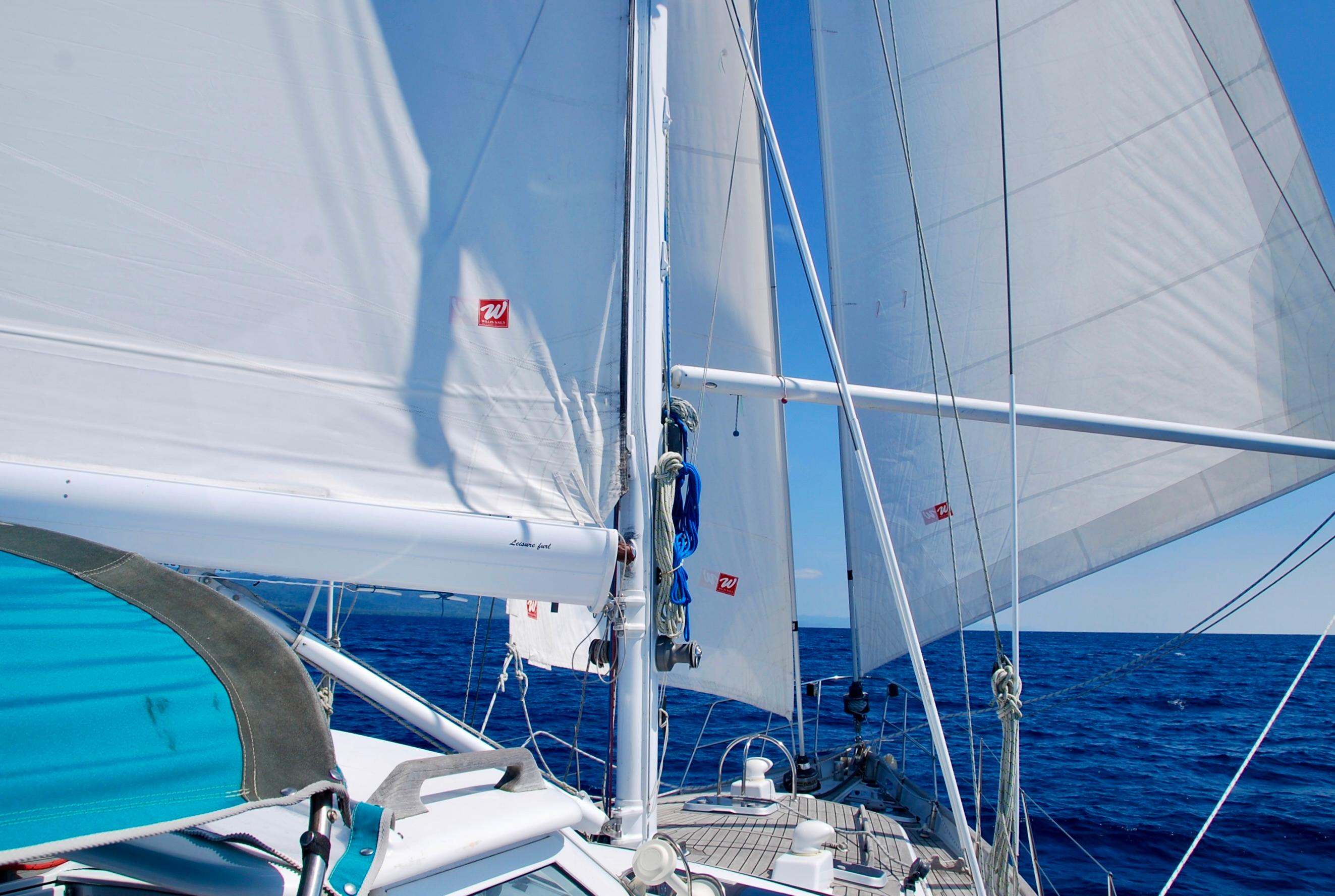

  • 135% Roller Furling Genoa on Furlex Roller Furler

  • 80% Roller Furling Staysail on Furlex Roller Furler

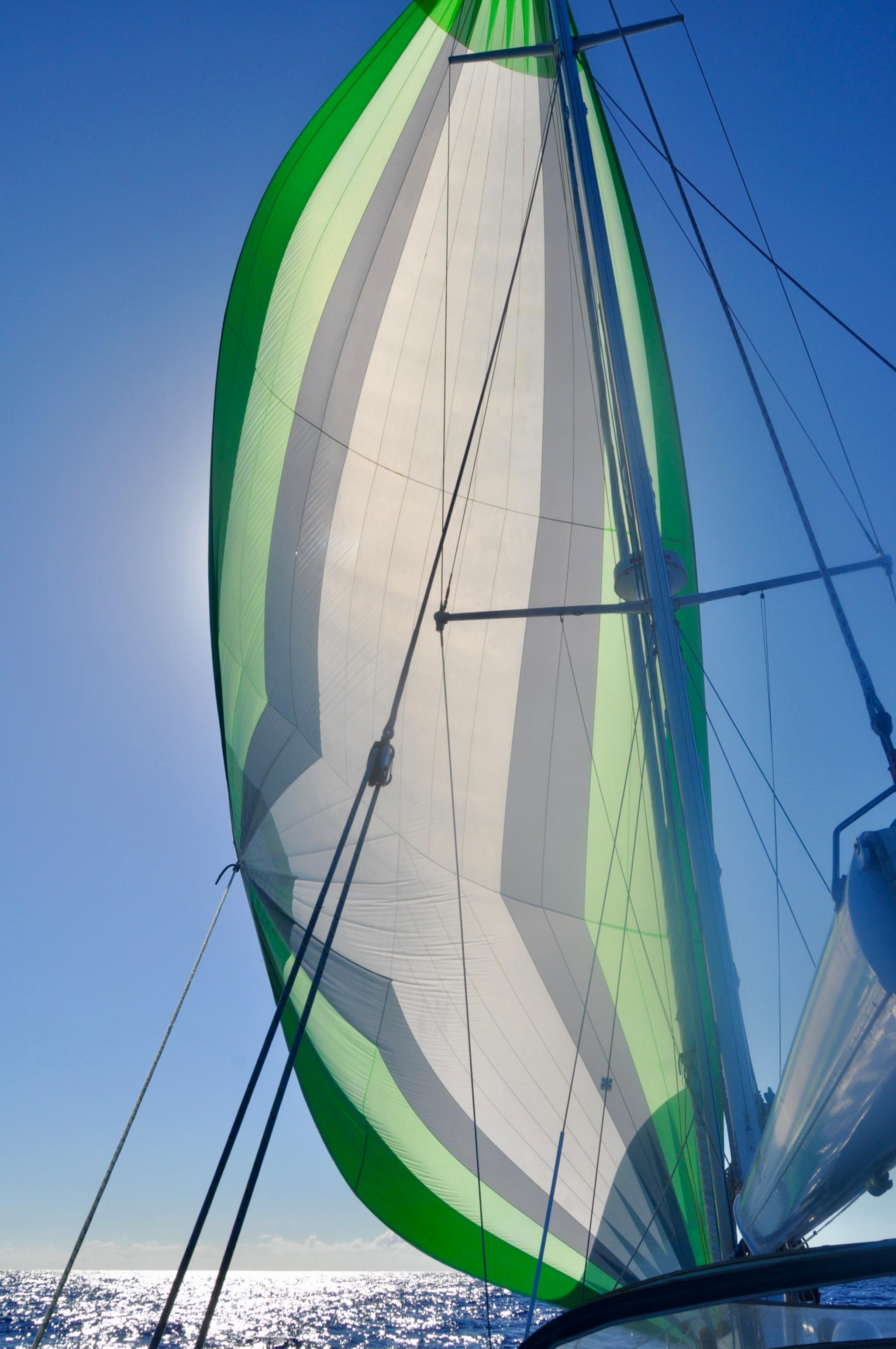

  • 1800 Sq Ft 1.5 oz multi colored cruising spinnaker

  • Two Spectra Spinnaker halyards external to the mast using masthead turning blocks.

  • Spectra running backstays with 2 to 1 tensioning blocks

  • Rigid Boom Vang with downhaul system led to cockpit

  • 2 Lewmar # 64 self-tailing primary winches in cockpit

  • 2 Lewmar # 48 self-tailing cockpit winches in cockpit

  • 1 Lewmar # 48 electric power self-tailing in cockpit for all sail controls

  • 2 Lewmar # 48 self-tailing winches on mast

Safety and Hull Details
  • 4 Watertight Compartments built into hull

  • Deck stepped mast with compression post and ring frames to pick up all mast, stanchion

    and keel loads

  • Crash frames within hull circumferentially at the waterline and half frame at bow.

  • Schedule 80 steel pipe at keel leading edge for collision protection

  • Stainless steel partial rudder skeg with sacrificial lower half of rudder blade

  • GME Aquastat 406MHz EPIRB w/ GPS

  • 3 Fire extinguishers

  • Tri-Color sailing light / anchor light / strobe light

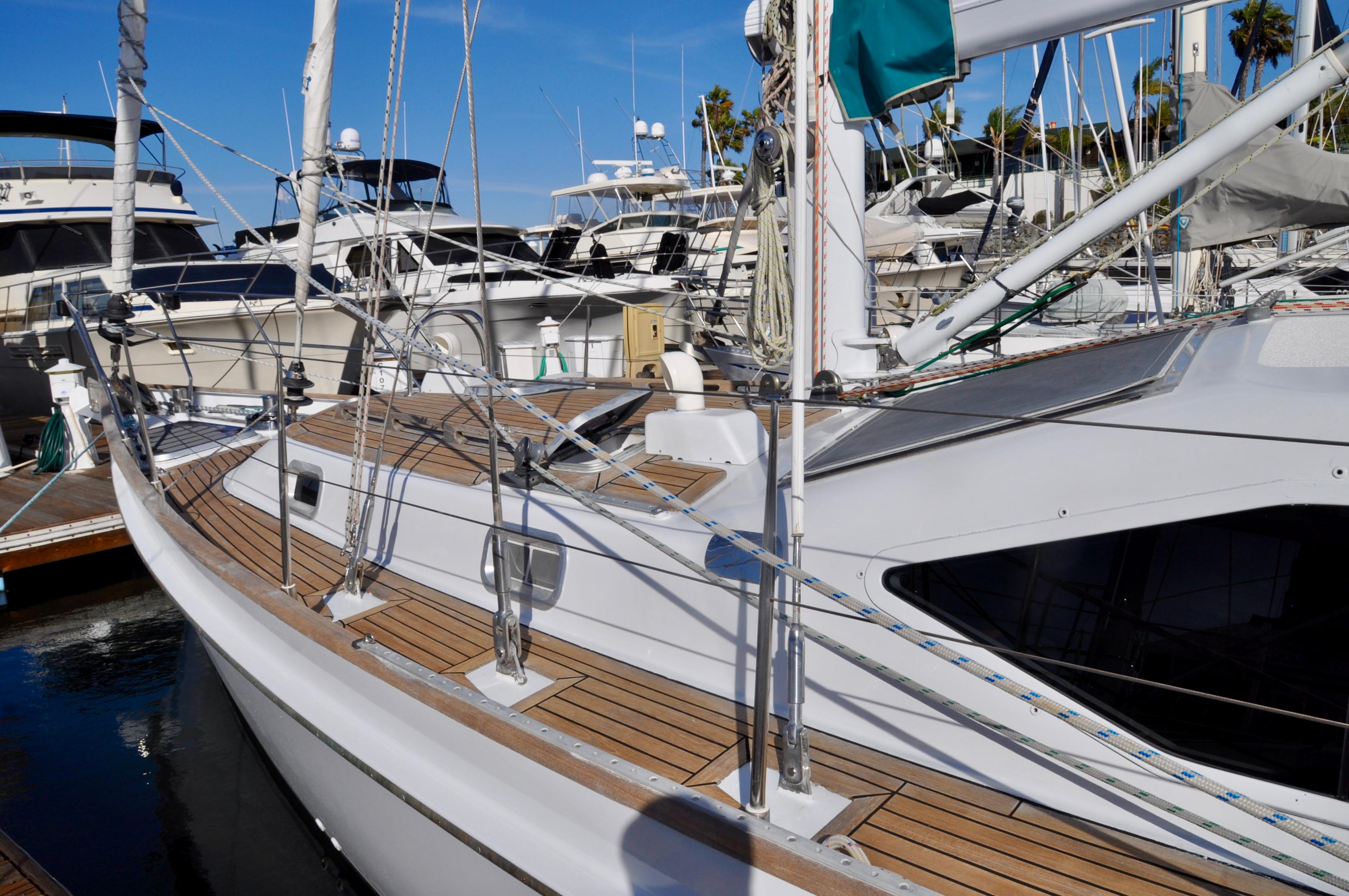

  • Double Lifelines on 32" high stainless steel stanchions with stainless steel bow and

    stern pulpits

  • Stainless steels hand holds in/out of companionway door, along top of pilothouse and

    along cabin top

  • 4 automatic bilge pumps with alarms

  • 1 Whale manual bilge pump

  • XINTEX S-2A Propane detector with 2 sensors

  • Sunspot 2 million candlepower 12v hand held spot light

  • Carbon monoxide detector/alarm

  • 3 battery powered smoke alarms

  • Air Horn

  • Red courtesy Night Lights throughout the yacht

  • Night lighting in galley and forward head

    Additional

Steering System
  • Hydraulic steering with 48" wheel

  • Raymarine 100 Autopilot computer driving dual electric hydraulic pumps and dual

    rams, Systems are duplicated and can be swapped underway using valves in the event of autopilot hydraulic or electrical failure. Controls for autopilot in cockpit and nav station in saloon

  • Skeg hung stainless steel rudder blade with sacrificial lower 30% in case of impact

  • Custom tiller emergency steering

Ground Tackle
  • Rocna 55 Lb anchor with 300' of 3/8" HT galvanized chain

  • Spare Fortress anchor with 30' of HT galvanized chain and 300' of 3/4" rode

  • Muir VRC2500 Electric Windlasses with controls at bow, cockpit and forward berth

  • Articulated stainless steel bow roller fittings

  • Foredeck Bollard and chain harnass

  • Chain deck rings and chain hooks

  • Snubber

  • Salt Water anchor / deck wash down system

Tender and Dive Equipment Included
  • Highfield 12' RIB dinghy with launching wheels

  • Mercury 15 hp outboard engine

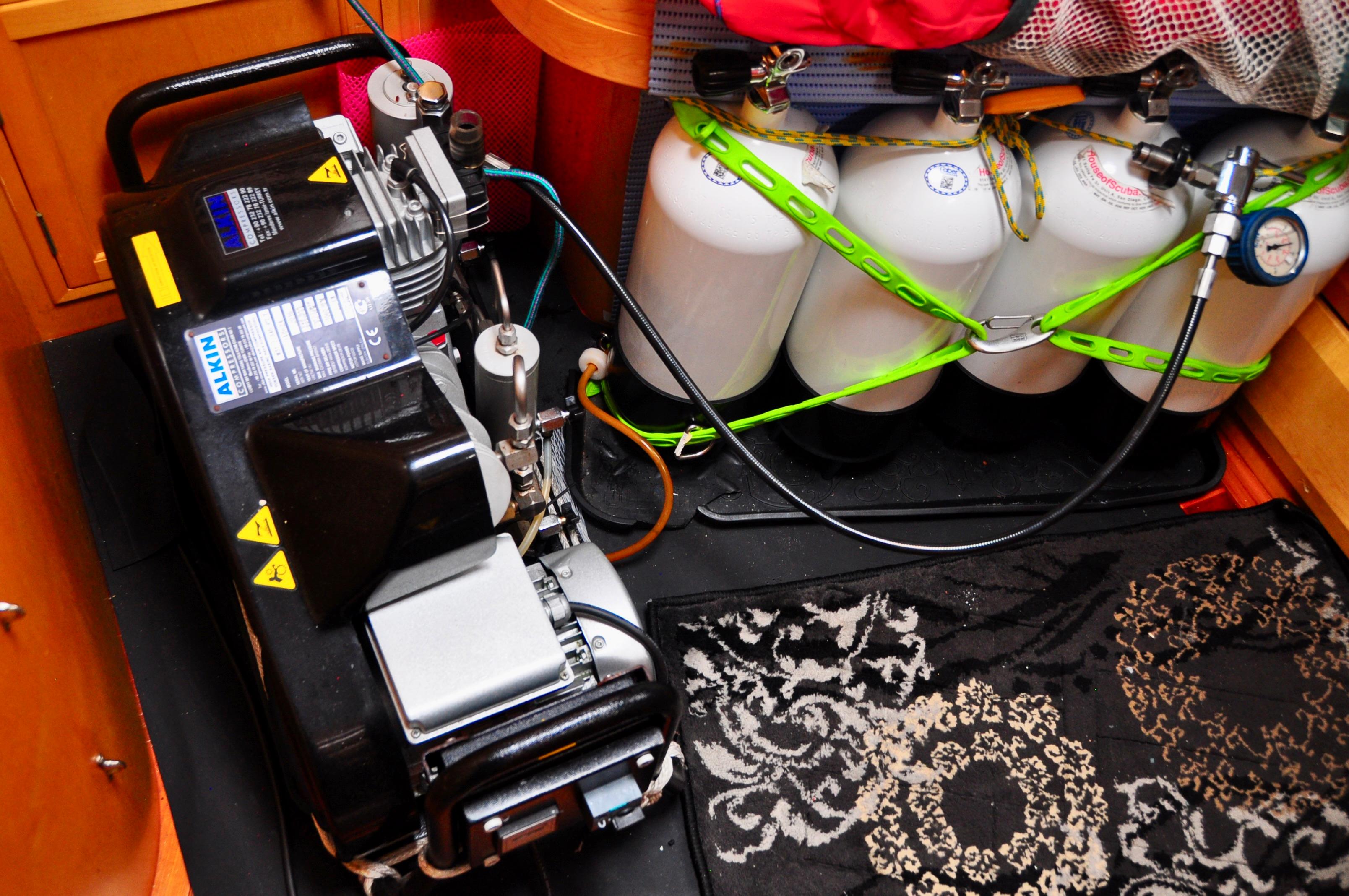

  • Alkin 2.5hp electric air compressor continuously rated for multiple fills to 3500psi

  • Dive gear with 4 bottles, regulators, BCDs, fins, weights, wetsuits.

Additional

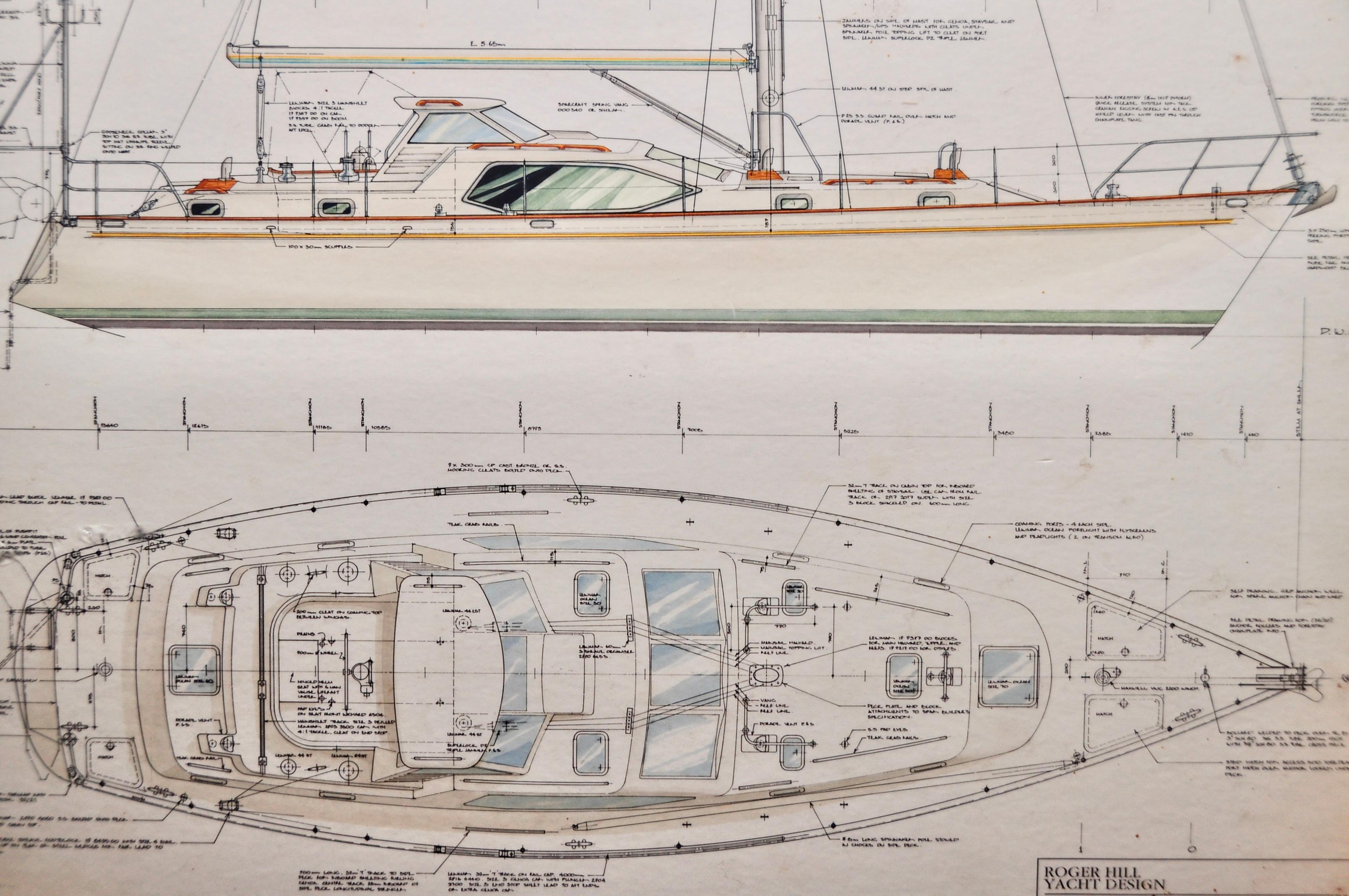

  • Design plans, build photos
  • US Customs importation documents

  • USCG documentation

  • AK registration

  • Complete set of paper manuals for all systems - organized by category in a dedicated filing cabinet between saloon captains chairs. This is duplicated digitally on boat computer

  • Wiring schematic for the boats electrical system

  • Huge collection of paper navigation charts for the Pacific and Indonesia.

  • Comprehensive library of cruising reference books.

  • Spares and tools for onboard systems

  • Integrated Cockpit Bimini with fold-down frame.

Docking Gear
  • 6 Polyform fenders

  • Assorted dock lines

  • 6 Stainless steel deck cleats

  • Custom stainless steel rollers on stern deck mooring

  • Bollard on foredeck

Additional Features

  • TV SET
  • WASHING MACHINE
  • WIND GENERATOR
  • BATTERY CHARGER
  • ELECTRIC BILGE PUMP
  • INVERTER
  • SWIMMING LADDER
  • TILLER
  • SOLAR PANEL
  • RADAR
  • WIND SPEED AND DIRECTION
  • CD PLAYER
  • SEA WATER PUMP
  • HEATING
  • STEERING WHEEL
  • AIR CONDITIONING
  • AIR COMPRESSOR
  • VHF
  • NAVIGATION CENTER
  • SPINNAKER POLE
  • BOW THRUSTER
  • DEPTHSOUNDER
  • MICROWAVE OVEN
  • RADIO
  • REFRIGERATOR
  • GENERATOR
  • COMPUTER
  • SHORE POWER INLET
  • ELECTRIC HEAD
  • GPS
  • FRESH WATER MAKER
  • OVEN
  • HOT WATER
  • TENDER
  • BIMINI TOP
  • AUTOPILOT
  • COMPASS
  • DEEP FREEZER
  • PLOTTER
  • DVD PLAYER

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Buyer should assume that items on the vessel at the time of viewing, but not specifically listed on this specification sheet, are not included with the sale of the yacht, and should instruct his agents, or his surveyors to investigate such details as the buyer desires validated. Buyer assumes responsibility to verify all speeds, consumptions, capacities and other measurements contained herein and otherwise provided, and agrees to instruct his surveyor to confirm such details prior to purchase. This vessel is subject to sale, price and inventory changes, and withdrawal from market without notice.
